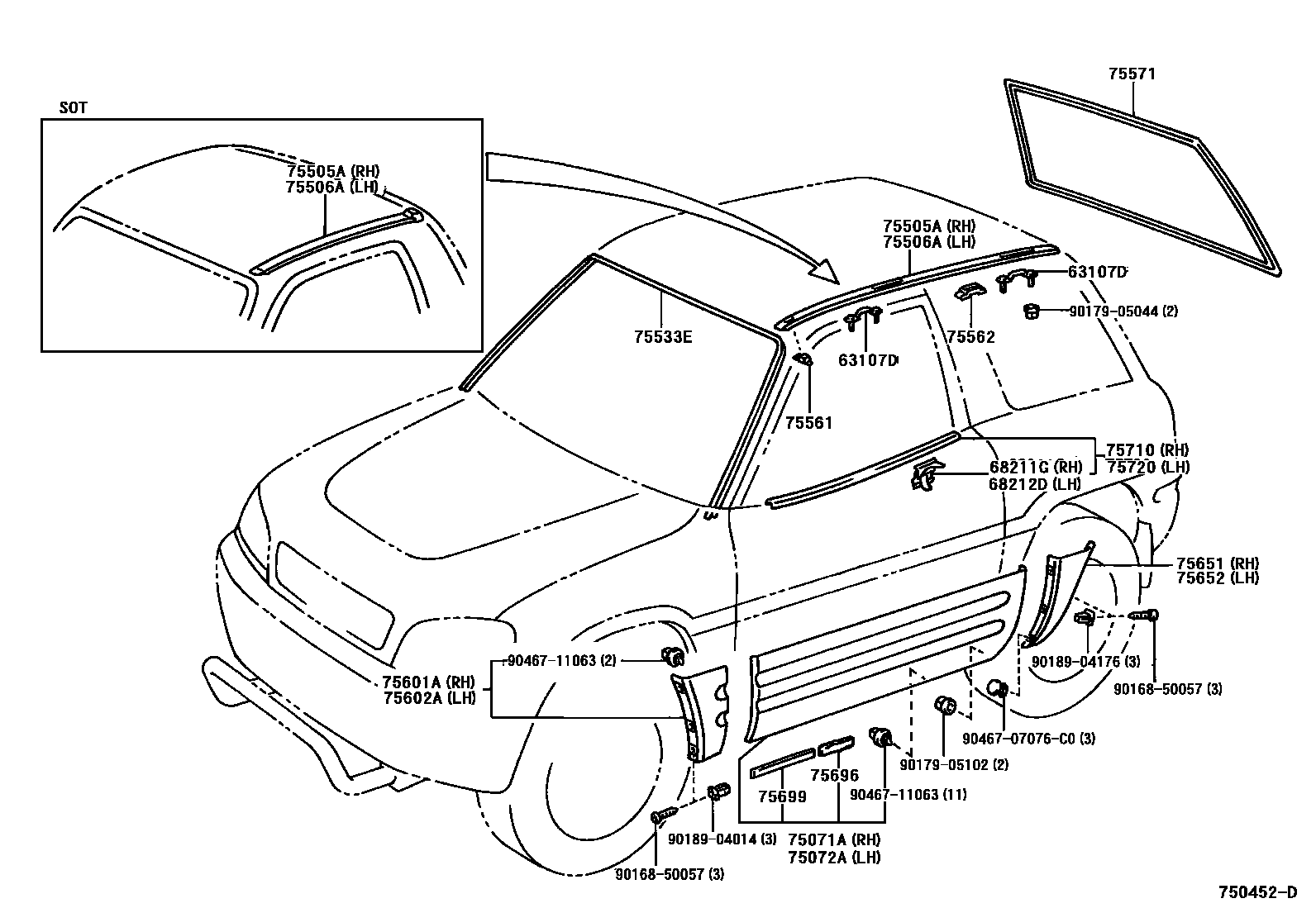

MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1��(���� ���� ��-��)

63107DBRACKET SUB-ASSY, ROOF MOULDING

main63107-42010×4iSXA1#199404-199602

main63107-42011×4iSXA1#..G,STD,X199602

68211GCLIP(DOOR BELT MOULDING RH)

main68212-16010×6iSXA10,15199404

68212DCLIP(DOOR BELT MOULDING LH)

main68212-16010×6iSXA10,15199404

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-42010iSXA10199404-199509

main75071-42011iSXA10,15199509-200005

main75071-42020iSXA11199504-199509

main75071-42021iSXA11,16199509-200005

main75071-42031-A0iSXA10,15..STD199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75071-42031-A1iSXA10,15199808-200005

WHITE,K83

main75071-42040-A0iSXA11,16..STD199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75071-42040-A1iSXA11,16199808-200005

WHITE,K83

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-42010iSXA10199404-199509

main75072-42011iSXA10,15199509-200005

main75072-42020iSXA11199504-199509

main75072-42021iSXA11,16199509-200005

main75072-42031-A0iSXA10,15199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75072-42031-A1iSXA10,15199808-200005

WHITE,K83

main75072-42040-A0iSXA16;SXA11..ATM..STD;SXA11..MTM..(STD,X)199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75072-42040-A1iSXA11,16199808-200005

WHITE,K83

75505AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH

main75505-42010iSXA10,15..G,STD,X199404

main75505-42020iSXA11,16199504

main75505-42030iSXA10..SOT199712

75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH

main75506-42010iSXA10,15..G,STD,X199404

main75506-42020iSXA11,16199504

main75506-42030iSXA10..SOT199712

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-42010iSXA1#199404-199702

main75533-42030iSXA1#199702

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42020×2iSXA10199404-199412

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-42020×12iSXA1#199404

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75573-42010iSXA1#..G,STD,X199404

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-42010iSXA1#199404-199509

main75601-42011iSXA1#..NOB199509-200005

main75601-42021-A0iSXA1#..NOB199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75601-42021-A1iSXA1#..NOB199808-200005

WHITE,K83

main75601-42900iSXA10,11..WIB199608-200005

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-42010iSXA1#199404-199509

main75602-42011iSXA1#..NOB199509-200005

main75602-42021-A0iSXA1#..NOB199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75602-42021-A1iSXA1#..NOB199808-200005

WHITE,K83

main75602-42900iSXA10,11..WIB199608-200005

75651MOULDING, QUARTER, OUTSIDE RH

main75605-42900iSXA10..WIB199608-200005

main75605-42901iSXA11..WIB199608-200005

main75605-42902iSXA10..WIB199808-200005

main75605-42903iSXA11..WIB199808-200005

main75651-42010iSXA10199404-199509

main75651-42011iSXA10,15..STD199808-200005

main75651-42020iSXA11,16..STD199504-200005

main75651-42031-A0iSXA10,15..NOB199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75651-42031-A1iSXA10,15..NOB199808-200005

WHITE,K83

main75651-42040-A0iSXA11,16..STD199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75651-42040-A1iSXA11,16..STD199808-200005

WHITE,K83

75652MOULDING, QUARTER, OUTSIDE LH

main75606-42900iSXA10..WIB199608-200005

main75606-42901iSXA11..WIB199608-200005

main75606-42902iSXA10..WIB199808-200005

main75606-42903iSXA11..WIB199808-200005

main75652-42010iSXA10199404-199509

main75652-42011iSXA10,15..NOB199509-200005

main75652-42020iSXA11,16..STD199504-200005

main75652-42031-A0iSXA10,15..NOB199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75652-42031-A1iSXA10,15..NOB199808-200005

WHITE,K83

main75652-42040-A0iSXA11,16..STD199709-199808

WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54

main75652-42040-A1iSXA11,16..STD199808-200005

WHITE,K83

75696PAD, BODY OUTSIDE MOULDING, NO.1

main75696-42010×12iSXA11,16199709-199903

main75697-42030×2iSXA11,16199608

75699PAD, BODY OUTSIDE MOULDING, NO.4

main75699-42010×4iSXA10,15199709-199906

main75699-42020×2iSXA11..WIB199709

main75699-42030×2iSXA10,15199906

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42010iSXA10,15199404

main75710-42020iSXA11,16199504

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42010iSXA10,15199404

main75720-42020iSXA11,16199504

9016850057

main90168-50057

9017905044

main90179-05044

9017905102

main90179-05102

9018904014

main90189-04014

9018904176

main90189-04176

9046707076C0

main90467-07076C0

9046711063

main90467-11063

26 parts on this diagram · 5 diagrams in section
