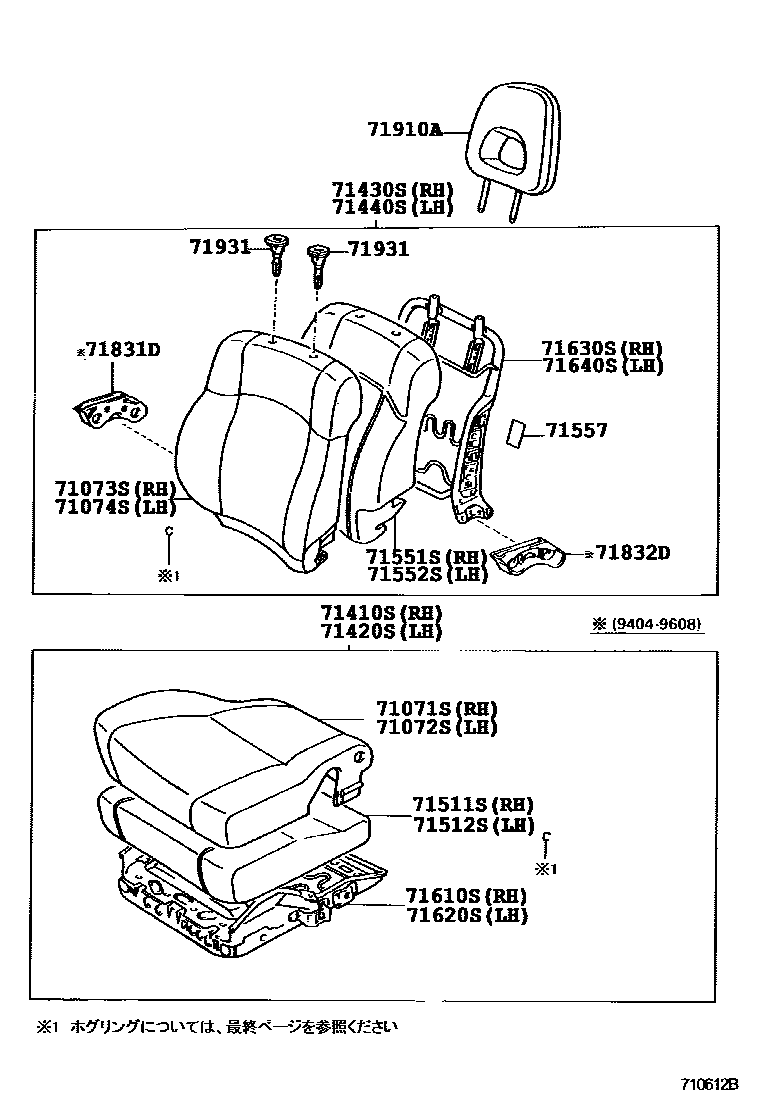

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1��-��� ������(��- ������) 0007 1��-��� ������(��- ������) 0008 1��-��� ������(��- ������) 0009 1��-��� ������(��- ������) 0010 1��-��� ������(���-� ������) 0011 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-42010-B0iSXA10199404-199608

BLUISH GRAY,TRIM1#

main71071-42030-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

main71071-42030-B1iSXA11199509-199603

main71071-42030-C0iSXA11199604-199607

main71071-42050iSXA1#199603-199608

main71071-42060-B0iSXA10199509-199603

main71071-42061-C0iSXA10199604-199607

main71071-42062-C1iSXA10..STD199608-199611

main71071-42070iSXA1#199603-199608

main71071-42080-C0iSXA1#..STD199612-199709

main71071-42110-B0iSXA10..STD199608-199709

BLUISH GRAY,TRIM13

main71071-42110-B1iSXA1#..G199608-199709

BLUISH GRAY,TRIM14

main71071-42110-B2iSXA10,15..SOT,STD,X199709-199808

SHADOW GRAY,TRIM10

main71071-42110-B4iSXA10,11..G199709-199710

SHADOW GRAY,TRIM1#

main71071-42111-B8iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10

main71071-42111-B9iSXA1#199808-200005

SHADOW GRAY,TRIM11

main71071-42130-B0iSXA11..STD199608-199709

BLUISH GRAY,TRIM15

main71071-42130-C0iSXA11..STD199608-199611

main71071-42131-B2iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM10

main71071-42131-B4iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM12

main71071-42160iSXA1#..STD199608-200005

main71071-42170iSXA1#..STD199608-199709

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-42010-B0iSXA10199404-199608

BLUISH GRAY,TRIM1#

main71071-42030-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

main71071-42030-B1iSXA11199509-199603

main71071-42030-C0iSXA11199604-199607

main71071-42050iSXA10199503-199603

main71071-42060-B0iSXA10199509-199603

main71071-42061-C0iSXA10199604-199607

main71071-42062-C1iSXA10..STD199608-199611

main71071-42070iSXA1#199603-199608

main71071-42080-C0iSXA1#..STD199612-199709

main71071-42110-B0iSXA10..STD199608-199709

BLUISH GRAY,TRIM13

main71071-42110-B1iSXA1#..G199608-199709

BLUISH GRAY,TRIM14

main71071-42110-B2iSXA10,15..SOT,STD,X199709-199808

SHADOW GRAY,TRIM10

main71071-42110-B4iSXA11..WIB;SXA10,15..G,STD,X199710-199808

SHADOW GRAY,TRIM11

main71071-42111-B8iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10

main71071-42111-B9iSXA1#199808-200005

SHADOW GRAY,TRIM11

main71071-42130-B0iSXA11..STD199608-199709

BLUISH GRAY,TRIM15

main71071-42130-C0iSXA11..STD199608-199611

main71071-42131-B2iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM10

main71071-42131-B4iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM12

main71071-42160iSXA1#..STD199608-200005

main71071-42170iSXA1#..STD199608-199709

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-42010-B0iSXA10199404-199608

BLUISH GRAY,TRIM1#

main71073-42030-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

main71073-42030-B1iSXA11199509-199603

main71073-42030-C0iSXA11199604-199607

main71073-42050-B1iSXA10199603-199608

main71073-42050-E0iSXA10199603-199608

main71073-42050-E1iSXA10199603-199608

main71073-42050-F0iSXA10199603-199608

main71073-42050-G0iSXA10199603-199608

main71073-42050-G1iSXA10199603-199608

main71073-42050-J0iSXA10199503-199603

main71073-42050-K0iSXA10199503-199603

main71073-42050-K1iSXA10199603-199608

main71073-42060-B0iSXA10199509-199603

main71073-42061-C0iSXA10199604-199607

main71073-42062-C1iSXA10..STD199608-199611

main71073-42070iSXA10199603-199608

main71073-42080iSXA11199603-199608

main71073-42090-B0iSXA11199603-199608

main71073-42090-C0iSXA11199603-199608

main71073-42090-D0iSXA11199603-199608

main71073-42090-E0iSXA11199603-199608

main71073-42090-F0iSXA11199603-199608

main71073-42090-G0iSXA11199603-199608

main71073-42090-G1iSXA11199603-199608

main71073-42090-J0iSXA11199603-199608

main71073-42090-K0iSXA11199603-199608

main71073-42090-K1iSXA11199603-199608

main71073-42110-B0iSXA10..STD199608-199709

BLUISH GRAY,TRIM13

main71073-42110-B1iSXA10..G199608-199709

BLUISH GRAY,TRIM14

main71073-42110-B2iSXA10,15..SOT,STD,X199709-199808

SHADOW GRAY,TRIM10

main71073-42110-B4iSXA10,15..G,STD,X199710-199808

SHADOW GRAY,TRIM11

main71073-42111-B6iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10

main71073-42111-B7iSXA10,15199808-200005

SHADOW GRAY,TRIM11

main71073-42130-B0iSXA11..STD199608-199709

BLUISH GRAY,TRIM15

main71073-42130-C0iSXA11..STD199608-199611

main71073-42131-B2iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM10

main71073-42131-B4iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM12

main71073-42140-B0iSXA11..G199608-199709

BLUISH GRAY,TRIM1#

main71073-42140-B1iSXA11..WIB199709-199808

SHADOW GRAY,TRIM1#

main71073-42141-B4iSXA11,16199808-200005

SHADOW GRAY,TRIM11

main71073-42160-B0iSXA10,15..STD199709-200005

main71073-42160-C0iSXA10..STD199608-199709

main71073-42160-D0iSXA10..STD199608-199709

main71073-42160-E0iSXA10,15..STD199709-200005

main71073-42160-F0iSXA10,15..STD199709-200005

main71073-42160-G0iSXA10..STD199608-199709

main71073-42160-G1iSXA10..STD199608-199709

main71073-42160-J0iSXA10..STD199608-199709

main71073-42160-K0iSXA10..STD199608-199709

main71073-42160-K1iSXA10..STD199608-199709

main71073-42170iSXA10..STD199608-199709

main71073-42180-B0iSXA11,16..STD199709-200005

main71073-42180-C0iSXA11..STD199608-199709

main71073-42180-D0iSXA11..STD199608-199709

main71073-42180-E0iSXA11,16..STD199709-200005

main71073-42180-F0iSXA11..STD199608-199709

main71073-42180-G0iSXA11,16..STD199709-200005

main71073-42180-G1iSXA11,16..STD199709-199808

main71073-42180-J0iSXA11,16..STD199709-200005

main71073-42180-K0iSXA11..STD199608-199709

main71073-42180-K1iSXA11,16..STD199709-200005

main71073-42190iSXA11..STD199608-199709

main71073-42200-C0iSXA10..STD199612-199709

main71073-42210-C0iSXA11..STD199612-199709

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-42010-B0iSXA10199404-199608

BLUISH GRAY,TRIM1#

main71073-42030-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

main71073-42030-B1iSXA11199509-199603

main71073-42030-C0iSXA11199604-199607

main71073-42050-B1iSXA10199603-199608

main71073-42050-E0iSXA10199603-199608

main71073-42050-E1iSXA10199603-199608

main71073-42050-F0iSXA10199603-199608

main71073-42050-G0iSXA10199503-199603

main71073-42050-G1iSXA10199603-199608

main71073-42050-J0iSXA10199503-199603

main71073-42050-K0iSXA10199503-199603

main71073-42050-K1iSXA10199603-199608

main71073-42060-B0iSXA10199509-199603

main71073-42061-C0iSXA10199604-199607

main71073-42062-C1iSXA10..STD199608-199611

main71073-42070iSXA10199603-199608

main71073-42080iSXA11199603-199608

main71073-42090-B0iSXA11199603-199608

main71073-42090-C0iSXA11199603-199608

main71073-42090-D0iSXA11199603-199608

main71073-42090-E0iSXA11199603-199608

main71073-42090-F0iSXA11199603-199608

main71073-42090-G0iSXA11199603-199608

main71073-42090-G1iSXA11199603-199608

main71073-42090-J0iSXA11199603-199608

main71073-42090-K0iSXA11199603-199608

main71073-42090-K1iSXA11199603-199608

main71073-42110-B0iSXA10..STD199608-199709

BLUISH GRAY,TRIM13

main71073-42110-B1iSXA10..G199608-199709

BLUISH GRAY,TRIM14

main71073-42110-B2iSXA10,15..SOT,STD,X199709-199808

SHADOW GRAY,TRIM10

main71073-42110-B4iSXA10..G199709-199710

SHADOW GRAY,TRIM1#

main71073-42111-B6iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10

main71073-42111-B7iSXA10,15199808-200005

SHADOW GRAY,TRIM11

main71073-42130-B0iSXA11..STD199608-199709

BLUISH GRAY,TRIM15

main71073-42130-C0iSXA11..STD199608-199611

main71073-42131-B2iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM10

main71073-42131-B4iSXA11,16..STD199709-200005

SHADOW GRAY,TRIM12

main71073-42140-B0iSXA11..G199608-199709

BLUISH GRAY,TRIM1#

main71073-42140-B1iSXA11..WIB199709-199808

SHADOW GRAY,TRIM1#

main71073-42141-B4iSXA11,16199808-200005

SHADOW GRAY,TRIM11

main71073-42160-B0iSXA10,15..STD199608-200005

main71073-42160-C0iSXA10,15..STD199608-200005

main71073-42160-D0iSXA10,15..STD199608-200005

main71073-42160-E0iSXA10,15..STD199608-200005

main71073-42160-F0iSXA10,15..STD199608-200005

main71073-42160-G0iSXA10,15..STD199608-200005

main71073-42160-G1iSXA10,15..STD199608-199808

main71073-42160-J0iSXA10,15..STD199608-200005

main71073-42160-K0iSXA10,15..STD199608-199808

main71073-42160-K1iSXA10,15..STD199608-200005

main71073-42180-B0iSXA11,16..STD199709-200005

main71073-42180-C0iSXA11,16..STD199709-200005

main71073-42180-D0iSXA11..STD199608-199709

main71073-42180-E0iSXA11..STD199608-199709

main71073-42180-F0iSXA11..STD199608-199709

main71073-42180-G0iSXA11,16..STD199709-200005

main71073-42180-G1iSXA11..STD199608-199709

main71073-42180-J0iSXA11,16..STD199709-200005

main71073-42180-K0iSXA11,16..STD199709-199808

main71073-42180-K1iSXA11,16..STD199709-200005

main71073-42190iSXA11..STD199608-199709

main71073-42200-C0iSXA10..STD199612-199709

main71073-42210-C0iSXA11..STD199612-199709

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-42010-B0iSXA10199404-199608

***,BLUISH GRAY,TRIM1#

main71410-42030-B0iSXA11199504-199608

***,BLUISH GRAY,TRIM1#

main71410-42062-C0iSXA10..STD199608-199611

main71410-42080-C0iSXA1#..STD199612-199709

main71410-42110-B0iSXA10..STD199608-199709

***,BLUISH GRAY,TRIM13

main71410-42110-B1iSXA1#..G199608-199709

***,BLUISH GRAY,TRIM14

main71410-42110-B2iSXA10,15..SOT,STD,X199709-199808

***,SHADOW GRAY,TRIM10

main71410-42110-B4iSXA10,11..G199709-199710

***,SHADOW GRAY,TRIM1#

main71410-42111-B8iSXA10,15..SOT,STD,X199808-200005

***,SHADOW GRAY,TRIM10

main71410-42111-B9iSXA1#199808-200005

***,SHADOW GRAY,TRIM11

main71410-42120-B0iSXA11..STD199608-199709

***,BLUISH GRAY,TRIM1#

main71410-42120-C0iSXA11..STD199608-199611

main71410-42121-B2iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM10

main71410-42121-B4iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM12

main71410-42140iSXA1#..STD199709-200005

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-42010-B0iSXA10199404-199608

***,BLUISH GRAY,TRIM1#

main71410-42030-B0iSXA11199504-199608

***,BLUISH GRAY,TRIM1#

main71410-42062-C0iSXA10..STD199608-199611

main71410-42080-C0iSXA1#..STD199612-199709

main71410-42110-B0iSXA10..STD199608-199709

***,BLUISH GRAY,TRIM13

main71410-42110-B1iSXA1#..G199608-199709

***,BLUISH GRAY,TRIM14

main71410-42110-B2iSXA10,15..SOT,STD,X199709-199808

***,SHADOW GRAY,TRIM10

main71410-42110-B4iSXA11..WIB;SXA10,15..G,STD,X199710-199808

***,SHADOW GRAY,TRIM11

main71410-42111-B8iSXA10,15..SOT,STD,X199808-200005

***,SHADOW GRAY,TRIM10

main71410-42111-B9iSXA1#199808-200005

***,SHADOW GRAY,TRIM11

main71410-42120-B0iSXA11..STD199608-199709

***,BLUISH GRAY,TRIM1#

main71410-42120-C0iSXA11..STD199608-199611

main71410-42121-B2iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM10

main71410-42121-B4iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM12

main71410-42140iSXA1#..STD199709-200005

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-42010-B0iSXA10199404-199608

***,BLUISH GRAY,TRIM1#

main71430-42030-B0iSXA11199504-199608

***,BLUISH GRAY,TRIM1#

main71430-42062-C0iSXA10..STD199608-199611

main71430-42110-B0iSXA10..STD199608-199709

***,BLUISH GRAY,TRIM13

main71430-42110-B1iSXA10..G199608-199709

***,BLUISH GRAY,TRIM14

main71430-42110-B2iSXA10,15..SOT,STD,X199709-199808

***,SHADOW GRAY,TRIM10

main71430-42110-B4iSXA10..G199709-199710

***,SHADOW GRAY,TRIM1#

main71430-42111-B6iSXA10,15..SOT,STD,X199808-200005

***,SHADOW GRAY,TRIM10

main71430-42111-B7iSXA10,15199808-200005

***,SHADOW GRAY,TRIM11

main71430-42120-B0iSXA11..STD199608-199709

***,BLUISH GRAY,TRIM1#

main71430-42120-C0iSXA11..STD199608-199611

main71430-42121-B2iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM10

main71430-42121-B4iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM12

main71430-42130-B0iSXA11..G199608-199709

***,BLUISH GRAY,TRIM1#

main71430-42130-B1iSXA11..WIB199709-199808

***,SHADOW GRAY,TRIM1#

main71430-42131-B4iSXA11,16199808-200005

***,SHADOW GRAY,TRIM11

main71430-42140-B0iSXA10,15..STD199709-200005

main71430-42140-C0iSXA10,15..STD199709-200005

main71430-42140-D0iSXA10,15..STD199709-200005

main71430-42140-E0iSXA10,15..STD199709-199904

main71430-42140-F0iSXA10,15..STD199709-200005

main71430-42140-G0iSXA10,15..STD199709-200005

main71430-42140-G1iSXA10,15..STD199709-199808

main71430-42140-J0iSXA10,15..STD199709-200005

main71430-42140-K0iSXA10,15..STD199709-199808

main71430-42140-K1iSXA10,15..STD199709-200005

main71430-42160-B3iSXA11,16..STD199709-200005

main71430-42160-C0iSXA11,16..STD199709-200005

main71430-42160-D0iSXA11,16..STD199709-200005

main71430-42160-E0iSXA11,16..STD199709-200005

main71430-42160-F0iSXA11,16..STD199709-200005

main71430-42160-G0iSXA11,16..STD199709-200005

main71430-42160-G1iSXA11,16..STD199709-199808

main71430-42160-J0iSXA11,16..STD199709-200005

main71430-42160-K0iSXA11,16..STD199709-199808

main71430-42160-K1iSXA11,16..STD199709-200005

main71430-42210-C0iSXA10..STD199612-199709

main71430-42220-C0iSXA11..STD199612-199709

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-42010-B0iSXA10199404-199608

***,BLUISH GRAY,TRIM1#

main71430-42030-B0iSXA11199504-199608

***,BLUISH GRAY,TRIM1#

main71430-42062-C0iSXA10..STD199608-199611

main71430-42110-B0iSXA10..STD199608-199709

***,BLUISH GRAY,TRIM13

main71430-42110-B1iSXA10..G199608-199709

***,BLUISH GRAY,TRIM14

main71430-42110-B2iSXA10,15..SOT,STD,X199709-199808

***,SHADOW GRAY,TRIM10

main71430-42110-B4iSXA10,15..G,STD,X199710-199808

***,SHADOW GRAY,TRIM11

main71430-42111-B6iSXA10,15..SOT,STD,X199808-200005

***,SHADOW GRAY,TRIM10

main71430-42111-B7iSXA10,15199808-200005

***,SHADOW GRAY,TRIM11

main71430-42120-B0iSXA11..STD199608-199709

***,BLUISH GRAY,TRIM1#

main71430-42120-C0iSXA11..STD199608-199611

main71430-42121-B2iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM10

main71430-42121-B4iSXA11,16..STD199709-200005

***,SHADOW GRAY,TRIM12

main71430-42130-B0iSXA11..G199608-199709

***,BLUISH GRAY,TRIM1#

main71430-42130-B1iSXA11..WIB199709-199808

***,SHADOW GRAY,TRIM1#

main71430-42131-B4iSXA11,16199808-200005

***,SHADOW GRAY,TRIM11

main71430-42140-B0iSXA10,15..STD199709-200005

main71430-42140-C0iSXA10,15..STD199709-200005

main71430-42140-D0iSXA10,15..STD199709-200005

main71430-42140-E0iSXA10,15..STD199709-199904

main71430-42140-F0iSXA10,15..STD199709-200005

main71430-42140-G0iSXA10,15..STD199709-200005

main71430-42140-G1iSXA10,15..STD199709-199808

main71430-42140-J0iSXA10,15..STD199709-200005

main71430-42140-K0iSXA10,15..STD199709-199808

main71430-42140-K1iSXA10,15..STD199709-200005

main71430-42160-B3iSXA11,16..STD199709-200005

main71430-42160-C0iSXA11,16..STD199709-200005

main71430-42160-D0iSXA11,16..STD199709-200005

main71430-42160-E0iSXA11,16..STD199709-200005

main71430-42160-F0iSXA11,16..STD199709-200005

main71430-42160-G0iSXA11,16..STD199709-200005

main71430-42160-G1iSXA11,16..STD199709-199808

main71430-42160-J0iSXA11,16..STD199709-200005

main71430-42160-K0iSXA11,16..STD199709-199808

main71430-42160-K1iSXA11,16..STD199709-200005

main71430-42210-C0iSXA10..STD199612-199709

main71430-42220-C0iSXA11..STD199612-199709

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-42010iSXA1#199404-199608

main71511-42020iSXA1#199608

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-42010iSXA1#199404-199608

main71511-42020iSXA1#199608

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-42010iSXA1#199404-199608

main71551-42020iSXA1#199608-199709

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-42010iSXA1#199404-199608

main71551-42020iSXA1#199608-199709

71557CLOTH, FRONT SEATBACK UNDER

main71557-42030×4iSXA1#199812

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-42010iSXA1#199404-199608

main71610-42020iSXA1#199608

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-42010iSXA1#199404-199608

main71610-42020iSXA1#199608

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-42010iSXA1#199404-199608

main71630-42020iSXA1#199608

main71630-42030iSXA1#..STD199612-199709

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-42010iSXA1#199404-199608

main71630-42020iSXA1#199608

main71630-42030iSXA1#..STD199612-199709

71831DCOVER, FRONT SEAT HINGE, RH

main71831-20030×2iSXA1#199404-199608

71832DCOVER, FRONT SEAT HINGE, LH

main71832-20010×2iSXA1#199404-199608

71910AHEADREST ASSY, FRONT SEAT

main71910-42010-B0×2iSXA1#199404-199608

BLUISH GRAY,TRIM1#

main71910-42011-B5×2iSXA1#199608-199709

SHADOW GRAY,TRIM1#

main71910-42030-C0×2iSXA10199503-199603

main71910-42030-D0×2iSXA10199503-199603

main71910-42030-F0×2iSXA10199503-199603

main71910-42030-G0×2iSXA10199503-199603

main71910-42030-K0×2iSXA1#199603-199608

main71910-42031-C0×2iSXA1#..STD199608-199709

main71910-42031-D0×2iSXA1#..STD199608-199709

main71910-42031-F0×2iSXA1#..STD199608-199709

main71910-42031-G0×2iSXA1#..STD199608-199709

main71910-42031-K0×2iSXA1#..STD199608-199709

main71910-42040-B0×2iSXA11,16..STD199709-200005

DARK CHARCOAL,TRIM12

main71910-42040-B1×2iSXA11,16..STD199709-199808

BLUISH GRAY,TRIM10

main71910-42040-C0×2iSXA10,15..STD; SXA11,16..STD199709-200005

BLACK,TRIM1#; BLACK,TRIM19

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-P0×2iSXA10199404-199501

main71930-32020-B0×2iSXA1#199501-199610

main71930-44010-B1×8iSXA10,15..STD; SXA10,15..STD,X; SXA11..WIB;SXA10..G,SOT199710-199808

main71931-10020-P0×2iSXA10199404-199501

main71931-12040-B0×2iSXA10,15..STD; SXA10,15..STD,X; SXA11..WIB;SXA10..G,SOT199710-199808

main71931-32020-B0×2iSXA1#199501-199608

21 parts on this diagram · 11 diagrams in section
