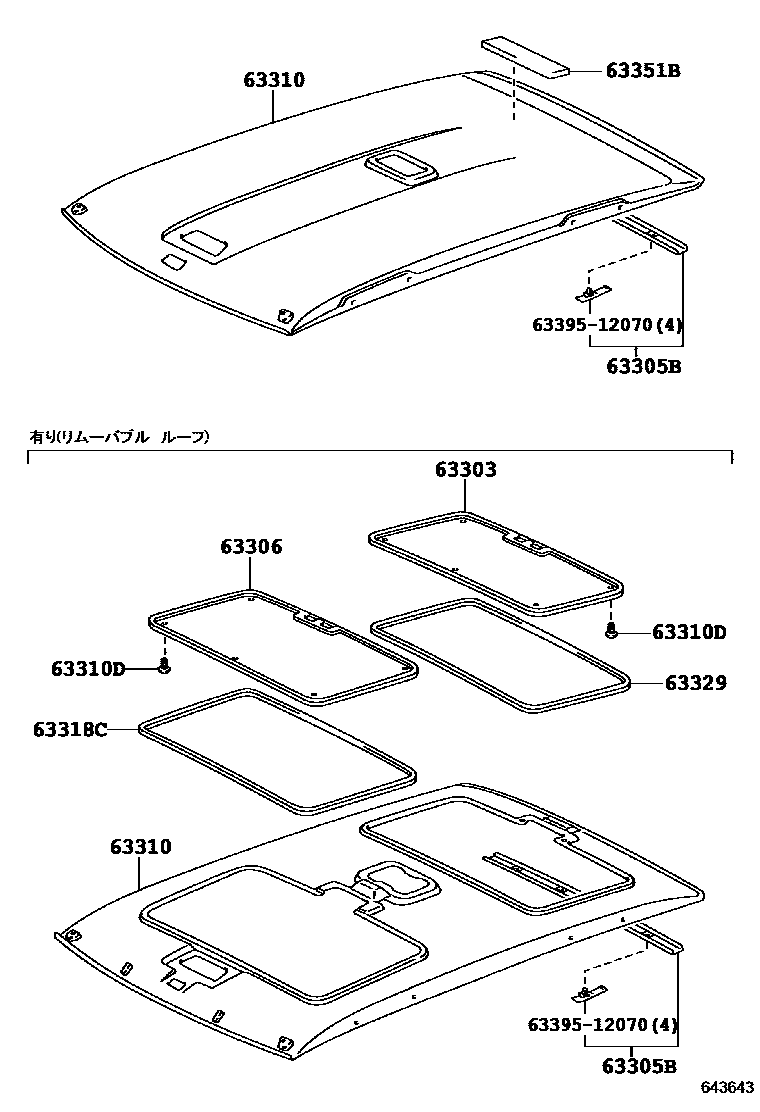

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63303TRIM SUB-ASSY, SUNSHADE, NO.2

main63303-42010-B0iSXA10199404-199709

LT. BLUISH GRAY,TRIM1#

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main63305-42010-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

main63305-42020-B0iSXA10..SOT199712-200005

SHADOW GRAY,TRIM1#

63306TRIM SUB-ASSY, SUNSHADE

main63306-32020-B1iSXA11199504-199709

BLUISH GRAY,TRIM1#

main63306-32020-B2iSXA11,16..STD199709-199808

LT. GRAY,TRIM10,12

main63306-42010-B0iSXA10199404-199709

LT. BLUISH GRAY,TRIM1#

main63306-42010-B2iSXA10..SOT199712-200005

LT. GRAY,TRIM1#

main63306-42020-B0iSXA10..X199712-199808

LT. GRAY,TRIM10,11

63310HEADLINING ASSY, ROOF

main63310-42010-B0iSXA10199404-199709

LT. BLUISH GRAY,TRIM1#

main63310-42010-B1iSXA10..X199712-199808

LT. GRAY,TRIM10,11

main63310-42020-B0iSXA10199404-199709

main63310-42030-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main63310-42030-B1iSXA11,16..STD199709-199808

LT. GRAY,TRIM10,12

main63310-42040-B0iSXA11199504-199709

main63310-42040-B1iSXA11,16..STD199709-199808

main63310-42050-B0iSXA10,15..STD199710-199808

main63310-42060-B0iSXA10..SOT199712-200005

LT. GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-06061-B0×10iSXA10199404-199511

LT.BLUISH GRAY,TRIM1#

main90467-10016-B1×10iSXA10199511-199709

LT.BLUISH GRAY,TRIM1#

main90467-10016-B3×5iSXA10..SOT199712

LT.GRAY,TRIM1#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-42010-B1iSXA10199404-199709

main63318-42020-B1iSXA10..G199709-200005

main63318-42030-B0iSXA10..SOT199712-200005

63329MOULDING, SUN ROOF OPENING TRIM, NO.2

main63329-42010-B1iSXA10199404-199709

LT. BLUISH GRAY,TRIM1#

63351BPAD, ROOF HEADLINING

main63351-42010iSXA1#..G,STD,X199404

6339512070CLIP, ROOF HEADLINING TRIM

main63395-12070

9 parts on this diagram · 4 diagrams in section
