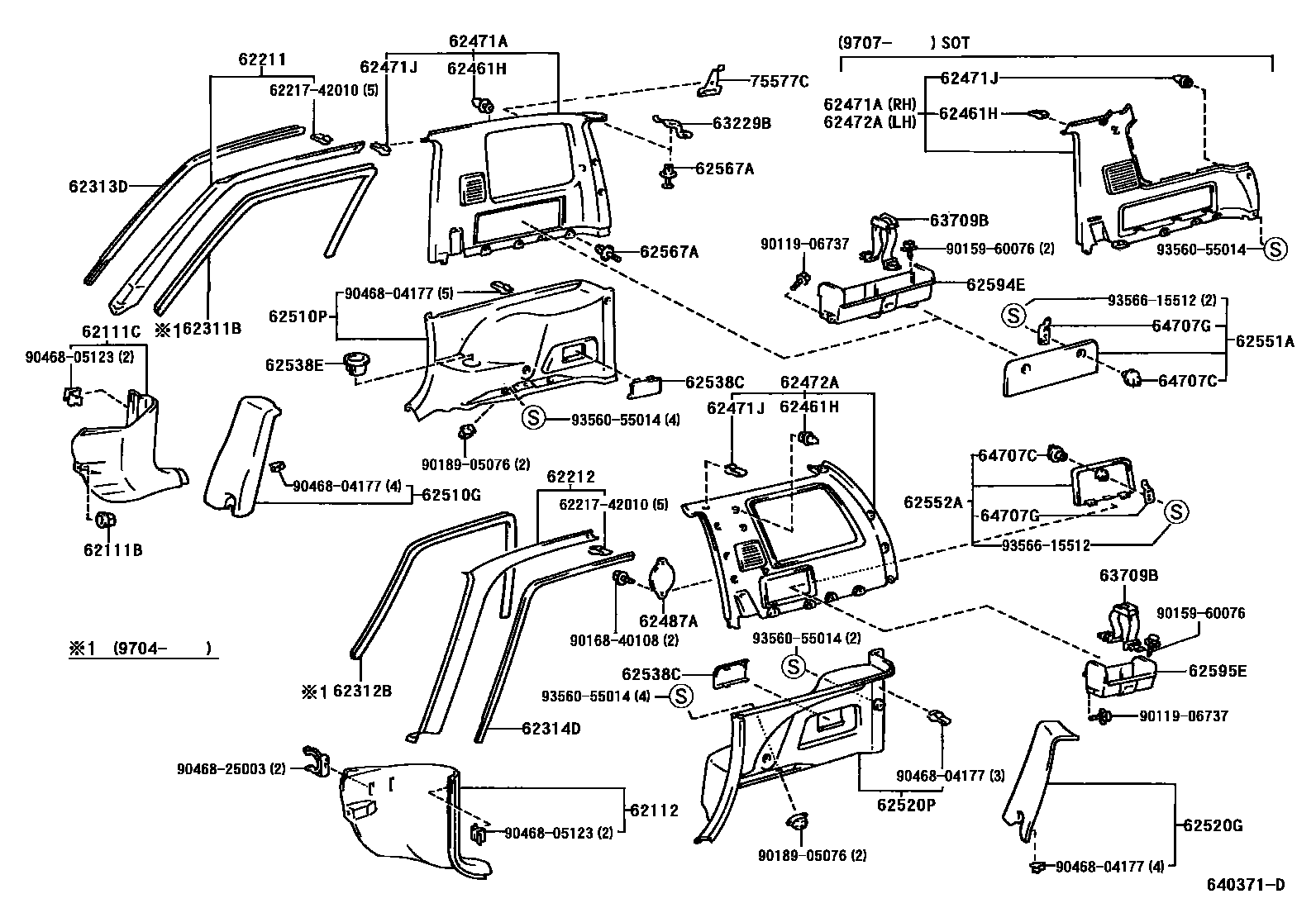

INSIDE TRIM BOARD

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iSXA1#199404

62111CBOARD, COWL SIDE TRIM, RH

main62111-42010-B0iSXA1#199404-199705

BLUISH GRAY,TRIM1#

sub62111-42011

main62111-42011-B0iSXA1#199705-199709

BLUISH GRAY,TRIM1#

sub62111-42011

main62111-42011-B1iSXA11..WIB;SXA10..G,SOT199709-199808

SHADOW GRAY,TRIM10,12,19

sub62111-42011

main62111-42011-B1iSXA11..WIB;SXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub62111-42011

main62111-42011-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub62111-42011

main62111-42011-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

sub62111-42011

main62111-42011-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub62111-42011

main62111-42011-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

sub62111-42011

62112BOARD, COWL SIDE TRIM, LH

main62112-42010-B0iSXA1#199404-199705

BLUISH GRAY,TRIM1#

sub62112-42011

main62112-42011-B0iSXA1#199705-199709

BLUISH GRAY,TRIM1#

sub62112-42011

main62112-42011-B1iSXA11..WIB;SXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub62112-42011

main62112-42011-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub62112-42011

main62112-42011-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

sub62112-42011

main62112-42011-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

sub62112-42011

main62112-42011-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub62112-42011

main62112-42011-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

sub62112-42011

62211GARNISH, FRONT PILLAR, RH

main62211-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62211-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62211-42010-B1iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

main62211-42010-B1iSXA10..SOT,X199712-200005

SHADOW GRAY,TRIM10,11

main62211-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main62211-42020-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main62211-42020-B1iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main62211-42020-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main62211-42020-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

62212GARNISH, FRONT PILLAR, LH

main62212-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62212-42010-B1iSXA10..G199712-200005

SHADOW GRAY,TRIM10,11

main62212-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62212-42010-B1iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

main62212-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main62212-42020-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main62212-42020-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main62212-42020-B1iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main62212-42020-B1iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42010-B1iSXA11199704-199709

BLUISH GRAY,TRIM1#

main62311-42011-B0iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

main62311-42011-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

main62311-42011-B0iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main62311-42020-B1iSXA10199707-199709

BLUISH GRAY,TRIM1#

main62311-42021-B0iSXA10..G199709-200005

SHADOW GRAY,TRIM1#

main62311-42021-B0iSXA10..G199712-200005

SHADOW GRAY,TRIM10,11

main62311-42021-B0iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62311-42021-B0iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42010-B1iSXA11199704-199709

BLUISH GRAY,TRIM1#

main62312-42011-B0iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

main62312-42011-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

main62312-42011-B0iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main62312-42020-B1iSXA10199707-199709

BLUISH GRAY,TRIM1#

main62312-42021-B0iSXA10..SOT,X199712-200005

SHADOW GRAY,TRIM10,11

main62312-42021-B0iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62312-42021-B0iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

main62312-42021-B0iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

62313DTRIM, FRONT DOOR OPENING, RH

main62313-42010-B0iSXA10199404-199707

BLUISH GRAY,TRIM1#

main62313-42020-B0iSXA11199504-199704

BLUISH GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-42010-B0iSXA10199404-199707

BLUISH GRAY,TRIM1#

main62314-42010-B0iSXA11199504-199704

BLUISH GRAY,TRIM1#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-08179iSXA11,16199709

main90467-09158iSXA11199404-199709

62471AGARNISH, ROOF SIDE, INNER RH

main62470-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62470-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main62470-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62470-42010-B1iSXA10..G199709-200005

SHADOW GRAY,TRIM1#

main62470-42010-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

main62470-42020-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main62470-42030-B0iSXA10..SOT199712-200005

SHADOW GRAY,TRIM1#

main62470-42040-B0iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

main62470-42040-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

main62470-42040-B0iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-42010iSXA11,16199805

main90468-05077iSXA1#199404-199805

62472AGARNISH, ROOF SIDE, INNER LH

main62480-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62480-42010-B1iSXA10..G199709-200005

SHADOW GRAY,TRIM1#

main62480-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62480-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main62480-42010-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

main62480-42020-B0iSXA11199504-199709

BLUISH GRAY,TRIM1#

main62480-42030-B0iSXA10..SOT199712-200005

SHADOW GRAY,TRIM1#

main62480-42040-B0iSXA11..WIB199709-200005

SHADOW GRAY,TRIM1#

main62480-42040-B0iSXA11,16..STD199808-200005

SHADOW GRAY,TRIM10,11,12

main62480-42040-B0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-42010iSXA10199404-199504

62510GTRIM ASSY, SIDE NO.1, RH

main62510-42020-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

sub62510-42020

main62510-42020-B1iSXA11,16..STD199808-200005

BLUISH GRAY,TRIM10,11

sub62510-42020

main62510-42020-B1iSXA11..WIB199608-200005

BLUISH GRAY,TRIM1#

sub62510-42020

main62510-42020-B2iSXA11,16..STD199709-200005

DARK CHARCOAL,TRIM1#

sub62510-42020

main62510-42020-C0iSXA11..STD199603-199709

BLACK,TRIM1#

sub62510-42020

main62510-42030-B1iSXA11..STD199603-199709

sub62510-42020

main62510-42030-B2iSXA11..STD199603-199709

sub62510-42020

main62510-42030-B3iSXA11..STD199603-199709

sub62510-42020

main62510-42030-B4iSXA11..STD199608-199709

sub62510-42020

main62510-42030-D0iSXA11..STD199603-199709

sub62510-42020

main62510-42030-D1iSXA11..STD199603-199709

sub62510-42020

main62510-42030-D2iSXA11..STD199603-199709

sub62510-42020

main62510-42030-E0iSXA11..STD199603-199709

sub62510-42020

main62510-42030-G0iSXA11..STD199603-199709

sub62510-42020

main62510-42030-G1iSXA11..STD199603-199709

sub62510-42020

main62510-42030-G2iSXA11..STD199603-199709

sub62510-42020

main62510-42030-J0iSXA11..STD199603-199709

sub62510-42020

main62510-42030-J1iSXA11..STD199603-199709

sub62510-42020

main62510-42030-K0iSXA11..STD199603-199709

sub62510-42020

main62510-42030-K1iSXA11..STD199603-199709

sub62510-42020

main62510-42030-K2iSXA11..STD199603-199709

sub62510-42020

main62510-42040-C0iSXA1#..STD199612-199709

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62510-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

main62510-42010-B1iSXA10..G199712-200005

SHADOW GRAY,TRIM10,11

main62510-42010-B1iSXA10..SOT,X199709-200005

SHADOW GRAY,TRIM1#

main62510-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

62520GTRIM ASSY, SIDE NO.1, LH

main62520-42020-B0iSXA11199504-199608

BLUISH GRAY,TRIM1#

sub62520-42020

main62520-42020-B1iSXA11,16199608-200005

BLUISH GRAY,TRIM1#

sub62520-42020

main62520-42020-B1iSXA11..WIB199808-200005

BLUISH GRAY,TRIM10,11

sub62520-42020

main62520-42020-B2iSXA11,16..STD199709-200005

DARK CHARCOAL,TRIM1#

sub62520-42020

main62520-42020-C0iSXA11..STD199603-199709

BLACK,TRIM1#

sub62520-42020

main62520-42030-B1iSXA11..STD199603-199709

sub62520-42020

main62520-42030-B2iSXA11..STD199603-199709

sub62520-42020

main62520-42030-B3iSXA11..STD199603-199709

sub62520-42020

main62520-42030-B4iSXA11..STD199608-199709

sub62520-42020

main62520-42030-D0iSXA11..STD199603-199709

sub62520-42020

main62520-42030-D1iSXA11..STD199603-199709

sub62520-42020

main62520-42030-D2iSXA11..STD199603-199709

sub62520-42020

main62520-42030-E0iSXA11..STD199603-199709

sub62520-42020

main62520-42030-G0iSXA11..STD199603-199709

sub62520-42020

main62520-42030-G1iSXA11..STD199603-199709

sub62520-42020

main62520-42030-G2iSXA11..STD199603-199709

sub62520-42020

main62520-42030-J0iSXA11..STD199603-199709

sub62520-42020

main62520-42030-J1iSXA11..STD199603-199709

sub62520-42020

main62520-42030-K0iSXA11..STD199603-199709

sub62520-42020

main62520-42030-K1iSXA11..STD199603-199709

sub62520-42020

main62520-42030-K2iSXA11..STD199603-199709

sub62520-42020

main62520-42040-C0iSXA1#..STD199612-199709

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

main62520-42010-B1iSXA10..SOT,X199712-200005

SHADOW GRAY,TRIM10,11

main62520-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

main62520-42010-B1iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

main62520-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

62538CCOVER, QUARTER TRIM, HOLE

main62538-42010-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

sub62538-42010

main62538-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub62538-42010

main62538-42010-B1iSXA11..WIB;SXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub62538-42010

main62538-42010-B1iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12,19

sub62538-42010

main62538-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub62538-42010

main62538-42010-B1iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

sub62538-42010

main62538-42010-B1iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12

sub62538-42010

62538ECOVER, QUARTER TRIM, HOLE

main55548-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

sub55548-42010

main55548-42010-B2iSXA10..G199710-200005

SHADOW GRAY,TRIM10,11,19

sub55548-42010

main55548-42010-B2iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub55548-42010

main55548-42010-B2iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub55548-42010

main55548-42010-B2iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

sub55548-42010

main55548-42010-D0iSXA10..STD199503-199709

RED,TRIM1#

sub55548-42010

main55548-42010-G0iSXA10..STD199503-199709

GREEN,TRIM1#

sub55548-42010

main55548-42010-K0iSXA10..STD199503-199709

PURPLE,TRIM1#

sub55548-42010

62551ACOVER, REAR SEAT SIDE, RH

main62551-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

sub62551-42010

main62551-42010-B1iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub62551-42010

main62551-42010-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

sub62551-42010

main62551-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub62551-42010

main62551-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub62551-42010

62552ACOVER, REAR SEAT SIDE, LH

main62552-42010-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

sub62552-42010

main62552-42010-B1iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub62552-42010

main62552-42010-B1iSXA10..X199712-200005

SHADOW GRAY,TRIM10,11

sub62552-42010

main62552-42010-B1iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub62552-42010

main62552-42010-B1iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub62552-42010

62567ACLIP(FOR QUARTER TRIM REAR LOWER COVER)

main90467-07076-B0iSXA10199404-199709

GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA10..G199710-200005

BLACK,TRIM10,11

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11199603-200005

BLACK,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11..G199608-199709

BLACK,TRIM1#,15

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11..G199608-199709

BLACK,TRIM1#,13

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11..G199608-199709

BLACK,TRIM14

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11,16..STD199709-199808

BLACK,TRIM10,12

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iSXA11..MTM..X199808-200005

BLACK,TRIM10,11,12

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA10..G199709-200005

SHADOW GRAY,TRIM11

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA10..SOT199712-199808

SHADOW GRAY,TRIM10

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA10,15..STD,X199710-200005

SHADOW GRAY,TRIM10,11

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA11,16..STD199709-199808

SHADOW GRAY,TRIM10,12

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA11..MTM..X199808-200005

SHADOW GRAY,TRIM10,11,12

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-P0iSXA11..MTM..X199709-200005

SHADOW GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

62594EPOCKET, QUARTER TRIM, RH

main62594-42010iSXA10,15..G,STD,X199404

main62594-42020iSXA10..SOT199712

62595EPOCKET, QUARTER TRIM, LH

main62595-42010iSXA10199404-199709

main62595-42020iSXA10,15199709

63229BBRACKET, ROOF HEADLINING, REAR

main63229-42010iSXA1#..G,STD,X199404

63709BBAND SUB-ASSY, ROOM RACK

main63709-42010iSXA10199404-199501

main63709-42011iSXA10,15199501

main63709-42020iSXA11,16199504

64707CKNOB, JACK COVER

main64769-90K00-B0iSXA10199404-199709

BLUISH GRAY,TRIM1#

sub64769-90K00

main64769-90K00-B2iSXA10,15..SOT,STD,X199808-200005

SHADOW GRAY,TRIM10,11,12

sub64769-90K00

main64769-90K00-B2iSXA10,15..STD199709-199710

SHADOW GRAY,TRIM10,19

sub64769-90K00

main64769-90K00-B2iSXA10..G,SOT199709-200005

SHADOW GRAY,TRIM1#

sub64769-90K00

main64769-90K00-B2iSXA10..G,SOT199709-199808

SHADOW GRAY,TRIM10,12,19

sub64769-90K00

main64769-90K00-B2iSXA10,15..STD199710-200005

SHADOW GRAY,TRIM10,11,19

sub64769-90K00

main64769-90K00-B2iSXA10..X199712-199808

SHADOW GRAY,TRIM10,11

sub64769-90K00

64707GSTOPPER, JACK COVER

main64768-60010iSXA10,15199404

75577CBRACKET, ROOF SIDE GARNISH

main75577-42010iSXA1#..G,STD,X199404

6221742010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-42010

9011906737

main90119-06737

9015960076

main90159-60076

9016840108

main90168-40108

9018905076

main90189-05076

9046804177

main90468-04177

9046805123

main90468-05123

9046825003

main90468-25003

9356055014

main93560-55014

9356615512

main93566-15512

40 parts on this diagram · 2 diagrams in section
