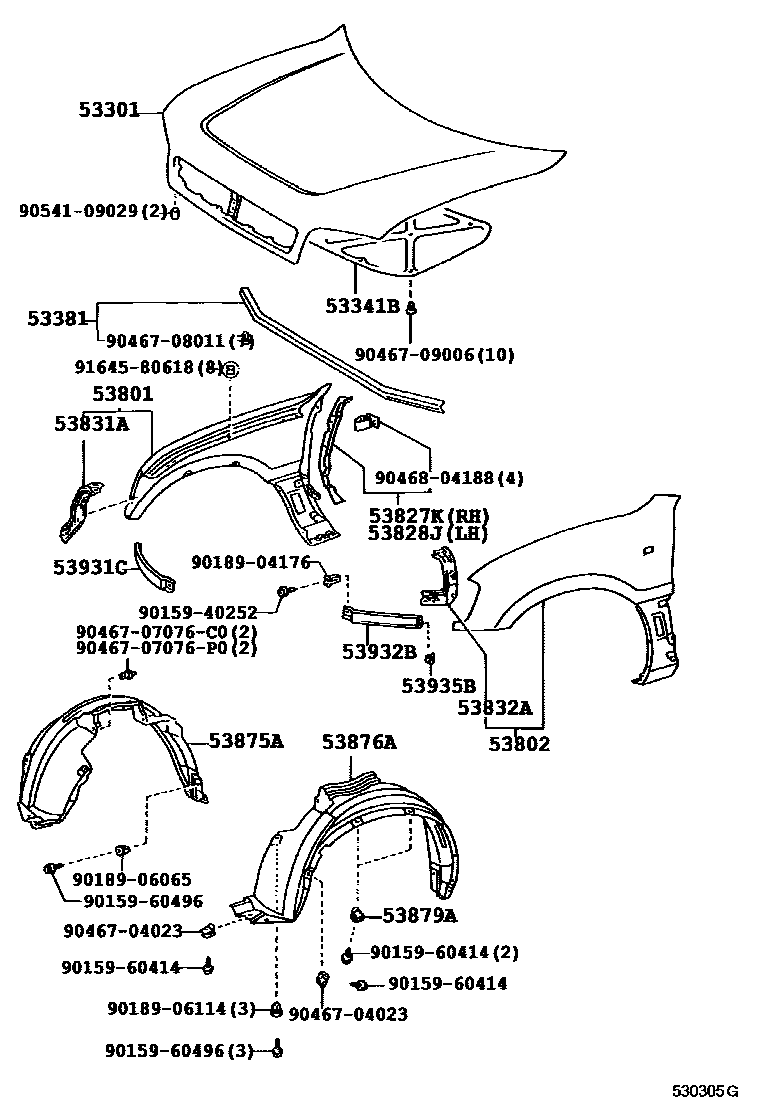

HOOD & FRONT FENDER

0001 1 0002 1���������

53301HOOD SUB-ASSY

main53301-42010iSXA1#199404-199506

main53301-42011iSXA1#199506-199510

main53301-42012iSXA1#199510

53341BINSULATOR, HOOD

main53341-42010iSXA10,11..G199808

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-42010iSXA1#199404

53801FENDER SUB-ASSY, FRONT RH

main53801-42010iSXA1#..NOB199404

main53801-42050iSXA10,11..WIB199608

53802FENDER SUB-ASSY, FRONT LH

main53802-42010iSXA1#..NOB199404

main53802-42050iSXA10,11..WIB199608

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42020iSXA1#199810

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42020iSXA1#199810

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-42010iSXA1#199404

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-42010iSXA1#199404

53875ALINER, FRONT FENDER, RH

main53875-42010iSXA1#199404-199605

main53875-42011iSXA1#199605-199706

main53875-42012iSXA1#199706

53876ALINER, FRONT FENDER, LH

main53876-42010iSXA1#199404-199605

main53876-42011iSXA1#199605-199706

main53876-42012iSXA1#199706

53879ARETAINER, FRONT FENDER LINER

main53879-14020×4iSXA1#199404

53931CPANEL, FRONT END

main53931-42010iSXA1#199404

53932BPANEL, FRONT END, LH

main53932-42010iSXA1#199404

53935BPROTECTOR, FRONT END PANEL

main53935-42010×2iSXA1#199404

9015940252

main90159-40252

9015960414

main90159-60414

9015960496

main90159-60496

9018904176

main90189-04176

9018906065

main90189-06065

9018906114

main90189-06114

9046704023

main90467-04023

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

9046708011

main90467-08011

9046709006

main90467-09006

9046804188

main90468-04188

9054109029

main90541-09029

9164580618

main91645-80618

29 parts on this diagram · 2 diagrams in section
