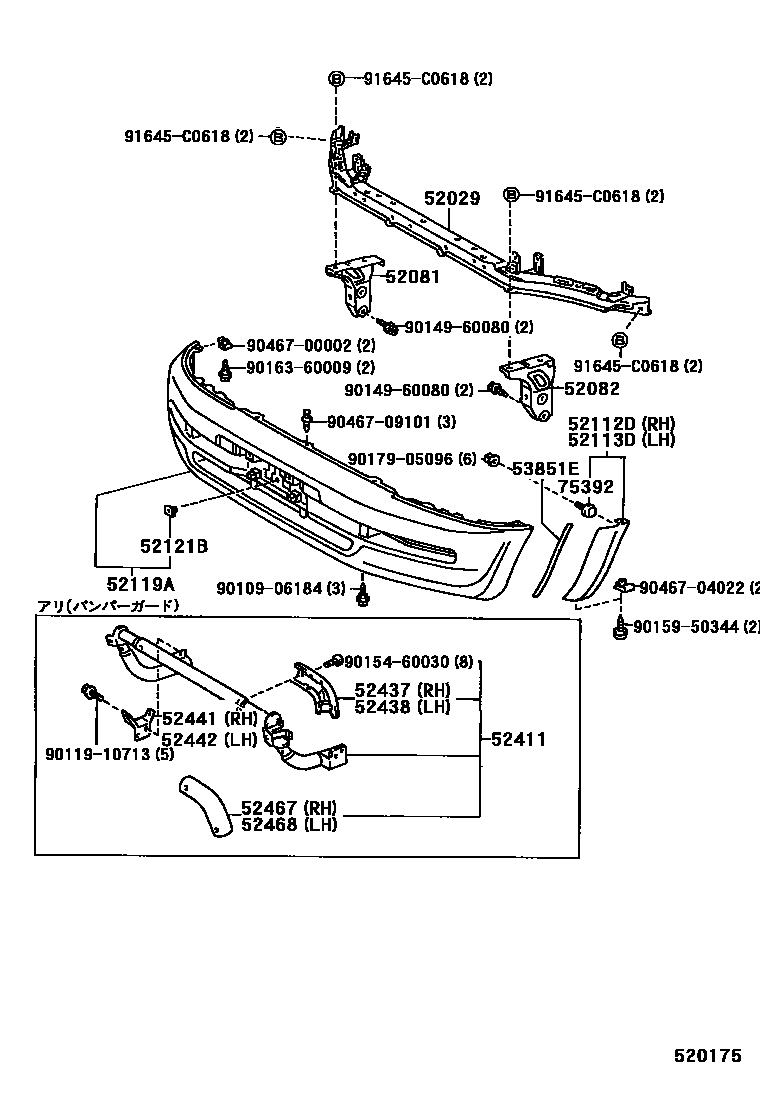

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52081STAY SUB-ASSY, FRONT BUMPER
52082STAY SUB-ASSY, FRONT BUMPER, LH
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
52119ACOVER, FRONT BUMPER
WHITE PM.,K18 ,K33 ,K41 ,K49 ,K54
MD. GRAY ME.,K59 ,K71 ,K95; MD. GRAY ME.,K62 ,K71 ,K95
SILVER ME.,KA0 ,KA2 ,K96 ,K97 ,K98; SILVER ME.,KA0 ,KA2 ,K96 ,K98; SILVER ME.,KA0 ,KA2 ,K98
WARM GRAY ME.,K64 ,K68
ME. GRAY ME.,K62; ME. GRAY ME.,K62 ,K71 ,K95
SILVER ME.,K96 ,K98; SILVER ME.,KA0 ,KA2 ,K96 ,K97 ,K98; SILVER ME.,KA0 ,KA2 ,K96 ,K98; SILVER ME.,KA0 ,KA2 ,K98
WARM GRAY ME.,K58 ,K64 ,K68; WARM GRAY ME.,K64 ,K68
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52441BASE, FRONT BUMPER GUARD, NO.1 RH
52442BASE, FRONT BUMPER GUARD, NO.1 LH
52467COVER, FRONT BUMPER GUARD, NO.2 RH
52468COVER, FRONT BUMPER GUARD, NO.2 LH
53851EPAD, FRONT WHEEL OPENING EXTENSION, NO.1
GRAY,K62 ,K96 ,K98; GRAY,KA0 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K97 ,K98; GRAY,KA0 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98; GRAY,KA0 ,KA2 ,K62 ,K71 ,K95 ,K98
GRAY,046 ,199 ,202 ,3J8 ,6N5 ,8K5; GRAY,199 ,202 ,3J8 ,6N5 ,8K4 ,8K5
BLACK,046 ,199 ,202 ,3J8 ,6P3 ,8K5 ,8L5; BLACK,199 ,202 ,3J8 ,6P3 ,8K5 ,8L5
75392RETAINER, OUTSIDE MOULDING
9010906184
main90109-06184
9011910713
main90119-10713
9014960080
main90149-60080
9015460030
main90154-60030
9015950344
main90159-50344
9016360009
main90163-60009
9017905096
main90179-05096
9046700002
main90467-00002
9046704022
main90467-04022
9046709101
main90467-09101
91645C0618
main91645-C0618
27 parts on this diagram · 3 diagrams in section
