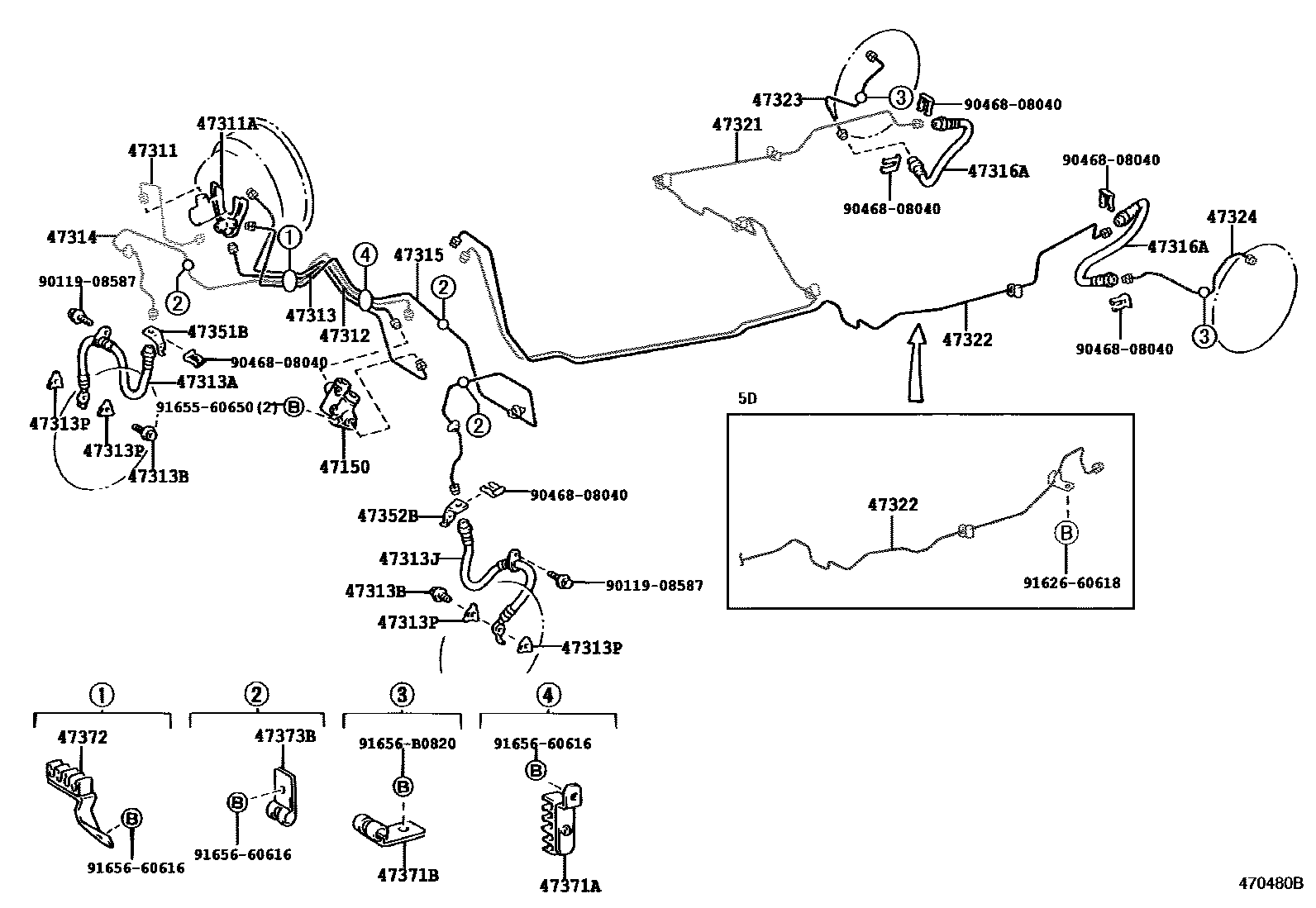

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1 0004 1��(ABS) 0005 1

47150VALVE ASSY, PROPORTIONING

main47150-12050iSXA10199412-199608

main47150-20250iSXA11,16199912

main47150-20280iSXA10,15199912

main47150-20360iSXA10199404-199412

main47150-20370iSXA10199404-199412

main47150-42010iSXA10,15199608-199912

main47150-42020iSXA11199504-199608

main47150-42030iSXA11,16199608-199912

47311TUBE, FRONT BRAKE, NO.1

main47311-42010iSXA1#199404-199608

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10171iSXA1#199404-199608

47312TUBE, FRONT BRAKE, NO.2

main47312-42020iSXA1#199404-199608

main47312-42040iSXA1#199404-199608

main47312-42080iSXA1#199608-199808

main47312-42081iSXA1#199808

47313TUBE, FRONT BRAKE, NO.3

main47313-42020iSXA1#199404-199608

main47313-42040iSXA1#199404-199608

main47313-42080iSXA1#199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02781iSXA1#199404

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iSXA1#199404

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02782iSXA1#199404

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iSXA1#199404

47314TUBE, FRONT BRAKE, NO.4

main47314-42010iSXA1#199404-199608

main47314-42030iSXA1#199404-199608

main47314-42040iSXA1#199608

47315TUBE, FRONT BRAKE, NO.5

main47315-42020iSXA1#199404-199608

main47315-42040iSXA1#199404-199608

main47315-42080iSXA1#199608-199808

main47315-42081iSXA1#199808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02780×2iSXA1#199404

47321TUBE, REAR BRAKE, NO.1

main47321-42010iSXA10199404-199608

main47321-42030iSXA11199504-199608

main47321-42050iSXA10199608-199709

main47321-42060iSXA11,16199608

main47321-42070iSXA10,15199709

47322TUBE, REAR BRAKE, NO.2

main47322-42010iSXA10199404-199709

main47322-42030iSXA11,16199504

main47322-42050iSXA10,15199709

47323TUBE, REAR BRAKE, NO.3

main47323-42010iSXA1#..SOT,STD,X199709

main47323-42030iSXA10,11..G199709

47324TUBE, REAR BRAKE, NO.4

main47324-42010iSXA1#199404-199709

main47324-42030iSXA10,11..G199709

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-42020iSXA1#199404

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-42020iSXA1#199404

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20250iSXA1#199404-199608

main47371-20270iSXA1#199404-199608

main47371-42070iSXA1#199608

47371BCLAMP, BRAKE TUBE, NO.6

main90461-06112×2iSXA1#199404

47372CLAMP, BRAKE TUBE, NO.2

main47371-42020×2iSXA1#199404-199608

main47371-42050iSXA1#199404-199608

main47371-42090iSXA1#199808

47373BCLAMP, BRAKE TUBE, NO.3

main47371-42030iSXA1#199404-199608

main90461-06957×3iSXA1#199404-199608

9011908587

main90119-08587

9046808040

main90468-08040

9162660618

main91626-60618

9165560650

main91655-60650

9165660616

main91656-60616

91656B0820

main91656-B0820

28 parts on this diagram · 5 diagrams in section
