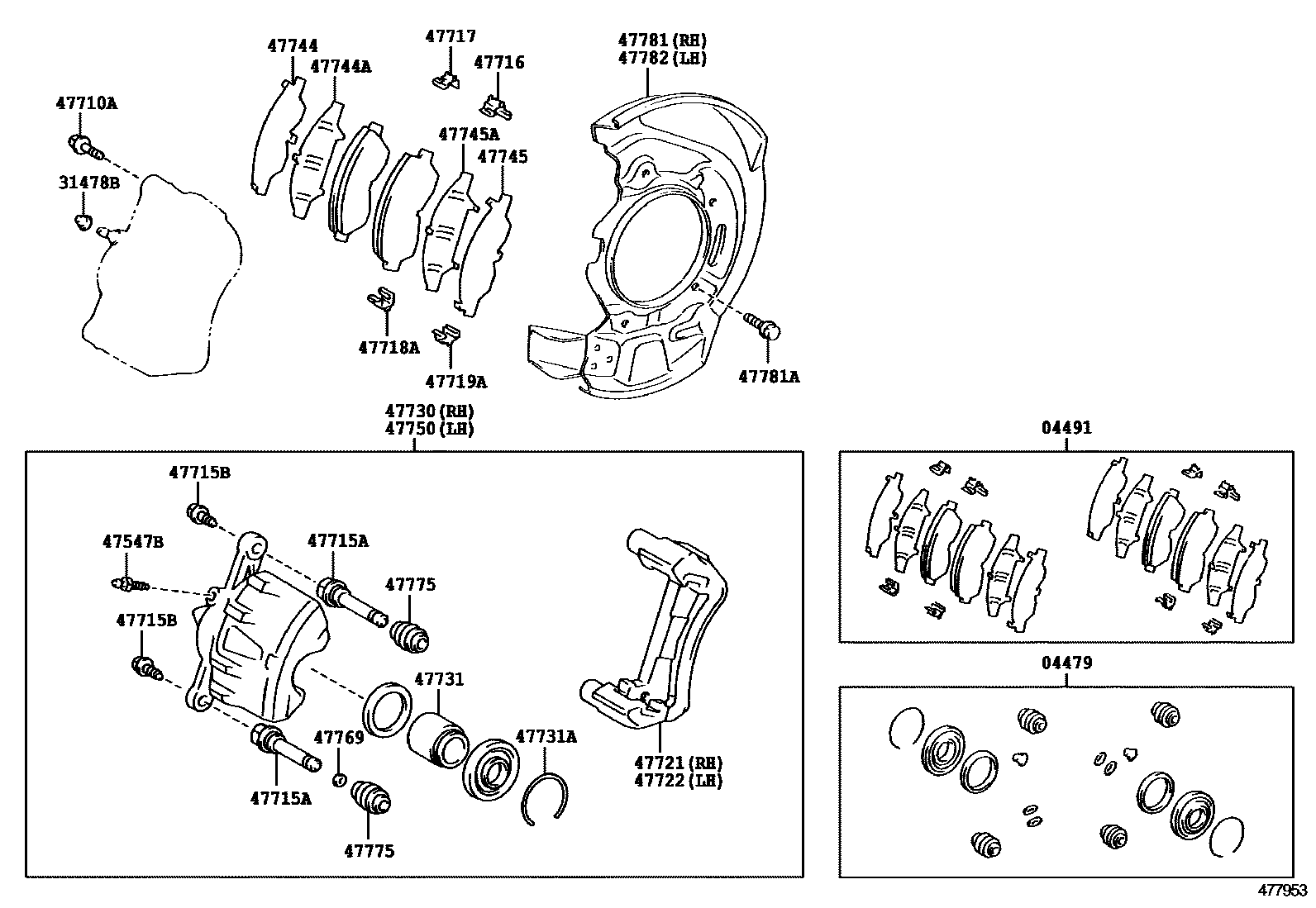

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-42010iSXA1#199404-200005

04491PAD KIT, DISC BRAKE, FRONT

main04491-42010iSXA10199404-199501

main04491-42011iSXA1#199501-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iSXA1#199404-200005

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iSXA1#199404-200005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131×4iSXA1#199404-200005

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22050×4iSXA1#199404-199512

main47715-30080×4iSXA1#199512-200005

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08304×4iSXA1#199404-200005

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22030×2iSXA1#199404-199507

main47716-42010×2iSXA1#199507-199707

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22020×2iSXA1#199707-200005

main47717-42010×2iSXA1#199507-199707

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-22010×2iSXA1#199404-199507

main47718-42010×2iSXA1#199507-199707

main47718-42020×2iSXA1#199707-200005

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-22010×2iSXA1#199404-199507

main47719-42010×2iSXA1#199507-199707

main47719-42020×2iSXA1#199707-200005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42010iSXA1#199404-200005

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42010iSXA1#199404-200005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42010iSXA1#199404-200005

47731PISTON, FRONT DISC BRAKE

main47731-42010×2iSXA1#199404-200005

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iSXA1#199404-200005

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-22070×2iSXA1#199404-199709

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-22120×2iSXA1#199404-199607

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-22070×2iSXA1#199404-199709

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47742-42010×2iSXA1#199505-199607

main47744-22120×2iSXA1#199404-199505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42010iSXA1#199404-200005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22040×2iSXA1#199404-200005

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22040×4iSXA1#199404-200005

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42010iSXA1#..SOT,STD,X199404

main47781-42020iSXA10,11..G199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×8iSXA1#199404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42010iSXA1#..SOT,STD,X199404

main47782-42020iSXA10,11..G199608

26 parts on this diagram · 2 diagrams in section
