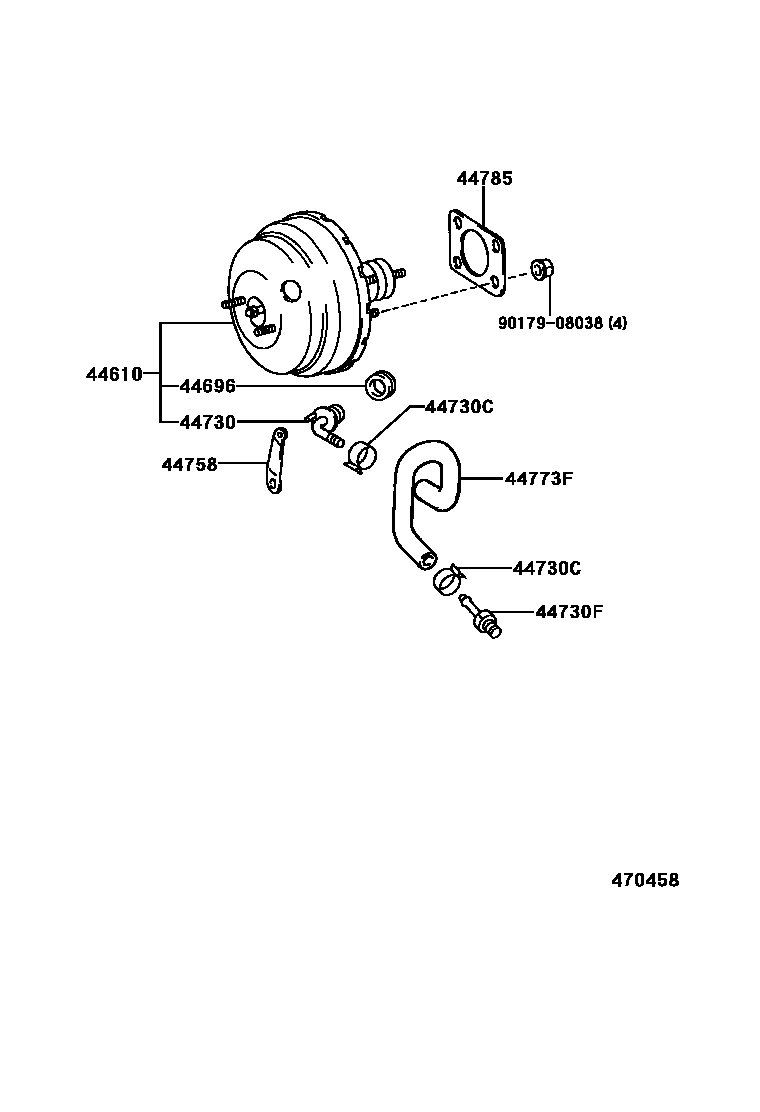

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-42010iSXA1#199404-199608

main44610-42030iSXA1#199608-199709

main44610-42050iSXA1#199709-199905

main44610-42070iSXA1#199905

44696GROMMET, CHECK VALVE

main90480-24439iSXA1#199404

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSXA1#199608

main44730-42010iSXA1#199404-199608

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iSXA1#199404

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iSXA1#199404

44758BRACKET, VACUUM CHECK VALVE

main44758-42010iSXA1#199404-199608

main44758-42020iSXA1#199608

44773FHOSE, UNION TO CHECK VALVE

main44773-42010iSXA1#199404-199608

main44773-42030iSXA1#..STD199608-199709

main44773-42040iSXA1#..SOT,STD,X199709

main44773-42050iSXA10,11..G199608-199808

main44773-42080iSXA10,11..G199808

44785GASKET, BRAKE BOOSTER

main44785-32010iSXA1#199404

9017908038

main90179-08038

9 parts on this diagram · 1 diagram in section
