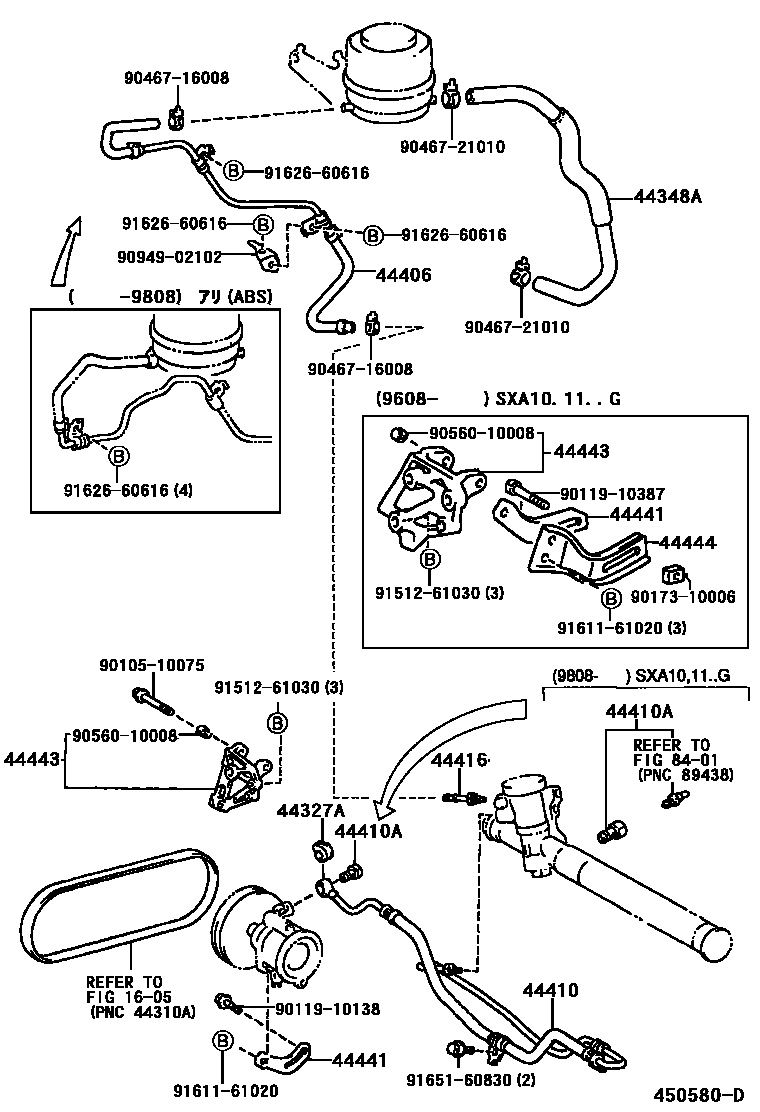

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSXA1#199502-199508

main44327-26020iSXA10199404-199502

main44327-30030iSXA1#199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42010iSXA1#199404-199608

main44348-42011iSXA1#199608-199808

main44348-42040iSXA10,11..G199808

44406TUBE SUB-ASSY, RETURN

main44406-42010iSXA1#199404-199608

main44406-42020iSXA1#199404-199608

main44406-42031iSXA1#199608-199709

main44406-42050iSXA1#199709-199808

main44406-42070iSXA1#199808

44410TUBE ASSY, PRESSURE FEED

main44410-42020iSXA10199404-199502

main44410-42021iSXA1#199502-199709

main44410-42022iSXA1#199709-199808

main44410-42030iSXA1#199808

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iSXA10,11..G199808

main90401-16014iSXA10199404-199502

main96341-41603iSXA1#..SOT,STD,X199808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-42020iSXA1#199404

44441BRACKET, PUMP, FRONT

main44441-32010iSXA1#199404

44443BRACKET, PUMP

main44443-20050iSXA10,11..G199608

main44443-32070iSXA1#..SOT,STD,X199404

44444STAY, PUMP, REAR

main44444-20030iSXA10,11..G199608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510075

main90105-10075

9011910138

main90119-10138

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046721010

main90467-21010

9056010008

main90560-10008

9094902102

main90949-02102

9151261030

main91512-61030

9161161020

main91611-61020

9162660616

main91626-60616

9165160830

main91651-60830

23 parts on this diagram · 1 diagram in section
