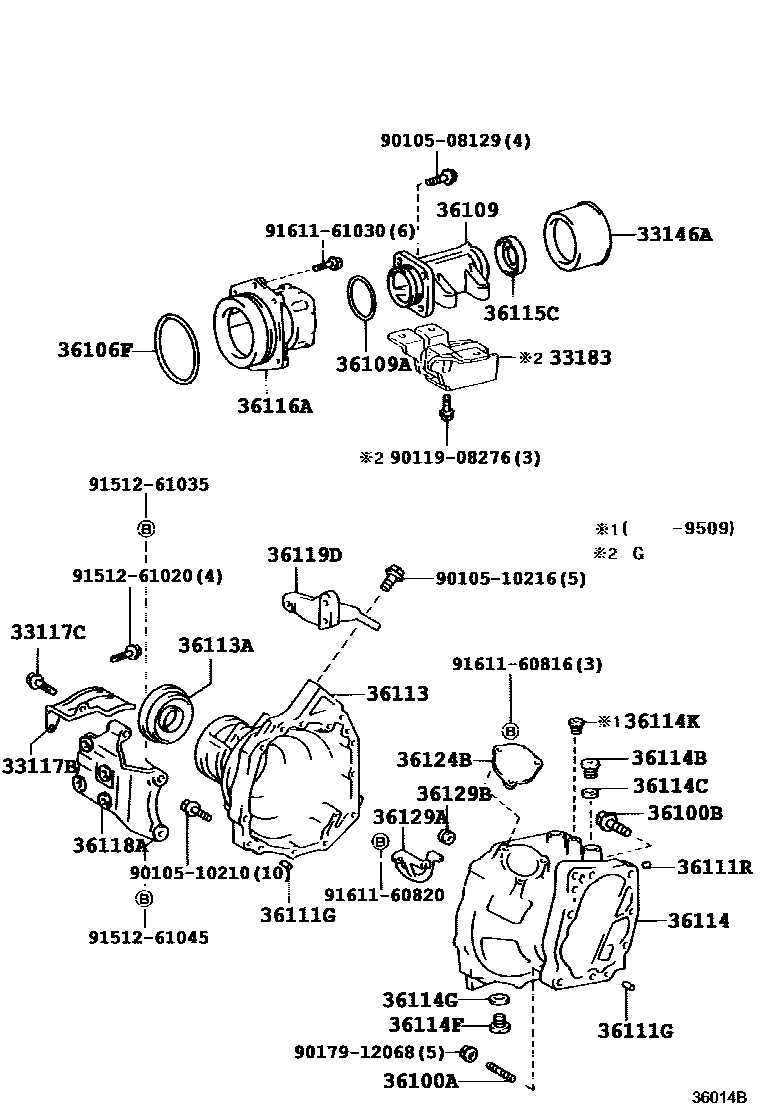

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33117BPROTECTOR, TRANSFER CASE

main33117-42010iSXA10,11199404

33117CBOLT(FOR TRANSFER CASE PROTECTOR)

main90105-08040×2iSXA10,11199404

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iSXA10,11199404

33183DAMPER, TRANSFER DYNAMIC

main33183-20050iSXA10,11..ATM..G199608

main33183-42010iSXA10,11..MTM..G199608

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12018×3iSXA10,11..MTM199404

main90116-12027iSXA10,11..ATM199404

main90116-12028×2iSXA10,11199404

main90116-12029×2iSXA10,11..ATM199404

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12137×3iSXA10,11..ATM; SXA10,11..MTM199404

main90105-12161iSXA10,11..ATM199404

main90105-12162iSXA10,11..ATM199404

36106FRING, O (FOR TRANSFER PINION BEARING CAGE)

main90301-94001iSXA10,11..ATM199404

main90301-99049iSXA10,11..MTM199404

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-12011iSXA10,11..MTM..(SOT,STD,X)199803

main36109-20012iSXA10,11..MTM199404-199803

main36109-32010iSXA10,11..ATM199404

36109ARING, O (FOR TRANSFER EXTENSION HOUSING)

main90301-63005iSXA10,11199404

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×2iSXA10,11..MTM199404

main90250-12005×2iSXA10,11199404

main90254-10003×2iSXA10,11..ATM199404

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-08002iSXA10,11..MTM199404

36113CASE, TRANSFER, RH

main36113-12010iSXA10,11..MTM199404

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-47003iSXA10,11..MTM199404

36114CASE, TRANSFER, LH

main36114-12030iSXA1#..MTM199404-199509

main36114-12050iSXA10,11..MTM199509

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-22001iSXA10,11..MTM199404

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-22002iSXA10,11..MTM199404

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iSXA10,11..MTM199404

main90341-18021iSXA10,11..ATM199404

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iSXA10,11199404

36114KPLUG, TRANSFER SHIFT DETENT BALL

main90341-12004iSXA1#..MTM199404-199509

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38032iSXA10,11199404

36116ACAGE, TRANSFER PINION BEARING

main36116-12010iSXA10,11..MTM199404

36118APLATE, TRANSFER STIFFENER, RH

main36118-20030iSXA10,11..ATM..G199608

main36118-32011iSXA10,11..MTM199404

main36118-32020iSXA10,11..ATM..(SOT,STD,X)199404

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-32010iSXA10,11..MTM199404

main36119-32021iSXA10,11..ATM199404

36124BCOVER, TRANSFER INSPECTION HOLE

main36124-12010iSXA10,11..MTM199404

main36124-32010iSXA10,11..ATM199404

36129ATUBE, TRANSFER OIL

main36129-20010iSXA10,11..MTM199404

36129BCUSHION (FOR TRANSFER OIL TUBE)

main90540-06027iSXA10,11..MTM199404

9010508129

main90105-08129

9010510210

main90105-10210

9010510216

main90105-10216

9011908276

main90119-08276

9017912068

main90179-12068

9151261020

main91512-61020

9151261035

main91512-61035

9151261045

main91512-61045

9161160816

main91611-60816

9161160820

main91611-60820

9161161030

main91611-61030

37 parts on this diagram · 2 diagrams in section
