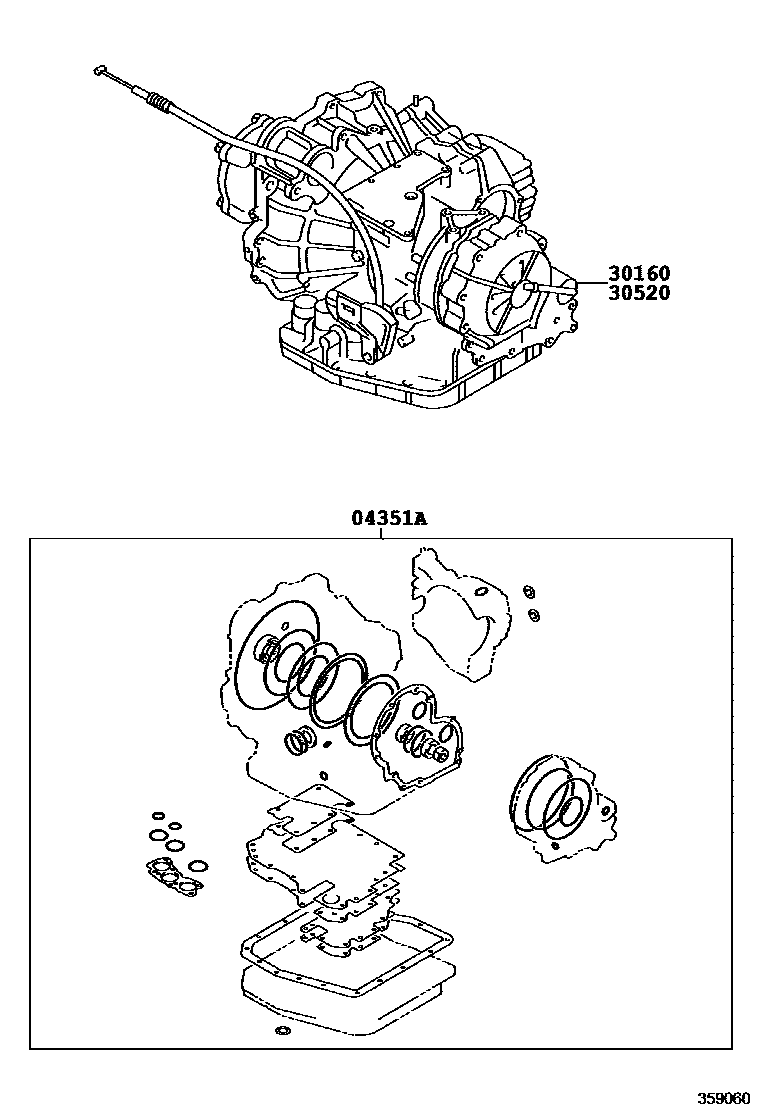

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A540H 0002 1A247E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-42010iSXA10,11..ATM199404

main04351-42020iSXA15,16..ATM199709

30160TRANSAXLE ASSY, AUTOMATIC W/TRANSFER, REBUILT

main30160-42010iSXA10..ATM199404-199411

main30160-42011iSXA10..ATM199411-199412

main30160-42012iSXA1#..ATM199412-199505

main30160-42013iSXA1#..ATM199505-199608

main30160-42020iSXA1#..ATM..G199608-199709

main30160-42040iSXA1#..ATM..STD199608-199709

main30160-42050iSXA10,11..ATM..G199808

main30160-42900iSXA10,11..ATM..(SOT,STD,X)199709

main30160-42901iSXA10,11..ATM..G199709-199808

30520TRANSAXLE ASSY, AUTOMATIC W/TRANSFER

main30520-42010iSXA10..ATM199404-199411

main30520-42011iSXA10..ATM199411-199412

main30520-42012iSXA1#..ATM199412-199505

main30520-42013iSXA1#..ATM199505-199608

main30520-42020iSXA10,11..ATM..G199608-199808

main30520-42030iSXA10,11..ATM..(SOT,STD,X)199709

main30520-42040iSXA1#..ATM..STD199608-199709

main30520-42050iSXA10,11..ATM..G199808

3 parts on this diagram · 2 diagrams in section
