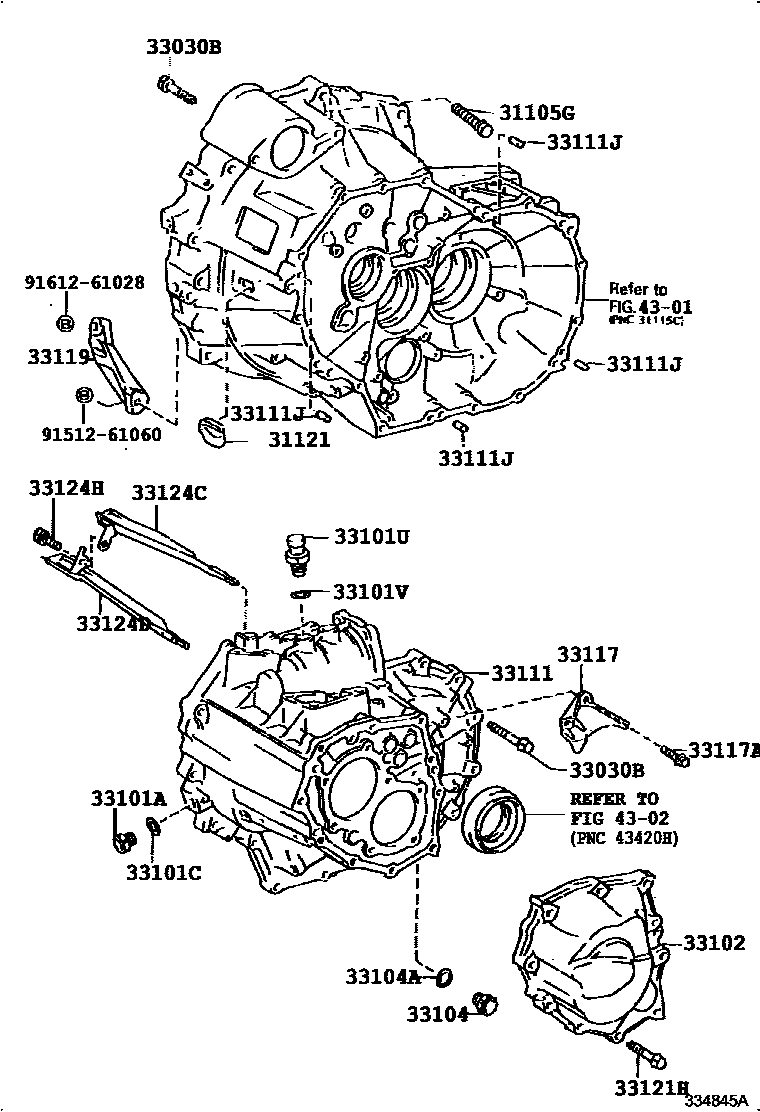

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040i199404

main90105-10077i199404

main90119-12168×3i199404

main91621-61020×2i199404

main91651-41022i199608-199709

31121COVER, CLUTCH HOUSING, NO.1

main31121-20010i199404

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08126×17i199404

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033i199404

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199404

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111i199404-199608

main90930-03148i199608

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008i199404

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12041i199404

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199404

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199404

33111CASE, MANUAL TRANSMISSION

main33101-12170i199404-199809

main33101-12171i199809-199911

main33101-12172i199911

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4i199404

main90250-12005×2i199709

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020i199404-199709

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2i199404-199709

33119PLATE, STIFFENER, LH(MTM)

main33119-20090i199404

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630×10i199404

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12030i199404

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12041i199404

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648i199404

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9151261060

main91512-61060

9161261028

main91612-61028

23 parts on this diagram · 1 diagram in section
