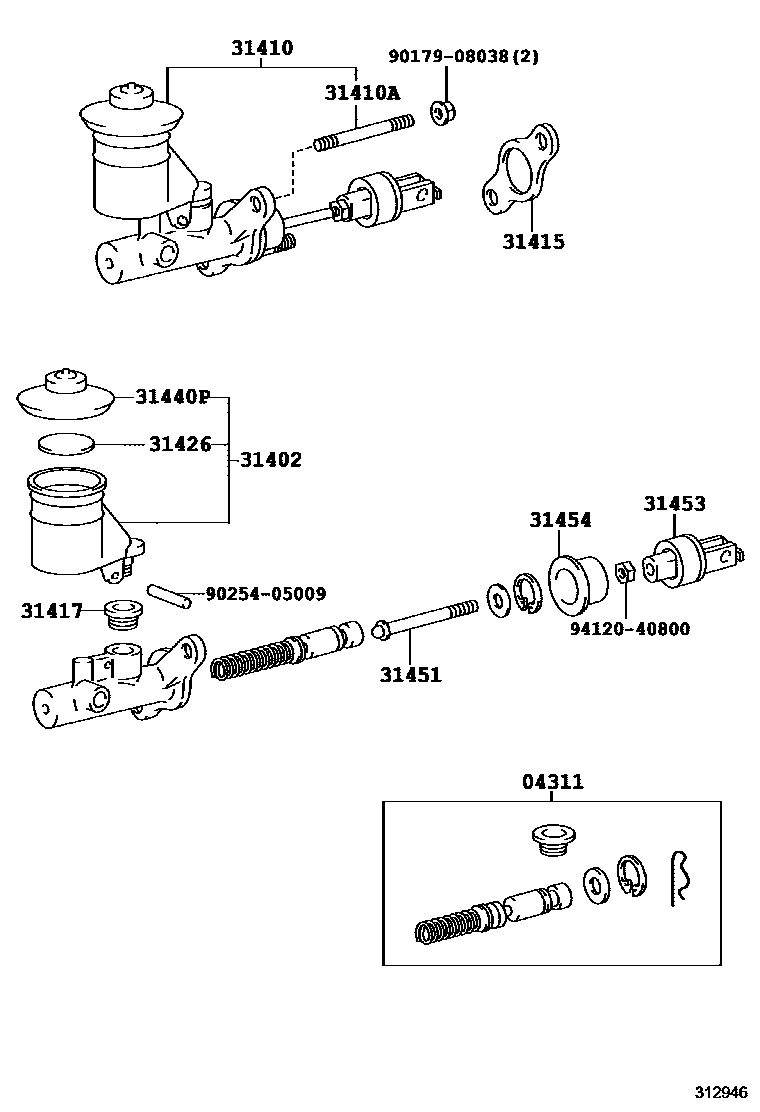

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iSXA1#..MTM199404

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-22010iSXA1#..MTM199404

31410CYLINDER ASSY, CLUTCH MASTER

main31410-42010iSXA1#..MTM199404

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357×2iSXA1#..MTM199404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iSXA1#..MTM199404

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iSXA1#..MTM199404

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iSXA1#..MTM199404

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iSXA1#..MTM199404

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-42010iSXA1#..MTM199404

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iSXA1#..MTM199404

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iSXA1#..MTM199404

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
