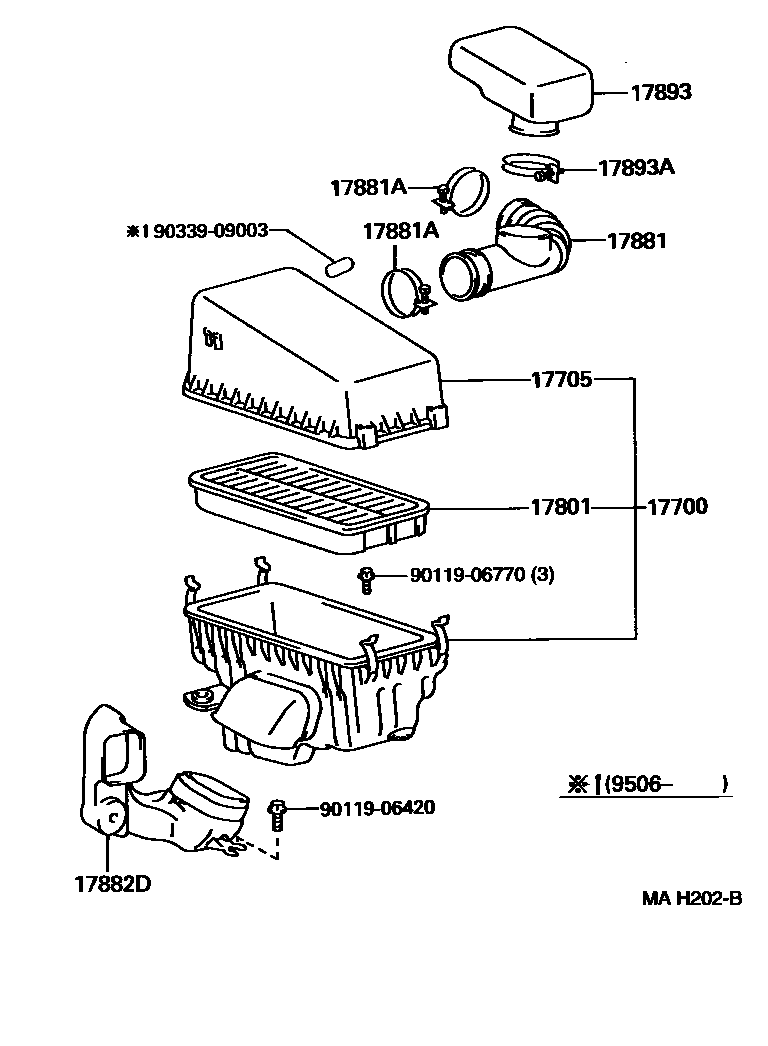

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-74540i3SFE..SXA1#199404-199506

main17700-74541i3SFE..SXA1#199506-199709

main17700-74542i3SFE..SXA1#199709-199907

main17700-74543i3SFE..SXA1#199907

main17700-74620i3SGE..SXA1#199608-199709

main17700-74621i3SGE..SXA10,11199709-199808

main17700-74730i3SGE..SXA10,11199808

17705CAP SUB-ASSY, AIR CLEANER

main17705-74380i3SFE..SXA1#199404-199506

main17705-74381i3SFE..SXA1#199506-199907

main17705-74382i3SFE..SXA1#199907

main17705-74450i3SGE..SXA10,11199608-199808

main17705-74530i3SGE..SXA10,11199808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i3S#..SXA1#199404

17881HOSE, AIR CLEANER, NO.1

main17881-74600i3SFE..SXA1#199404-199709

main17881-74790i3SGE..SXA10,11199608-199808

main17881-74801i3SFE..SXA1#199709

main17881-7A070i3SGE..SXA10,11199808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710×2i3SFE..SXA1#199404

main96111-10800×2i3SGE..SXA10,11199608-199808

main96111-10880×2i3SGE..SXA10,11199808

17882DHOSE, COOL AIR INTAKE

main17882-74290i3S#..SXA1#199709-199808

main17882-74300i3S#..SXA1#199404-199709

main17882-74320i3SGE..SXA10,11199808

17893RESONATOR, INTAKE AIR

main17893-74330i3SFE..SXA1#199404

main17893-74400i3SGE..SXA10,11199608-199808

main17893-74470i3SGE..SXA10,11199808

17893ACLAMP, HOSE

main96111-10670i3SFE..SXA1#199404

main96111-10800i3SGE..SXA10,11199709-199808

main96111-10830i3SGE..SXA10,11199808

9011906420

main90119-06420

9011906770

main90119-06770

9033909003

main90339-09003

11 parts on this diagram · 5 diagrams in section
