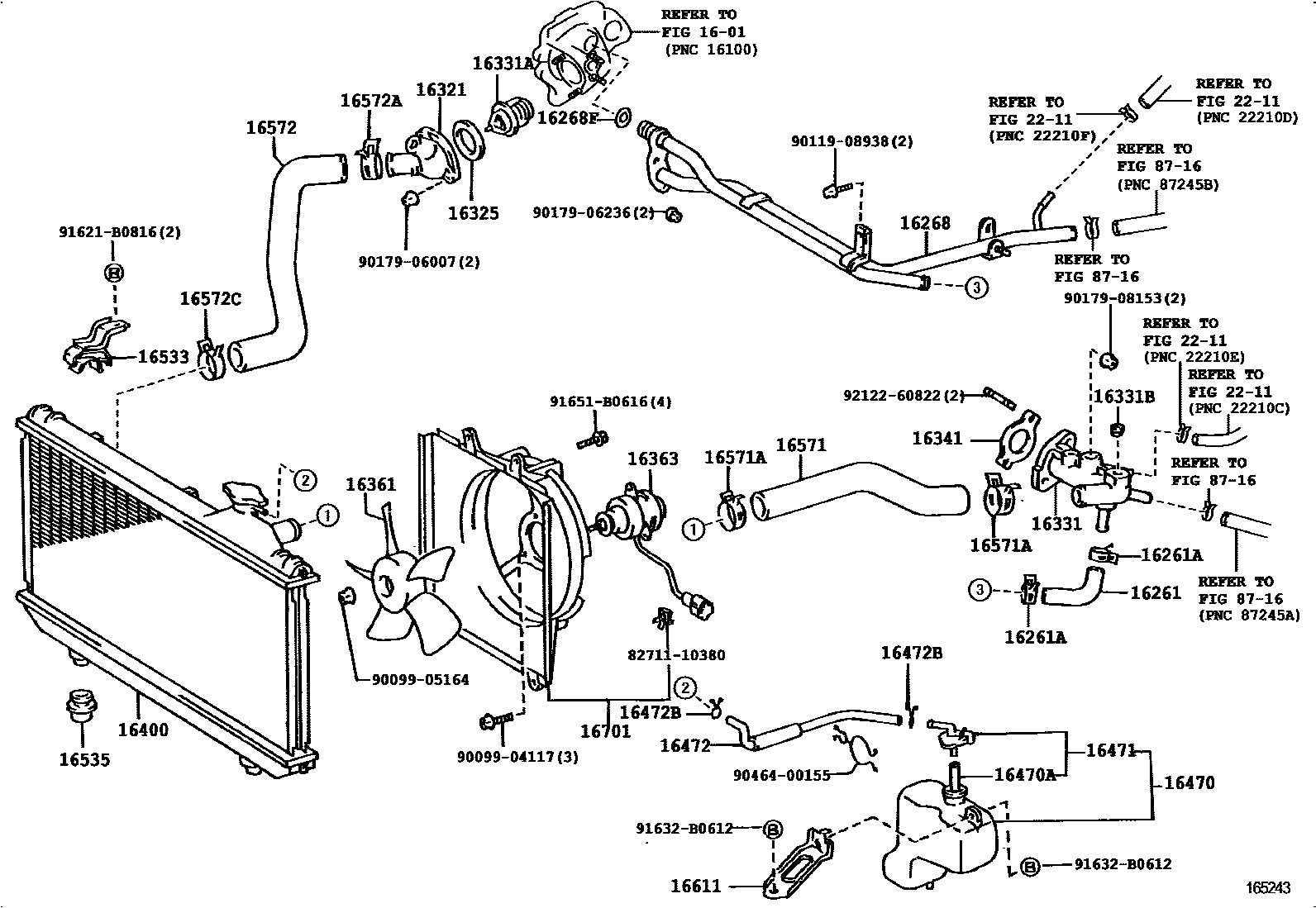

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1601

16261HOSE, WATER BY-PASS

main16261-74010i3SFE..SXA1#199404-199709

main16261-74100i3SFE..SXA1#199709

main16261-88460i3SGE..SXA10,11199608

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003i3SFE..SXA1#199404

sub90467-21010

main90467-23013i3SGE..SXA10,11199608

sub90467-23009

16268PIPE, WATER BY-PASS, NO.1

main16268-74152i3SFE..SXA10199404-199502

sub16268-74153

main16268-74153i3SFE..SXA1#199502-199709

main16268-74190i3SFE..SXA1#199709

main16268-88460i3SGE..SXA1#199608-199707

main16268-88463i3SGE..SXA10,11199707

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3SFE..SXA1#199404

main96761-24019i3SGE..SXA10,11199608

16321INLET, WATER

main16321-74030i3SFE..SXA1#199404-199608

sub16321-74050

main16321-74050i3SFE..SXA1#199608

main16321-88460i3SGE..SXA10,11199608

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i3SFE..SXA1#199404

16331OUTLET, WATER

main16304-88460i3SGE..SXA10,11199608-199808

main16304-88560i3SGE..SXA10,11199808

main16331-74170i3SFE..SXA1#199404-199709

main16331-74220i3SFE..SXA1#199709

main16331-74260i3SFE..SXA1#199709

16331ATHERMOSTAT

main90916-03046i3SFE..SXA1#199404-199602

main90916-03090i3SFE..SXA1#199603

main90916-03100i3SGE..SXA10,11199608

16331BPLUG(FOR WATER OUTLET)

main90345-53007i3SFE..SXA1#199607

main90345-53009i3SFE..SXA1#199404-199607

16341GASKET, WATER OUTLET

main16341-74020i3SFE..SXA1#199404

main16341-88460i3SGE..SXA10,11199608

16361FAN

main16361-74110i3S#..SXA1#199404

16363MOTOR, COOLING FAN

main16363-74160i3S#..SXA1#199404

16400RADIATOR ASSY

main16400-7A110i3SFE..SXA1#..MTM199404-199511

sub16400-7A111

main16400-7A111i3S#..SXA1#..MTM199511-199709

sub16400-7A122

main16400-7A120i3SFE..SXA10..ATM199404-199412

sub16400-7A121

main16400-7A121i3SFE..SXA1#..ATM199412-199511

sub16400-7A122

main16400-7A122i3S#..SXA1#..ATM199511-199709

sub16400-7A123

main16400-7A470i3S#..SXA1#..MTM199709

sub16400-7A471

main16400-7A480i3S#..SXA1#..ATM199709

sub16400-7A481

16470TANK ASSY, RADIATOR RESERVE

main16470-74281i3S#..SXA1#199404

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i3S#..SXA1#199404

16471CAP SUB-ASSY, RESERVE TANK

main16405-74271i3S#..SXA1#199404

16472HOSE, BREATHER

main16472-74280i3S#..SXA1#199404

16472BCLIP(FOR BREATHER HOSE)

main90467-11085i3S#..SXA1#199404

16533SUPPORT, RADIATOR, UPPER

main16533-74270i3S#..SXA1#199404-199709

main16533-74300i3S#..SXA1#199709

16535SUPPORT, RADIATOR, LOWER

main16535-74170i3S#..SXA1#199404-199709

sub16535-74210

main16535-74210i3S#..SXA1#199709

16571HOSE, RADIATOR, INLET

main16571-74310i3SFE..SXA1#199404-199608

sub16571-74400

main16571-74400i3S#..SXA1#199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i3S#..SXA1#199404

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-74250i3S#..SXA1#199404

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i3S#..SXA1#199404

sub90467-34004

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90467-34006i3S#..SXA1#199404

16611BRACKET, RADIATOR RESERVE TANK

main16611-74160i3S#..SXA1#199404

16701SHROUD SUB-ASSY, FAN

main16711-74540i3S#..SXA1#199404

2211

8716

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904117

main90099-04117

9009905164

main90099-05164

9011908938

main90119-08938

9017906007

main90179-06007

9017906236

main90179-06236

9017908153

main90179-08153

9046400155

main90464-00155

91621B0816

main91621-B0816

91632B0612

main91632-B0612

91651B0616

main91651-B0616

9212260822

main92122-60822

42 parts on this diagram · 6 diagrams in section
