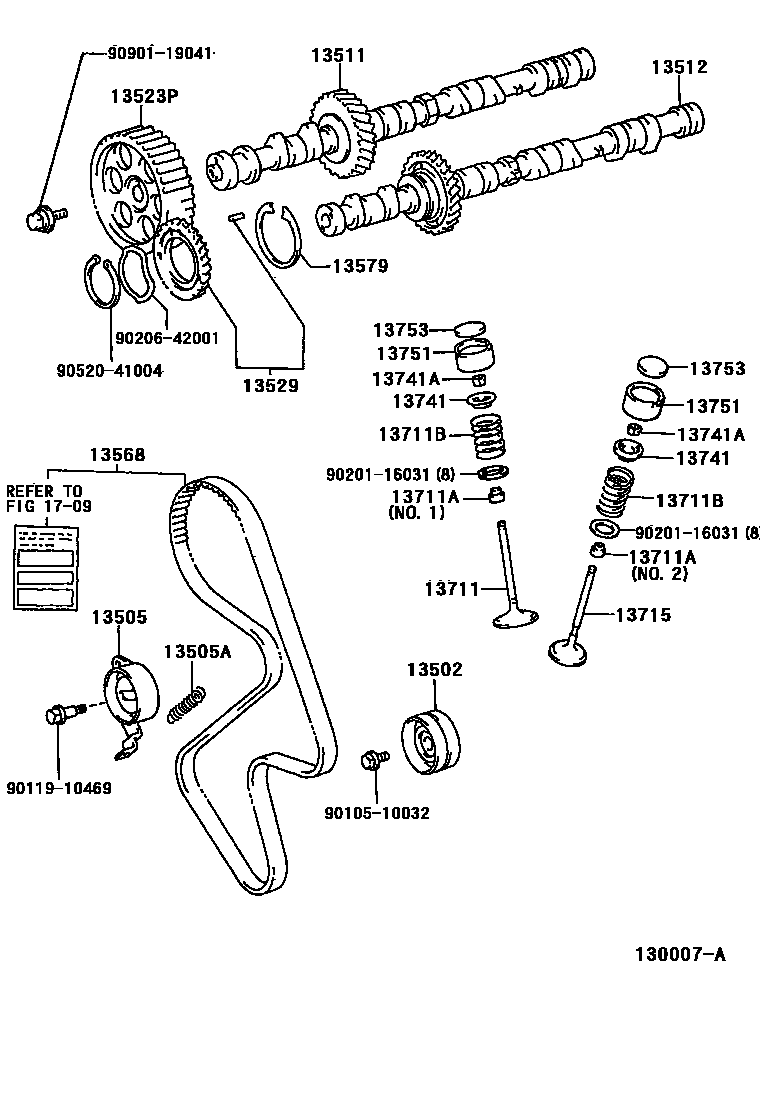

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13512CAMSHAFT, NO.2
13529GEAR, CAMSHAFT SUB
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
1709
9010510032
main90105-10032
9011910469
main90119-10469
9020116031
main90201-16031
9020642001
main90206-42001
9052041004
main90520-41004
9090119041
main90901-19041
24 parts on this diagram · 3 diagrams in section
