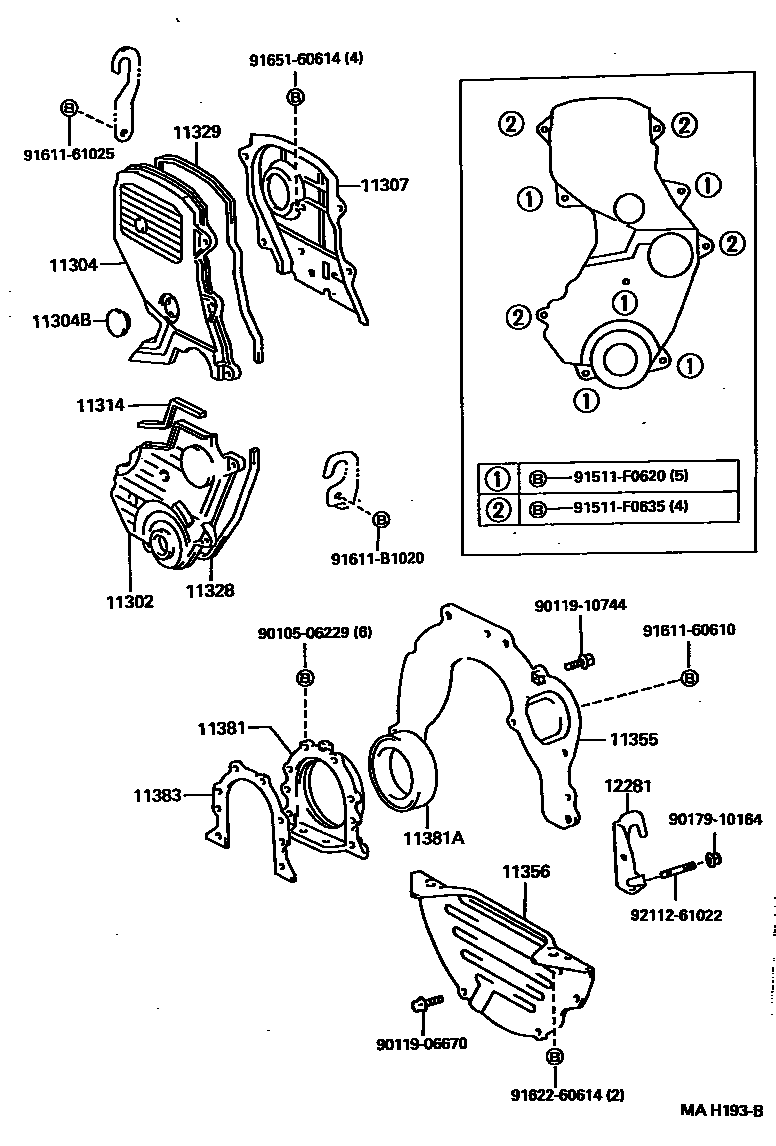

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11314GASKET, TIMING CHAIN NO.2 COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11355PLATE, REAR END
11356PLATE, REAR END, NO.2
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
12281HANGER, ENGINE, NO.1
9010506229
main90105-06229
9011906670
main90119-06670
9011910744
main90119-10744
9017910164
main90179-10164
91511F0620
main91511-F0620
91511F0635
main91511-F0635
9161160610
main91611-60610
9161161025
main91611-61025
91611B1020
main91611-B1020
9162260614
main91622-60614
9165160614
main91651-60614
9211261022
main92112-61022
25 parts on this diagram · 4 diagrams in section
