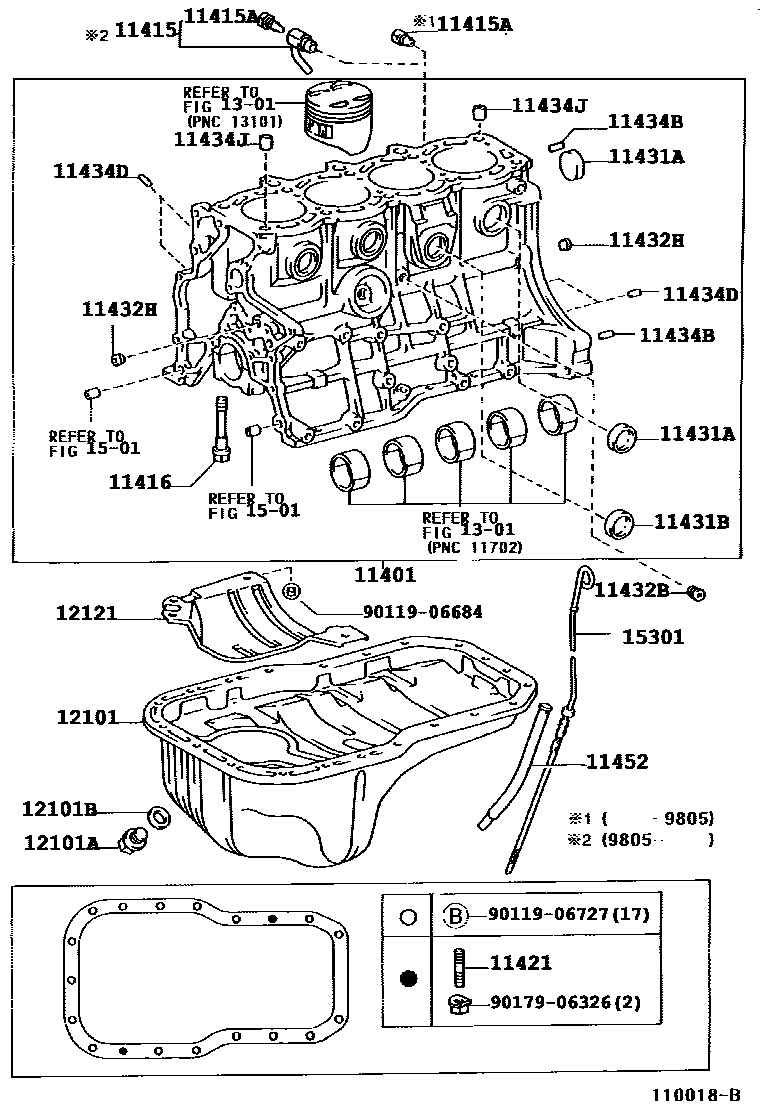

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-79515i3SFE..SXA1#199404-199508

main11401-79516i3SFE..SXA1#199508-199511

main11401-79517i3SFE..SXA1#199511-199709

main11401-79655i3SGE..SXA10,11199608-199801

main11401-79656i3SGE..SXA10,11199801-199808

main11401-79875i3SFE..SXA15,16199709-200005

main11401-79886i3SGE..SXA10,11199808-200005

main11401-80015i3SFE..SXA10,11199709-200005

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3SFE..SXA1#199805

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3S#..SXA1#199404-199805

main90910-09087i3SFE..SXA1#199805

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028×10i3S#..SXA1#199404

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i3SFE..SXA1#199404-199709

main90116-06048×2i3SGE..SXA10,11199608

main92122-60610×2i3SFE..SXA1#199709

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×8i3S#..SXA1#199404

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3S#..SXA1#199404

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52003i3SFE..SXA1#199611-199612

main90345-52001i3SFE..SXA1#199612

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006×2i3SFE..SXA1#199404

main90344-53015×2i3SGE..SXA10,11199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i3S#..SXA1#199404

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i3SFE..SXA10,11199404

main90250-06015×2i3SGE..SXA10,11199608

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017×2i3S#..SXA1#199404

11452GUIDE, OIL LEVEL GAGE

main11452-74031i3SFE..SXA10199404-199503

main11452-74050i3SFE..SXA1#199503

main11452-88463i3SGE..SXA10,11199608-199808

main11452-88561i3SGE..SXA10,11199808

12101PAN SUB-ASSY, OIL

main12101-74050i3SFE..SXA1#199404-199805

main12101-74150i3SFE..SXA1#199805

main12101-88460i3SGE..SXA10,11199608-199808

main12101-88560i3SGE..SXA10,11199808

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i3S#..SXA1#199404

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3S#..SXA1#199404

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-88461i3SGE..SXA10,11199608-199801

main12121-88463i3SGE..SXA10,11199801-199808

main12121-88563i3SGE..SXA10,11199808

main12123-74040i3SFE..SXA1#199404

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-74010i3SFE..SXA10199404-199503

main15301-74100i3SFE..SXA1#199503

main15301-88462i3SGE..SXA10,11199608-199808

main15301-88561i3SGE..SXA10,11199808

9011906684

main90119-06684

9011906727

main90119-06727

9017906326

main90179-06326

23 parts on this diagram · 3 diagrams in section
