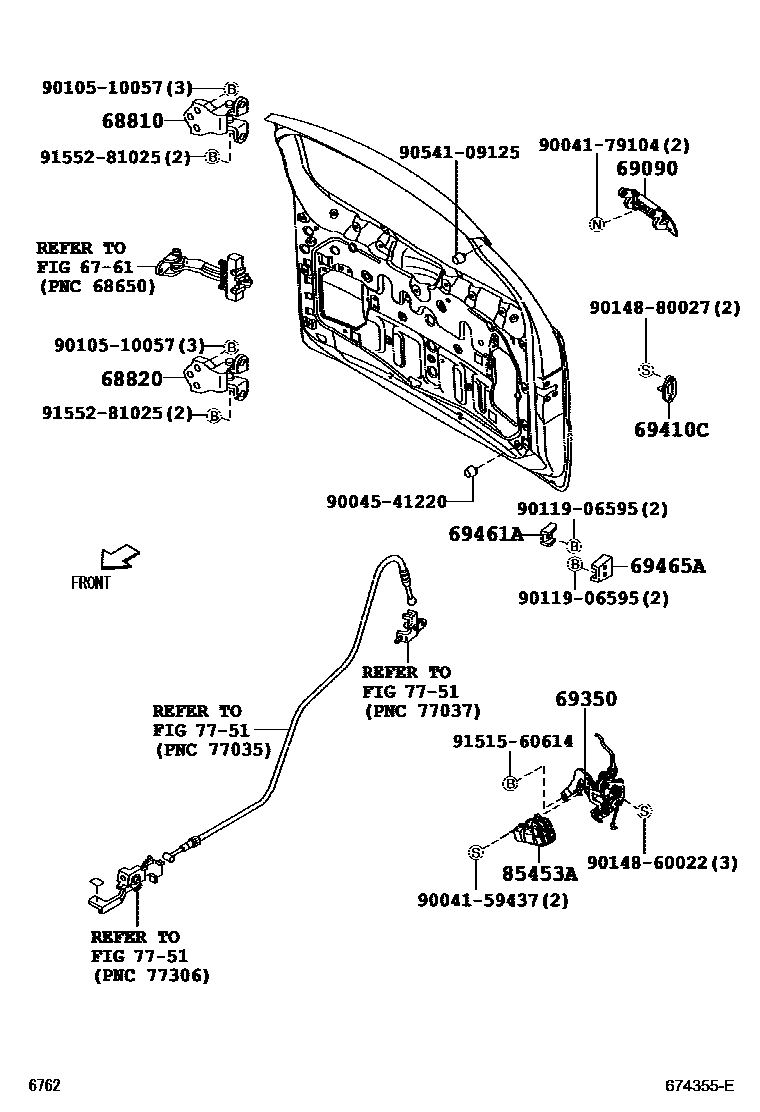

BACK DOOR LOCK & HINGE
6761BACK DOOR PANEL & GLASS
68810HINGE ASSY, BACK DOOR, UPPER
68820HINGE ASSY, BACK DOOR, LOWER
69090HANDLE ASSY, BACK DOOR, OUTSIDE
WHITE,W23
WHITE PEARL MC.CS,W24
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
BROWN MC.CS,R59
DK.RED.MC,R54
CHAMPAGNE ME.,T23
YELLOW,Y09
LIME GREEN M.M.,G41
BRITISH GREEN MC.,G37
OLIVE ME.SE,G52
BLUE M.M.,B58
WHITE PEARL MC.CS,W24
SILVER ME.,S28
GRAY ME.,S33
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
CHAMPAGNE ME.,T23
OLIVE ME.SE,G52
69350LOCK ASSY, BACK DOOR
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69461ASTOPPER, BACK DOOR SIDE MALE
69465ASTOPPER, BACK DOOR SIDE FEMALE
7751FUEL TANK & TUBE
85453AMOTOR, DOOR CONTROL
9004159437
main90041-59437
9004179104
main90041-79104
9004541220
main90045-41220
9010510057
main90105-10057
9011906595
main90119-06595
9014860022
main90148-60022
9014880027
main90148-80027
9054109125
main90541-09125
9151560614
main91515-60614
9155281025
main91552-81025
20 parts on this diagram · 1 diagram in section
