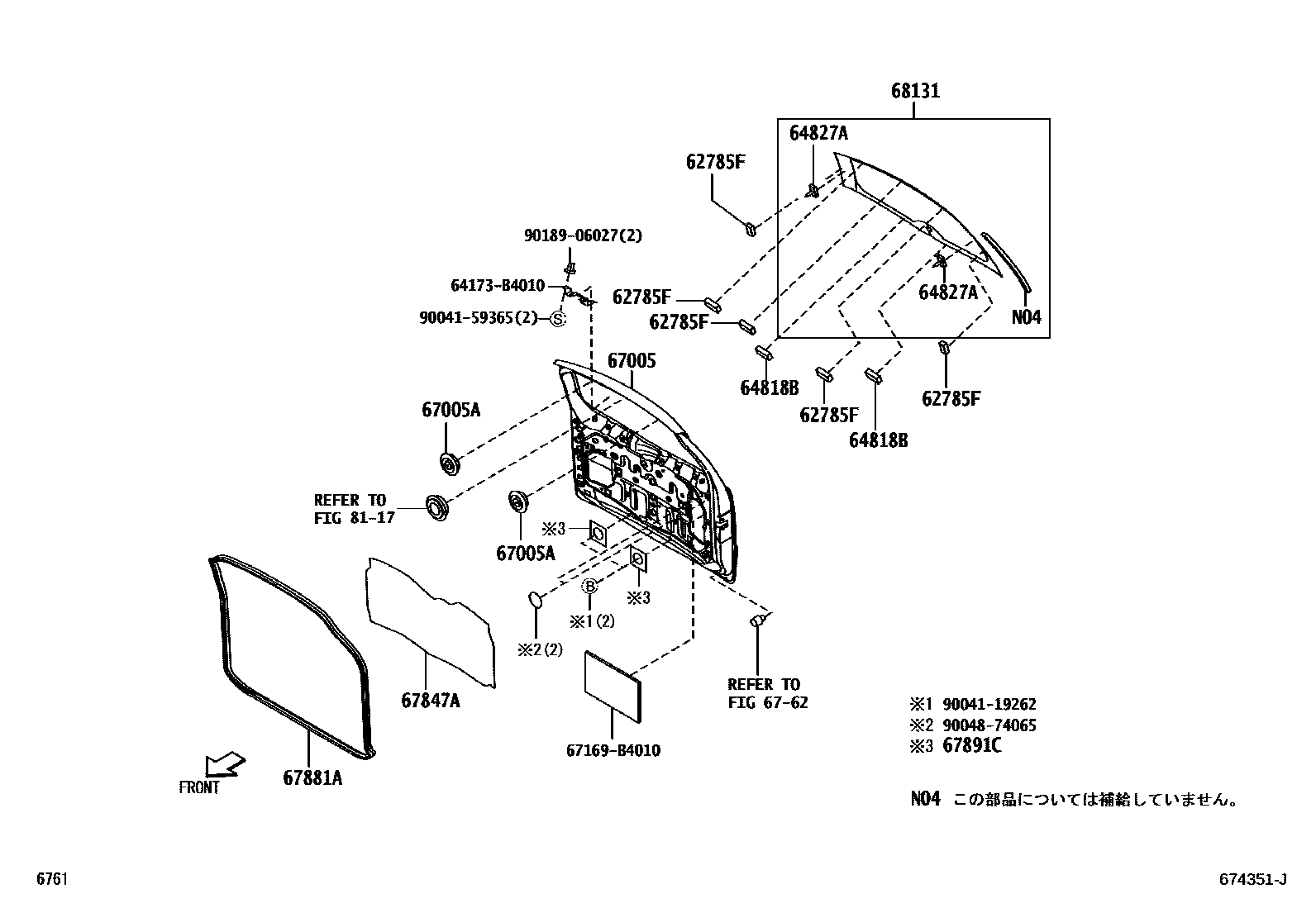

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

62785FSPACER, BACK DOOR GLASS

main62785-B4010×5iJ200,210200601-200811

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-B2010×2iJ210200811-201605

64827ACLIP, BACK WINDOW GLASS, RH

main64827-B4010×2iJ210200811-201605

67005PANEL SUB-ASSY, BACK DOOR

main67005-B4010supersedes 67005-B4080iJ200,210..G; J200,210..X200601-200706

main67005-B4110supersedes 67005-B4080iJ200,210..G; J200,210..X200706-200811

67005APLUG, HOLE(FOR BACK DOOR PANEL)

main90048-71305-B0×2iJ210200811-201605

main90048-71305-C0×2iJ200..G; J200..X200811-201409

6762BACK DOOR LOCK & HINGE

→ Go to FIG 67-62

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B4010iJ200,210200601-200811

67881AWEATHERSTRIP, BACK DOOR

main67881-B4010iJ200,210200601-200811

main67881-B4011iJ200201302-201409

67891CSEAL, BACK DOOR

main67891-B4010×2iJ200200904-201409

68131GLASS, BACK DOOR

main68150-B4011iJ210200811-201605

main68150-B4050supersedes 68150-B4010iJ200,210200601-200811

8117CENTER STOP LAMP

→ Go to FIG 81-17

64173B4010PANEL,REAR FLOOR END PLATE

main64173-B4010

67169B4010LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67169-B4010

9004119262

main90041-19262

9004159365

main90041-59365

9004874065

main90048-74065

9018906027

main90189-06027

17 parts on this diagram · 4 diagrams in section
