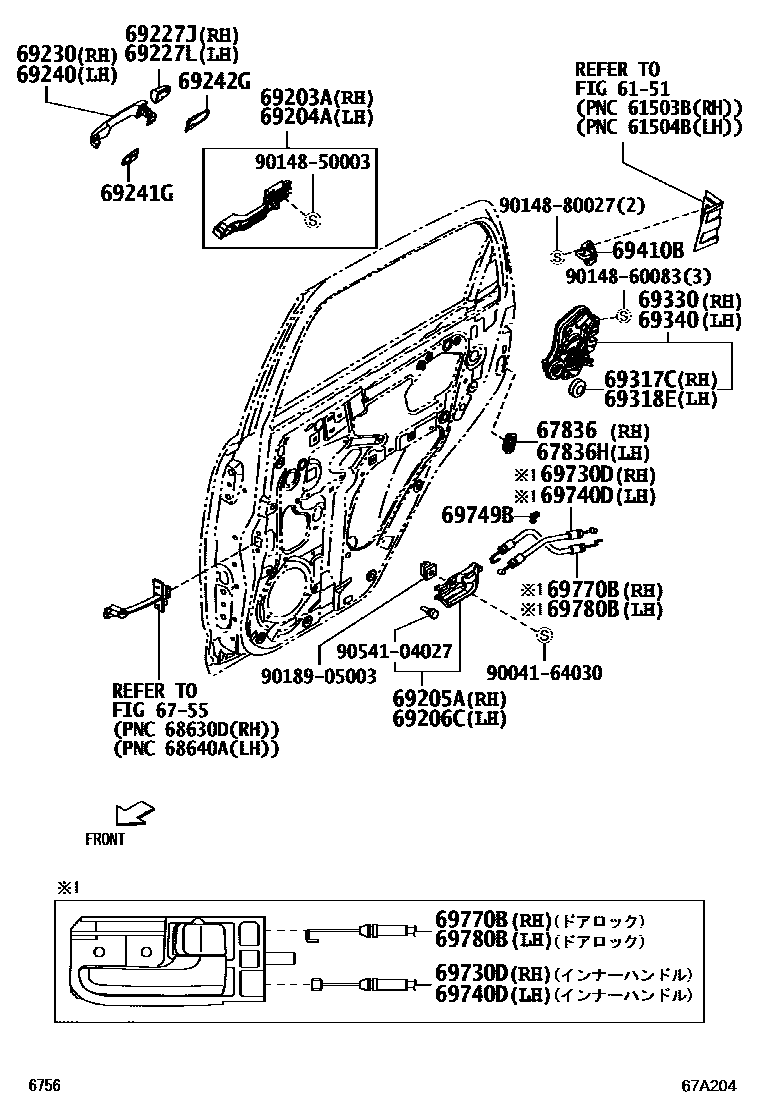

REAR DOOR LOCK & HANDLE

6151SIDE MEMBER

→ Go to FIG 61-51

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iJ200,210200601-200811

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iJ200,210200601-200811

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52010iJ200,210200601-200811

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52010iJ200,210200601-200811

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-B1010iJ200,210200601-200811

main69205-B1020iJ200,210200811-201312

main69205-B1021-B0iJ200,210201401-201404

DK.GRAY,TRIM1#

main69205-B1050iJ200201405-201409

main69205-B1050-B0iJ210201405-201605

DK.GRAY,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-B1010iJ200,210200601-200811

main69206-B1020iJ200,210200811-201312

main69206-B1021-B0iJ200,210201401-201404

DK.GRAY,TRIM1#

main69206-B1050iJ200201405-201409

main69206-B1050-B0iJ210201405-201605

DK.GRAY,TRIM1#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-B1010-A2iJ200,210..G200601-200712

WHITE,W23

main69227-B1010-A3iJ200200811-201409

WHITE PEARL MC.CS,W24

main69227-B1010-B1iJ200200811-201409

GRAY ME.,S33

main69227-B1010-D0iJ200201209-201409

DK.RED.MC,R54

main69227-B1010-E1iJ200200811-201409

CHAMPAGNE ME.,T23

main69227-B1010-F0iJ200,210200601-200710

YELLOW,Y09

main69227-B1010-G2iJ200,210200601-200811

LIME GREEN M.M.,G41

main69227-B1010-G3iJ200,210200712-200811

BRITISH GREEN MC.,G37

main69227-B1010-G5iJ210201204-201602

OLIVE ME.SE,G52

main69227-B1010-J0iJ200,210200811-201204

BLUE M.M.,B58

main69227-B1010-R0iJ200,210200601-200811

RED,R40

main69227-B1010-S8iJ200200811-201409

SILVER ME.,S28

main69227-B1010-X7iJ200200811-201409

BLACK M.M.,X07

main69227-B1010-D5iJ200,210..X201007-201204

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-B1010-A2iJ200,210..G200601-200712

WHITE,W23

main69227-B1010-A3iJ200200811-201409

WHITE PEARL MC.CS,W24

main69227-B1010-B1iJ200200811-201409

GRAY ME.,S33

main69227-B1010-D0iJ210..E4AT201209-201605

DK.RED.MC,R54

main69227-B1010-E1iJ200200811-201409

CHAMPAGNE ME.,T23

main69227-B1010-F0iJ200,210200601-200710

YELLOW,Y09

main69227-B1010-G2iJ200,210200601-200811

LIME GREEN M.M.,G41

main69227-B1010-G3iJ200,210200712-200811

BRITISH GREEN MC.,G37

main69227-B1010-G5iJ200201204-201409

OLIVE ME.SE,G52

main69227-B1010-J0iJ200,210200811-201204

BLUE M.M.,B58

main69227-B1010-R0iJ200,210200601-200811

RED,R40

main69227-B1010-S8iJ200200811-201409

SILVER ME.,S28

main69227-B1010-X7iJ210200811-201605

BLACK M.M.,X07

main69227-B1010-D5iJ200,210..X201007-201204

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-B1010-A1iJ200,210..X200601-200811

WHITE,W20

main69211-B1010-A2iJ200,210..G200601-200712

WHITE,W23

main69211-B1010-A3iJ200200811-201409

WHITE PEARL MC.CS,W24

main69211-B1010-B1iJ210200811-201605

GRAY ME.,S33

main69211-B1010-D0iJ200201209-201409

DK.RED.MC,R54

main69211-B1010-E1iJ210200811-201602

CHAMPAGNE ME.,T23

main69211-B1010-F0iJ200,210200601-200710

YELLOW,Y09

main69211-B1010-G2iJ200,210200601-200811

LIME GREEN M.M.,G41

main69211-B1010-G3iJ200,210200712-200811

BRITISH GREEN MC.,G37

main69211-B1010-G5iJ200201204-201409

OLIVE ME.SE,G52

main69211-B1010-J0iJ200,210200601-200811

BLUE M.M.,B58

main69211-B1010-R0iJ200200811-201409

RED,R40

main69211-B1010-S8iJ200,210200601-200811

SILVER ME.,S28

main69211-B1010-X7iJ200200811-201409

BLACK M.M.,X07

main69211-B1010-D5iJ200,210..X201007-201204

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-B1010-A1iJ200,210..X200601-200811

WHITE,W20

main69211-B1010-A2iJ200,210..G200601-200712

WHITE,W23

main69211-B1010-A3iJ200200811-201409

WHITE PEARL MC.CS,W24

main69211-B1010-B1iJ200200811-201409

GRAY ME.,S33

main69211-B1010-D0iJ210..E4AT201209-201605

DK.RED.MC,R54

main69211-B1010-E1iJ200200811-201409

CHAMPAGNE ME.,T23

main69211-B1010-F0iJ200,210200601-200710

YELLOW,Y09

main69211-B1010-G2iJ200,210200601-200811

LIME GREEN M.M.,G41

main69211-B1010-G3iJ200,210200811-201204

BRITISH GREEN MC.,G37

main69211-B1010-G5iJ200201204-201409

OLIVE ME.SE,G52

main69211-B1010-J0iJ200,210200601-200811

BLUE M.M.,B58

main69211-B1010-R0iJ210200811-201602

RED,R40

main69211-B1010-S8iJ200200811-201409

SILVER ME.,S28

main69211-B1010-X7iJ200,210200601-200811

BLACK M.M.,X07

main69211-B1010-D5iJ200,210..X201007-201204

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-B1020×2iJ200,210200601-200811

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-B1010×2iJ200,210200601-200809

main69242-B1020×2iJ200,210200810-200811

69317CSEAL, DOOR LOCK WIRING HARNESS, RH

main69318-51010iJ200,210200601-200811

main69318-B1010iJ210201511-201605

69318ESEAL, DOOR LOCK WIRING HARNESS, LH

main69318-51010iJ200,210200601-200811

main69318-B1010iJ210201511-201605

69330LOCK ASSY, REAR DOOR, RH

main69050-52120iJ200,210200601-200811

main69050-B4010iJ210201511-201605

69340LOCK ASSY, REAR DOOR, LH

main69060-52120iJ200,210200601-200811

main69060-B4010iJ210201511-201605

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-B2030×2iJ200,210200601-200811

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-B4010iJ200,210200601-200811

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-B4010iJ200200811-201409

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040×2iJ200,210200601-200811

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-B4010iJ200,210200601-200811

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-B4010iJ200,210200601-200811

9004164030

main90041-64030

9014850003

main90148-50003

9014860083

main90148-60083

9014880027

main90148-80027

9018905003

main90189-05003

9054104027

main90541-04027

30 parts on this diagram · 1 diagram in section
