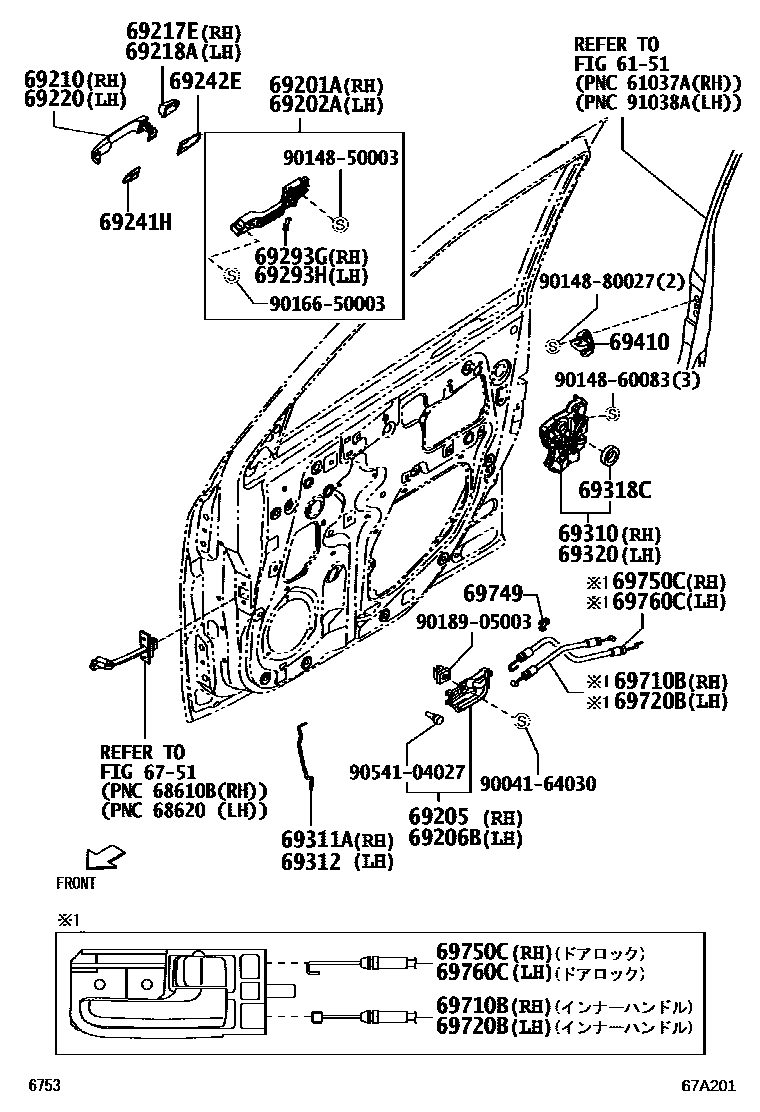

FRONT DOOR LOCK & HANDLE
6151
6751
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
sub69210-B1030
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69218ACOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9004164030
main90041-64030
9014850003
main90148-50003
9014860083
main90148-60083
9014880027
main90148-80027
9016650003
main90166-50003
9018905003
main90189-05003
9054104027
main90541-04027
32 parts on this diagram · 1 diagram in section
