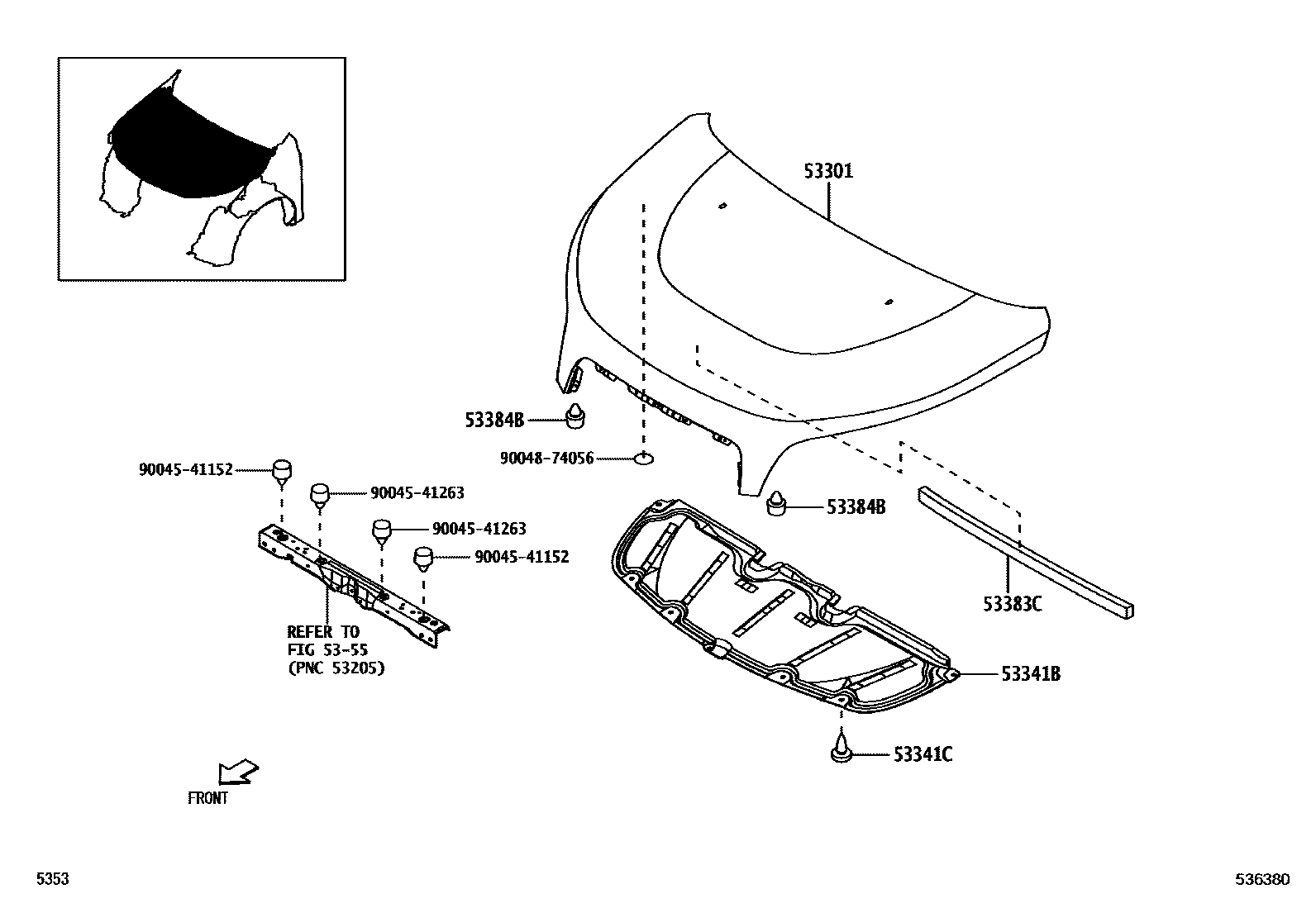

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-B4010iJ200,210200601-200705

main53301-B4020iJ200,210200705-200811

53341BINSULATOR, HOOD

main53341-B4010iJ200,210200601-200811

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280×7iJ200,210200601-200811

main90467-09050×7iJ200201401-201409

53383CSEAL, HOOD TO COWL TOP

main88578-B4040iJ200,210200708-200802

53384BCUSHION, HOOD, CENTER

main53384-B1010×2iJ200,210200601-200811

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

9004541152

main90045-41152

9004541263

main90045-41263

9004874056

main90048-74056

9 parts on this diagram · 3 diagrams in section
