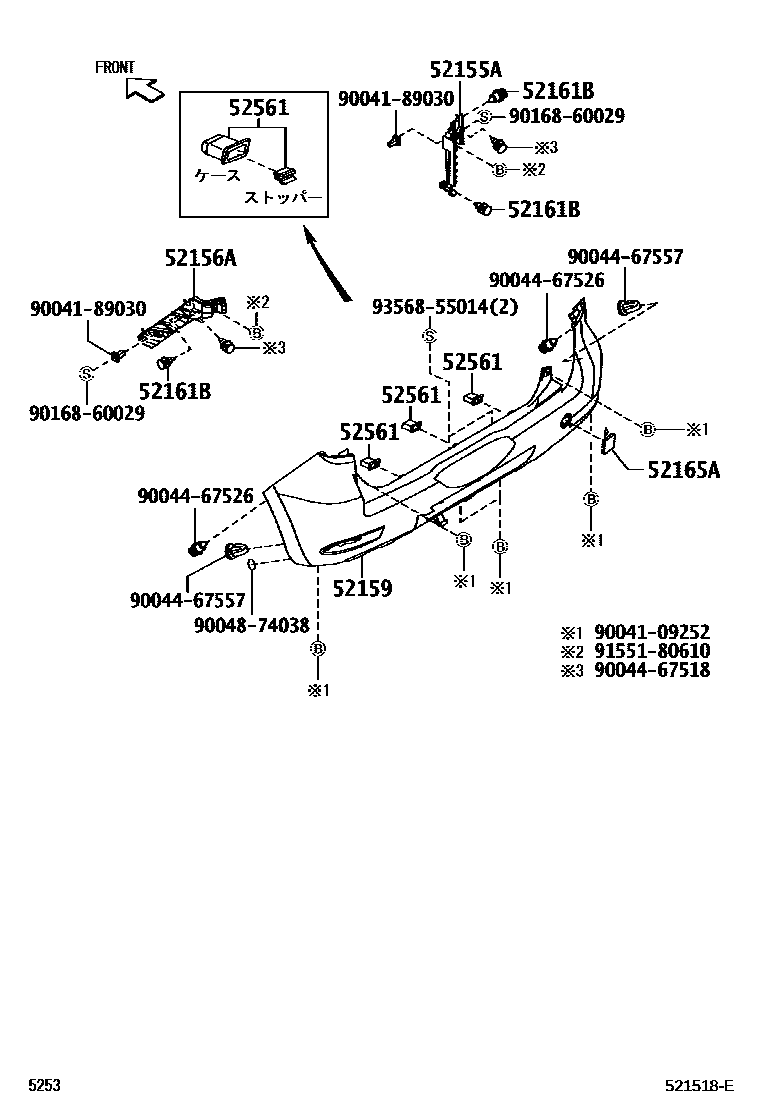

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B4010iJ200,210200601-200811

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B4010iJ200,210200601-200811

52159COVER, REAR BUMPER

main52159-B4030-A1iJ200,210200601-200609

WHITE,W23

main52159-B4030-B0iJ200,210200601-200609

SILVER ME.,S28

main52159-B4030-B1iJ200,210200601-200609

GRAY ME.,S33

main52159-B4030-C0iJ200,210200601-200609

BLACK M.M.,X07

main52159-B4030-D0iJ200,210200601-200609

RED,R40

main52159-B4030-F0iJ200,210200601-200609

YELLOW,Y09

main52159-B4030-G0iJ200,210200601-200609

LIME GREEN M.M.,G41

main52159-B4030-J0iJ200,210200601-200609

BLUE M.M.,B58

main52159-B4100-A0iJ200,210200609-200712

WHITE,W23

main52159-B4100-A1iJ200,210200712-200811

WHITE PEARL MC.CS,W24

main52159-B4100-B0iJ200,210200609-200811

SILVER ME.,S28

main52159-B4100-B1iJ200,210200609-200811

GRAY ME.,S33

main52159-B4100-C0iJ200,210200609-200811

BLACK M.M.,X07

main52159-B4100-D0iJ200,210200609-200811

RED,R40

main52159-B4100-F0iJ200,210200609-200710

YELLOW,Y09

main52159-B4100-G0iJ200,210200609-200811

LIME GREEN M.M.,G41

main52159-B4100-G1iJ200,210200712-200811

BRITISH GREEN MC.,G37

main52159-B4100-J0iJ200,210200609-200811

BLUE M.M.,B58

main52159-B4190-A1iJ210200811-201605

WHITE PEARL MC.CS,W24

main52159-B4190-B0iJ200200811-201409

SILVER ME.,S28

main52159-B4190-B1iJ200200811-201409

GRAY ME.,S33

main52159-B4190-C0iJ200200811-201409

BLACK M.M.,X07

main52159-B4190-D0iJ200200811-201409

RED,R40

main52159-B4190-D1iJ200,210..X201007-201204

BROWN MC.CS,R59

main52159-B4190-D2iJ210..E4AT;J210..X..5F201204-201605

DK.RED.MC,R54

main52159-B4190-E0iJ210200811-201602

CHAMPAGNE ME.,T23

main52159-B4190-G0iJ200,210200811-201204

BRITISH GREEN MC.,G37

main52159-B4190-G1iJ210201204-201602

OLIVE ME.SE,G52

main52159-B4190-J0iJ200,210200811-201204

BLUE M.M.,B58

52161BPIECE, REAR BUMPER

main90044-68320×3iJ200,210200601-200811

52165ACOVER, REAR BUMPER, UPR RH

main52165-B4010-A1iJ200,210200601-200608

WHITE,W23

main52165-B4010-B0iJ200,210200601-200608

SILVER ME.,S28

main52165-B4010-B1iJ200,210200601-200608

GRAY ME.,S33

main52165-B4010-C0iJ200,210200601-200608

BLACK M.M.,X07

main52165-B4010-D0iJ200,210200601-200608

RED,R40

main52165-B4010-F0iJ200,210200601-200608

YELLOW,Y09

main52165-B4010-G0iJ200,210200601-200608

LIME GREEN M.M.,G41

main52165-B4010-J0iJ200,210200601-200608

BLUE M.M.,B58

main52165-B4030-A0iJ200,210200609-200712

WHITE,W23

main52165-B4030-A1iJ200,210200712-200811

WHITE PEARL MC.CS,W24

main52165-B4030-B0iJ200,210200609-200811

SILVER ME.,S28

main52165-B4030-B1iJ200,210200609-200811

GRAY ME.,S33

main52165-B4030-C0iJ200,210200609-200811

BLACK M.M.,X07

main52165-B4030-D0iJ200,210200609-200811

RED,R40

main52165-B4030-F0iJ200,210200609-200710

YELLOW,Y09

main52165-B4030-G0iJ200,210200609-200811

LIME GREEN M.M.,G41

main52165-B4030-G1iJ200,210200712-200811

BRITISH GREEN MC.,G37

main52165-B4030-J0iJ200,210200609-200811

BLUE M.M.,B58

main52165-B4060-A1iJ210200811-201605

WHITE PEARL MC.CS,W24

main52165-B4060-B0iJ210200811-201605

SILVER ME.,S28

main52165-B4060-B1iJ210200811-201605

GRAY ME.,S33

main52165-B4060-C0iJ200200811-201409

BLACK M.M.,X07

main52165-B4060-D0iJ200200811-201409

RED,R40

main52165-B4060-D1iJ200,210..X201007-201204

BROWN MC.CS,R59

main52165-B4060-D2iJ200201204-201409

DK.RED.MC,R54

main52165-B4060-E0iJ200200811-201409

CHAMPAGNE ME.,T23

main52165-B4060-G0iJ200,210200811-201204

BRITISH GREEN MC.,G37

main52165-B4060-G1iJ210201204-201602

OLIVE ME.SE,G52

main52165-B4060-J0iJ200,210200811-201204

BLUE M.M.,B58

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-B1010×3iJ200,210200601-200811

9004109252

main90041-09252

9004189030

main90041-89030

9004467518

main90044-67518

9004467526

main90044-67526

9004467557

main90044-67557

9004874038

main90048-74038

9016860029

main90168-60029

9155180610

main91551-80610

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
