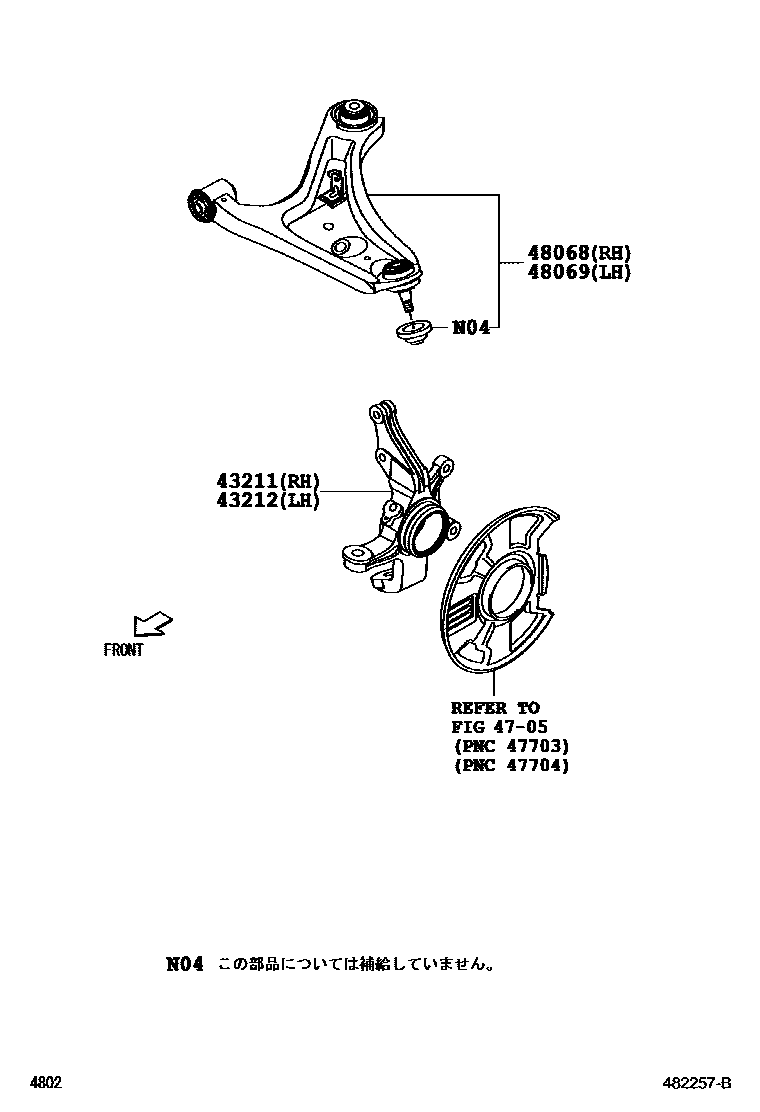

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B0010iJ200,210200707-200811

main43211-B4010iJ200,210200601-200706

43212KNUCKLE, STEERING, LH

main43212-B0010iJ210200811-201605

main43212-B4010iJ200,210200601-200706

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B4010iJ200,210200601-200610

main48068-B4011iJ200,210200611-200811

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B4010iJ200,210200601-200610

main48069-B4011iJ200,210200611-200811

5 parts on this diagram · 1 diagram in section
