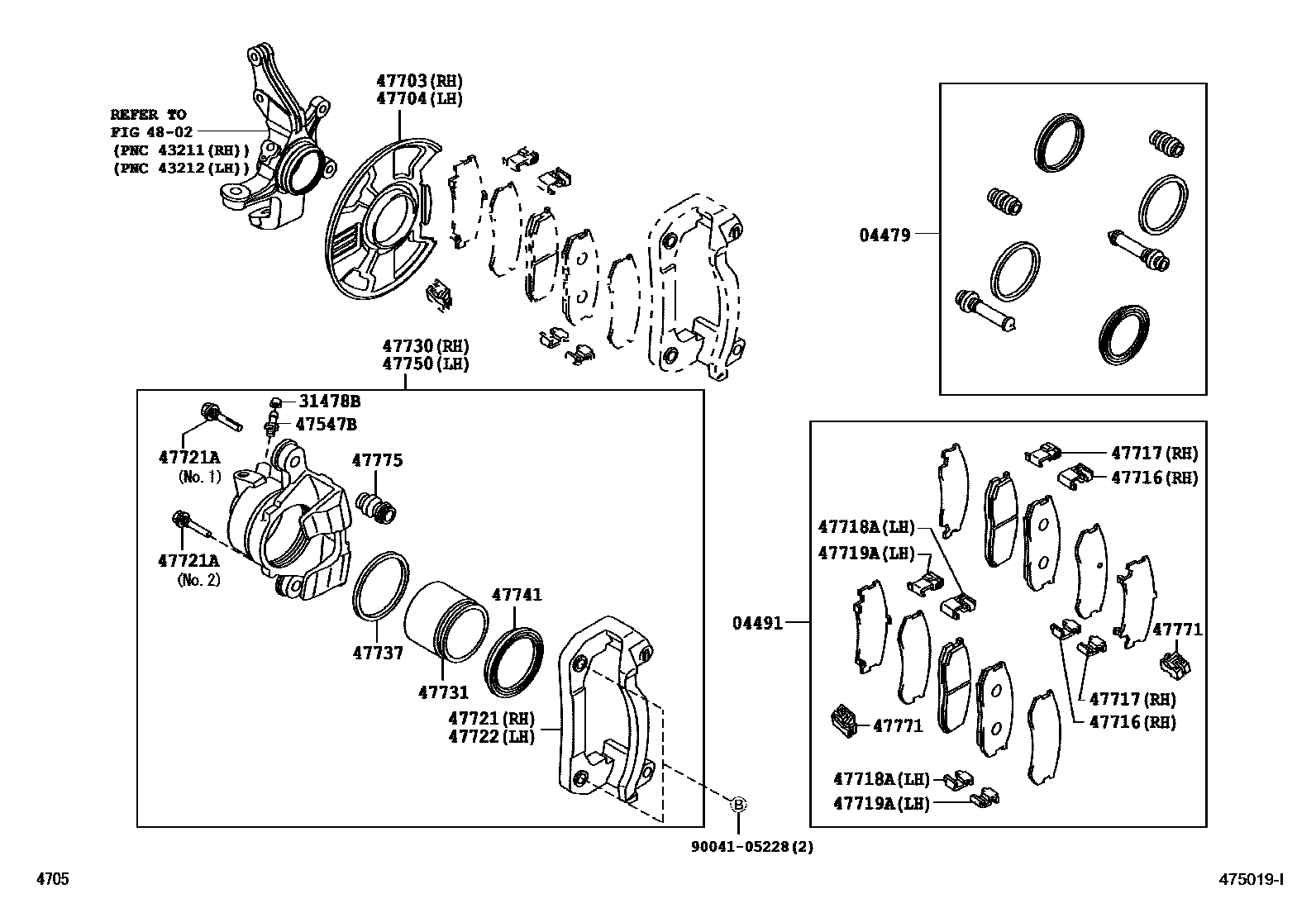

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B4020iJ200,210200601-200811

main04478-B4050iJ210201302-201605

04491PAD KIT, DISC BRAKE, FRONT

main04465-B4030iJ200,210200601-200801

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-87501×2iJ200,210200601-200811

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87505×2iJ200,210200601-200811

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-87401iJ200,210200601-200811

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47781-87401iJ200,210200601-200811

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47736-87401×2iJ200,210200601-200811

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47738-87401×2iJ200,210200601-200811

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47736-87401×2iJ210200811-201605

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47738-87401×2iJ210200811-201605

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-87401iJ210..E4AT200811-201302

main47721-B4010iJ210201302-201605

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-87503×2iJ200,210200601-200705

main47715-87504×2iJ200,210200601-200705

main47715-B4010×2iJ210200811-201605

main47715-B4020×2iJ200200811-201409

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-87401iJ200,210200601-200811

main47722-B4010iJ210201302-201605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-87401iJ200,210200811-201002

main47730-B4011iJ210201302-201605

main47730-B4030iJ200;J210..5F201003-201409

main47730-B4010iJ210..5F; J210..E4AT200601-200811

47731PISTON, FRONT DISC BRAKE

main47731-87401×2iJ200,210200601-200811

main47731-B4010×2iJ200201003-201409

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-87401×2iJ200,210200601-200811

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-87401×2iJ200200811-201409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-87401iJ200,210200601-200811

main47750-B4011iJ210201302-201605

main47750-B4030iJ200;J210..5F201003-201409

main47750-B4010iJ210..5F; J210..E4AT200601-200811

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-87401×2iJ200,210200601-200811

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-87401×2iJ200,210200601-200811

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9004105228

main90041-05228

22 parts on this diagram · 1 diagram in section
