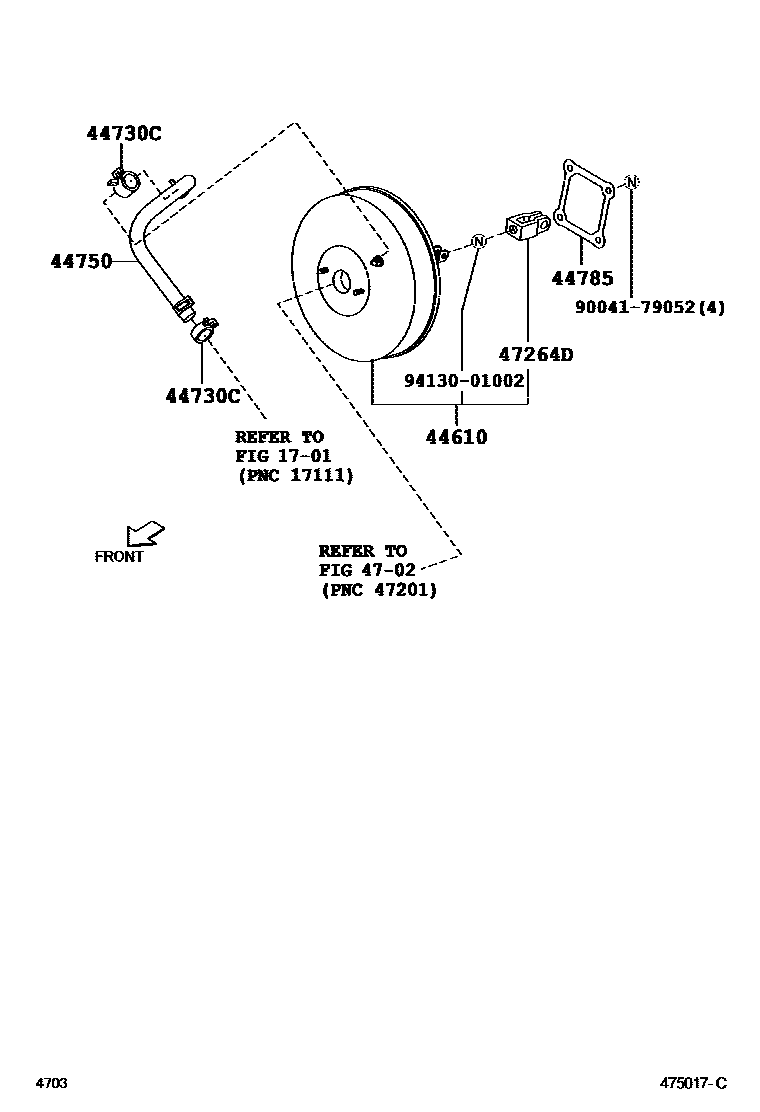

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B4010iJ200,210200601-200811

44730CCLIP(FOR VACUUM HOSE)

main90044-67161×2iJ200,210200601-200811

44750HOSE ASSY, VACUUM

main44750-B4010iJ200,210200601-200811

44785GASKET, BRAKE BOOSTER

main47275-B4010iJ200,210200601-200811

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-87401iJ200,210200601-200811

9004179052

main90041-79052

9413001002

main94130-01002

9 parts on this diagram · 1 diagram in section
