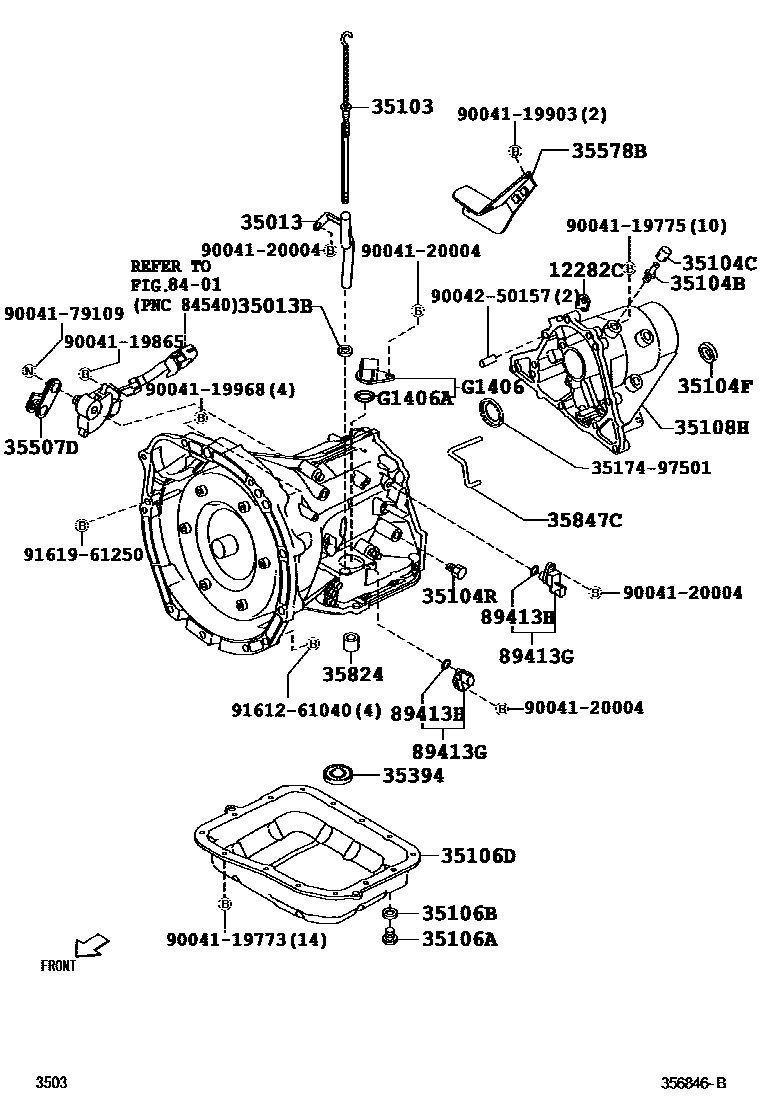

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1

12282CHANGER, ENGINE, NO.2

main12282-B5030i3SZVE..J200200601-200811

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-87402iJ200,210..E4AT200601-200811

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iJ200,210..E4AT200601-200811

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-87403iJ200,210..E4AT200601-200811

35104BPLUG, BREATHER, NO.1 (ATM)

main90049-15048iJ200; J210..E4AT200601-200811

35104CPLUG, BREATHER, NO.2 (ATM)

main90049-15050iJ200; J210..E4AT200601-200811

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90043-11285iJ200200811-201409

main90043-16023iJ210..E4AT200601-200811

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90043-45040×8iJ210..E4AT200811-201605

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iJ200,210..E4AT200601-200811

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iJ200,210..E4AT200601-200811

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-97501iJ200,210..E4AT200811-200903

main35106-B1020iJ200200903-201409

35108HHOUSING SUB-ASSY, EXTENSION

main35108-B0011iJ200200601-200811

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-87502iJ200,210..E4AT200601-200811

main33449-B2010iJ200200907-201409

35507DLEVER, TRANSMISSION CONTROL SHAFT

main35507-87402iJ200,210..E4AT200601-200811

35578BBRACKET, TRANSMISSION CONTROL CABLE

main33524-B0010iJ200,210..E4AT200601-200811

35824SEAL, BRAKE CYLINDER

main35824-97501iJ200,210..E4AT200601-200811

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-97501iJ200200601-200811

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97202×2iJ200,210..E4AT200601-200811

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iJ200,210..E4AT200601-200811

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG140697201iJ200,210..E4AT200601-200811

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main90043-01281iJ200,210..E4AT200601-200811

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

9004119773

main90041-19773

9004119775

main90041-19775

9004119865

main90041-19865

9004119903

main90041-19903

9004119968

main90041-19968

9004120004

main90041-20004

9004179109

main90041-79109

9004250157

main90042-50157

9161261040

main91612-61040

9161961250

main91619-61250

33 parts on this diagram · 4 diagrams in section
