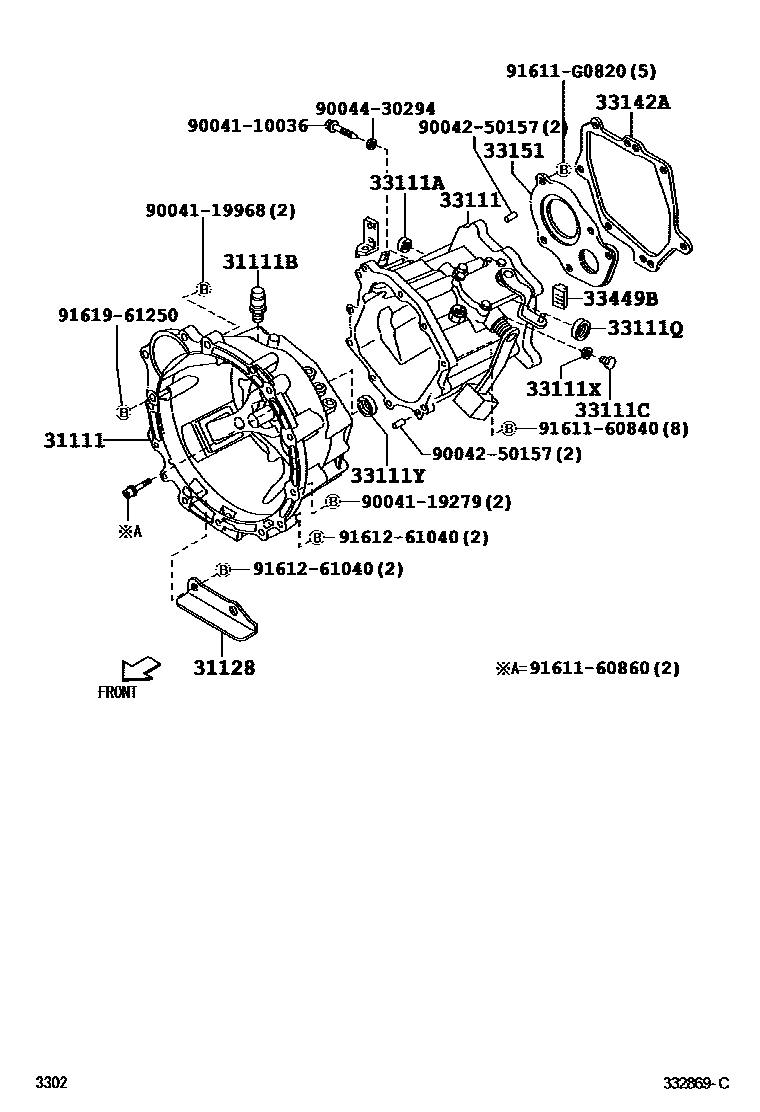

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31111BPLUG(FOR CLUTCH HOUSING)
31128COVER, CLUTCH HOUSING UNDER
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111QSEAL, OIL(FOR TRANSMISSION CASE)
33111XGASKET, TRANSMISSION CASE PLUG
33111YSEAL, OIL(FOR TRANSMISSION CASE)
33142AGASKET, EXTENSION HOUSING
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33449BMAGNET, TRANSMISSION
9004110036
main90041-10036
9004119279
main90041-19279
9004119968
main90041-19968
9004250157
main90042-50157
9004430294
main90044-30294
9161160840
main91611-60840
9161160860
main91611-60860
91611G0820
main91611-G0820
9161261040
main91612-61040
9161961250
main91619-61250
22 parts on this diagram · 1 diagram in section
