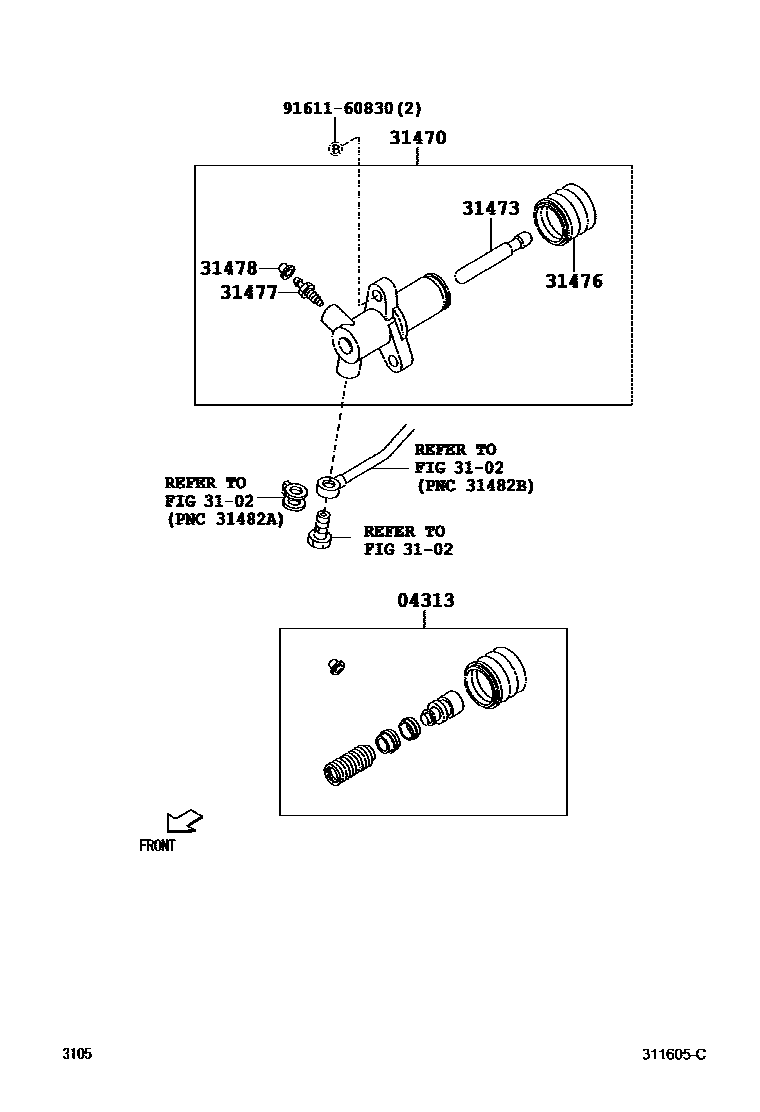

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14030iJ210..5F200601-200811

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-87401iJ210..5F200601-200607

main31470-B0010iJ210..5F200608-200811

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60170iJ210..5F200601-200811

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iJ210..5F200601-200811

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJ210..5F200601-200811

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJ210..5F200601-200811

9161160830

main91611-60830

8 parts on this diagram · 1 diagram in section
