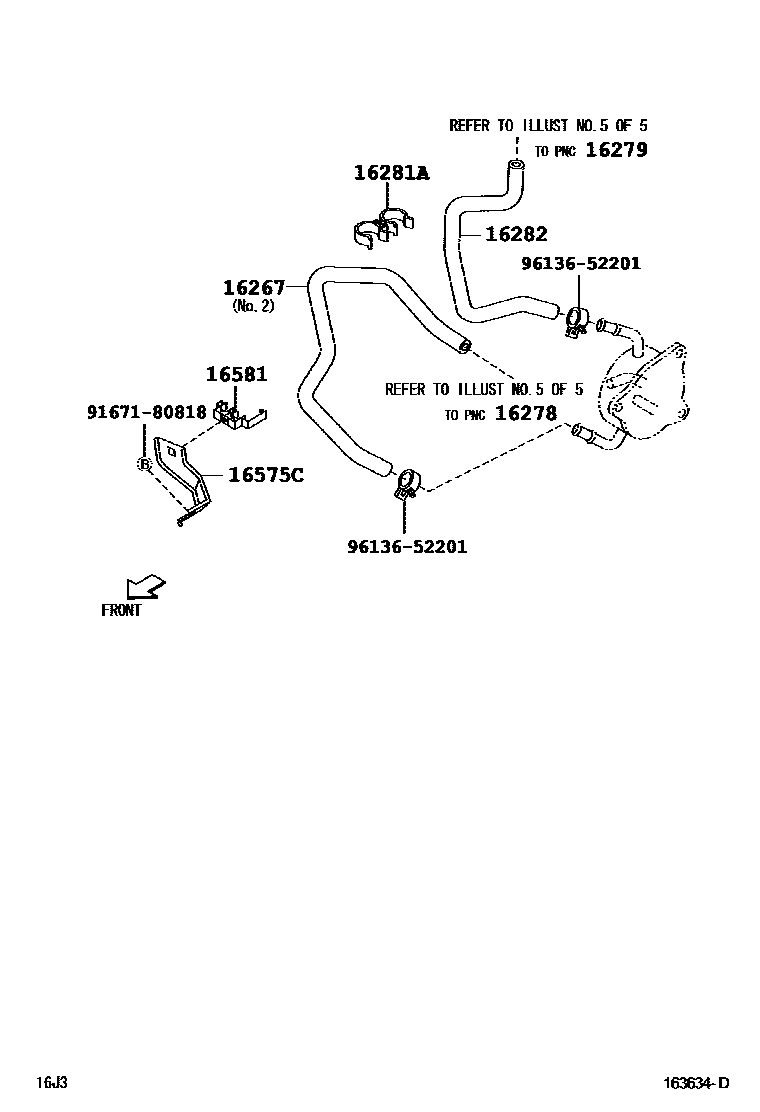

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16267HOSE, WATER BY-PASS, NO.3

main16267-97401i3SZVE..J200200811-201409

main16267-B4010i3SZVE..J210..E4AT200811-201605

16278PIPE, WATER BY-PASS, NO.2

main16278-B1010i3SZVE..J200,210200601-200811

16279PIPE, WATER BY-PASS, NO.3

main16279-B1010i3SZVE..J200,210200601-200811

main16279-B4010i3SZVE..J210..E4AT200811-201605

16281HOSE, WATER BY-PASS, NO.4

main16281-B1010i3SZVE..J200,210200601-200811

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main90044-64857i3SZVE..J200200811-201409

16282HOSE, WATER BY-PASS, NO.5

main16282-B4010i3SZVE..J200200811-201409

16575CBRACKET, WATER HOSE CLAMP, NO.1

main16575-B4010i3SZVE..J200200811-201409

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-B4010i3SZVE..J200200811-201409

9167180818

main91671-80818

9613652201

main96136-52201

10 parts on this diagram · 5 diagrams in section
