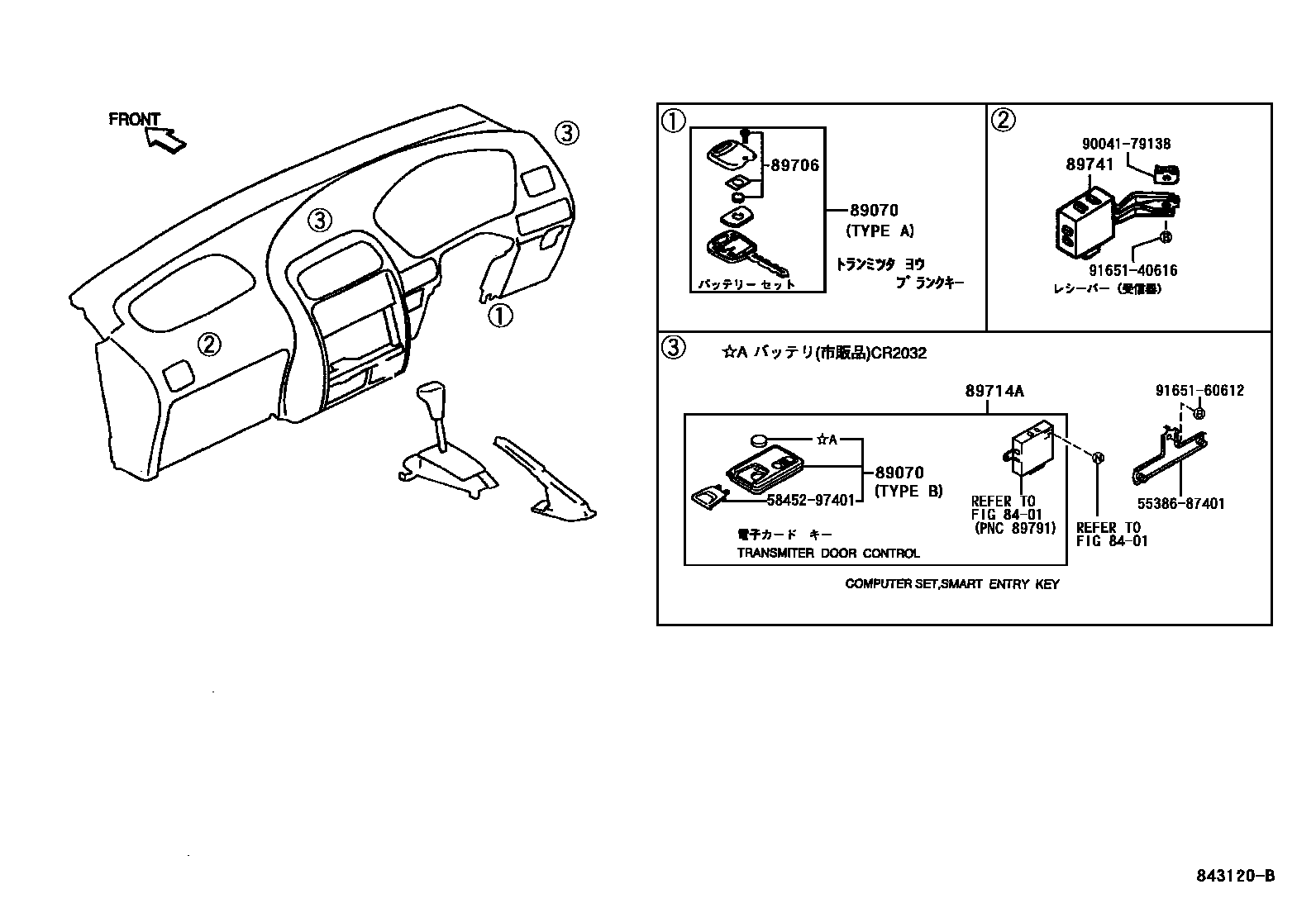

WIRELESS DOOR LOCK

0001 1 0002 1��(�- ��-����)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89070TRANSMITTER ASSY, DOOR CONTROL

main89071-87403iJ10#,122199905

main89071-97405iJ102,122..4AT200112

89706BATTERY SET, TRANSMITTER

main89706-87401iJ10#,122199905

89714ACOMPUTER SET, SMART ENTRY KEY

main89714-87406iJ102,122..4AT200112

89741RECEIVER, DOOR CONTROL

main89741-87401iJ100199905-200005

main89741-87402iJ102,122200005

5538687401BRACKET, TRANSCEIVER MOUNTING, RH

main55386-87401

5845297401LID, BATTERY BOX

main58452-97401

9004179138

main90041-79138

9165140616

main91651-40616

9165160612

main91651-60612

10 parts on this diagram · 2 diagrams in section
