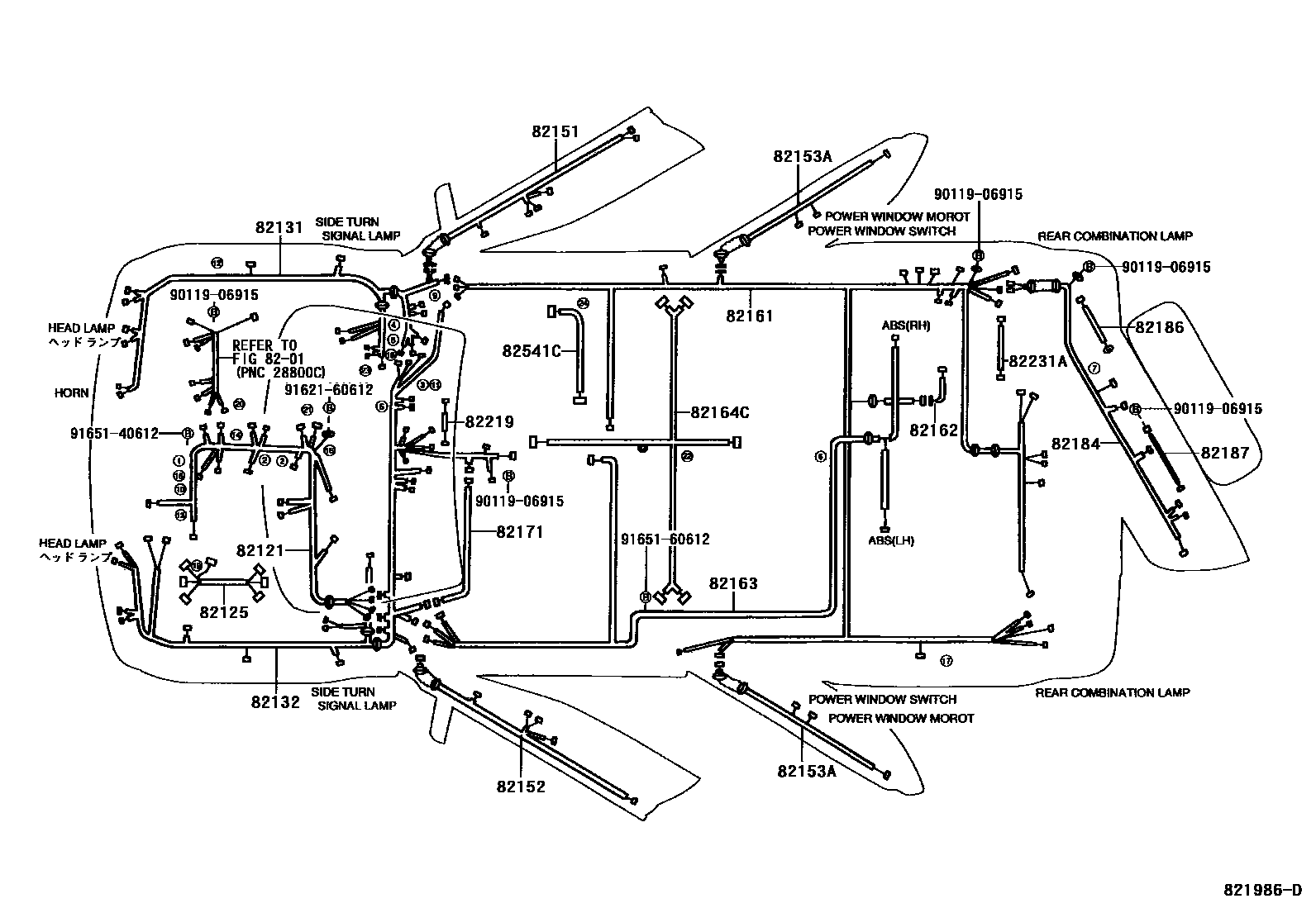

WIRING & CLAMP
8201BATTERY & BATTERY CABLE
82121WIRE, ENGINE
82125WIRE, TRANSMISSION
82131WIRE, COWL
82132WIRE, COWL, NO.2
82151WIRE, FRONT DOOR, RH
82152WIRE, FRONT DOOR, LH
82153AWIRE, REAR DOOR, RH
82161WIRE, FLOOR
82162WIRE, FLOOR, NO.2
82163WIRE, FLOOR, NO.3
82164CWIRE, FLOOR, NO.4
82186WIRE, REAR WINDOW, NO.1
82187WIRE, REAR WINDOW, NO.2
82219WIRE, THERMO SENSOR
82231AWIRE, BRAKE WARNING SWITCH
82541CWIRE, SEAT BELT WARNING
9011906915
main90119-06915
9162160612
main91621-60612
9165140612
main91651-40612
9165160612
main91651-60612
23 parts on this diagram · 3 diagrams in section
