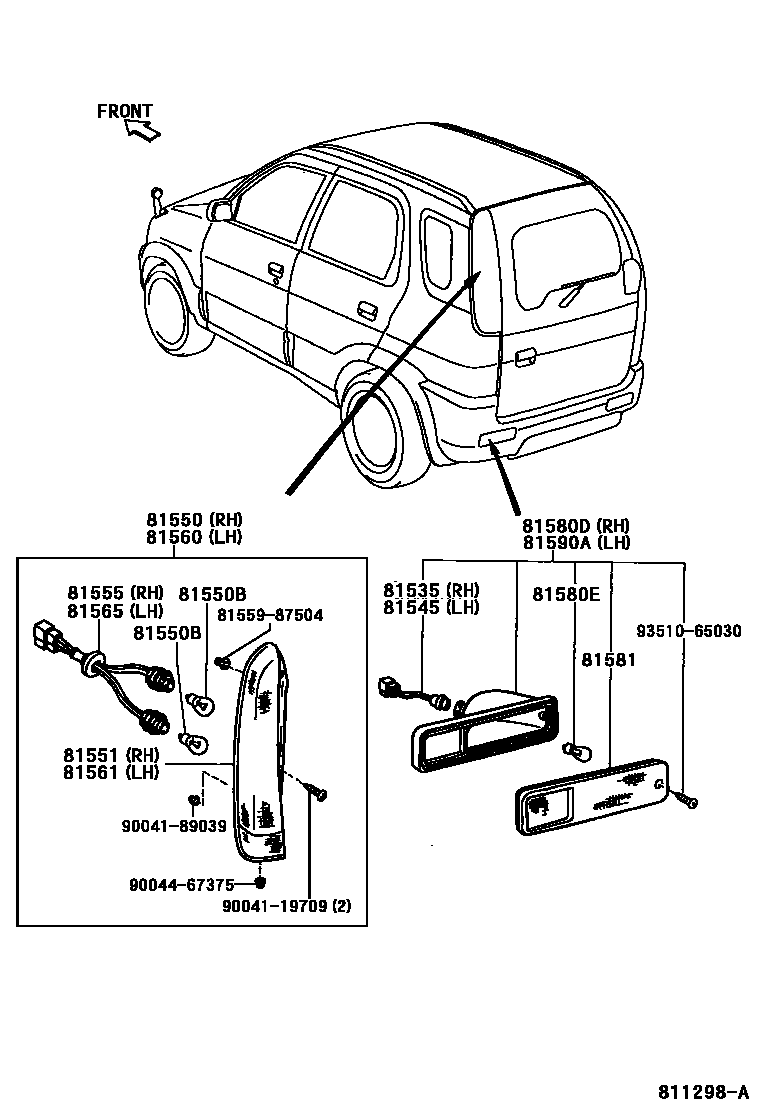

REAR COMBINATION LAMP

81535SOCKET & WIRE, REAR TURN SIGNAL LAMP, RH

main81565-87403iJ10#,122199905

81545SOCKET & WIRE, REAR TURN SIGNAL LAMP, LH

main81565-87403iJ10#,122199905

81550LAMP ASSY, REAR COMBINATION, RH

main81550-87404iJ100199905-200005

main81550-87407iJ102,122200005

81550BBULB(FOR REAR COMBINATION LAMP)

main90049-51128×2iJ102,122200005

main90049-51158×2iJ102,122200402

main99132-11210×2iJ100199905-200005

main99132-21210×2iJ10#,122199905-200401

81551LENS, REAR COMBINATION LAMP, RH

main81551-87401iJ100199905-200005

main81551-87406iJ102,122200005

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-87401iJ102,122200005

main81565-87401iJ100199905-200005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-87404iJ100199905-200005

main81560-87407iJ102,122200005

81561LENS, REAR COMBINATION LAMP, LH

main81561-87401iJ100199905-200005

main81561-87406iJ102,122200005

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-87404iJ102,122200005

main81566-87402iJ100199905-200005

81580DLAMP ASSY, REAR, RH

main81502-87401iJ10#,122199905

81580EBULB

main90049-51168×2iJ102,122200404

main99132-11210×2iJ10#,122199905-200403

81581LENS, REAR LAMP

main81671-87401×2iJ10#,122199905

81590ALAMP ASSY, REAR, LH

main81503-87401iJ10#,122199905

8155987504MOULDING, REAR COMBINATION LAMP, RH

main81559-87504

9004119709

main90041-19709

9004189039

main90041-89039

9004467375

main90044-67375

9351065030

main93510-65030

18 parts on this diagram · 1 diagram in section
