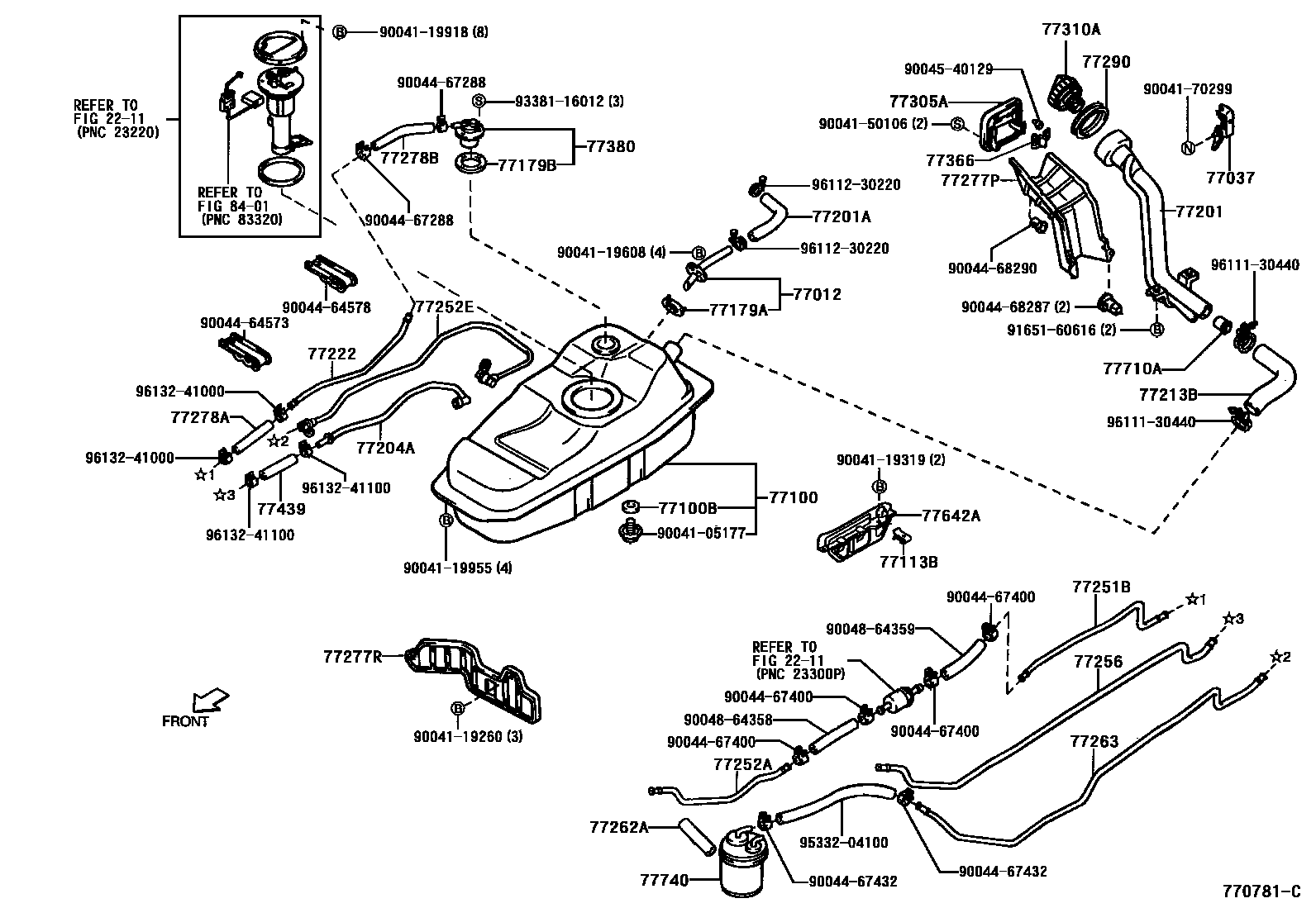

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-87401iJ10#,122199905-200408

main77012-87403iJ102,122200409

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-87501iJ10#,122199905

77100TANK ASSY, FUEL

main77001-87401iJ10#,122199905-200212

main77001-87402iJ102,122200405

main77001-87403iJ102,122200301-200404

77100BGASKET(FOR FUEL TANK)

main90044-30291iJ10#,122199905

77113BPLATE, FUEL TANK SIDE

main77113-87401×2iJ10#,122199905

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-87401iJ10#,122199905

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-87402iJ10#,122199905

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-87405iJ10#,122199905-200209

main77201-87407iJ102,122200210

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-87401iJ102,122200112

main90048-64313iJ10#,122199905-200112

77204ATUBE, FUEL TANK RETURN

main77204-87401iJ100199905-200005

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-87401iJ10#,122199905-200112

main77213-87402iJ102,122200112

77222TUBE, FUEL TANK BREATHER, NO.2

main77222-87401iJ10#,122199905

77251BTUBE, FUEL MAIN

main77251-87401iJ100199905-200005

main77251-87404iJ102,122200005

77252ATUBE, FUEL MAIN, NO.2

main77252-87401iJ100199905-200005

77252ETUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)

main77203-87401iJ10#,122199905

77256TUBE, FUEL EMISSION, NO.3

main77256-87401iJ100199905-200005

77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)

main77759-87401iJ102,122200112

main90044-47043iJ10#,122199905-200112

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-87402iJ100199905-200005

main77263-87403iJ102,122200005

77277PPROTECTOR(FOR FUEL RETURN HOSE)

main77277-87401iJ10#,122199905

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77631-87401iJ10#,122199905

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main90048-64356iJ10#,122199905

77278BHOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)

main90048-64182iJ10#,122199905

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77293-87401iJ10#,122199905

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-87401iJ10#,122199905

77310ACAP ASSY, FUEL TANK

main77310-97201iJ10#,122199905-200112

main77310-97402iJ102,122200112

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-87203iJ10#,122199905

77380VALVE ASSY, FUEL CUT OFF

main77380-87401iJ10#,122199905

77439HOSE, FUEL RETURN

main90048-64271iJ100199905-200005

77642APROTECTOR, FUEL TANK, NO.2

main77642-87401iJ10#,122199905

77710AVALVE ASSY, FUEL TANK SOLENOID VALVE MAIN

main77710-87401iJ10#,122199905

77740CANISTER ASSY, CHARCOAL

main77740-87401iJ100199905-200005

main77740-87403iJ102,122200005-200112

main77740-87404iJ102,122200112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105177

main90041-05177

9004119260

main90041-19260

9004119319

main90041-19319

9004119608

main90041-19608

9004119918

main90041-19918

9004119955

main90041-19955

9004150106

main90041-50106

9004170299

main90041-70299

9004464573

main90044-64573

9004464578

main90044-64578

9004467288

main90044-67288

9004467400

main90044-67400

9004467432

main90044-67432

9004468287

main90044-68287

9004468290

main90044-68290

9004540129

main90045-40129

9004864358

main90048-64358

9004864359

main90048-64359

9165160616

main91651-60616

9338116012

main93381-16012

9533204100

main95332-04100

9611130440

main96111-30440

9611230220

main96112-30220

9613241000

main96132-41000

9613241100

main96132-41100

58 parts on this diagram · 4 diagrams in section
