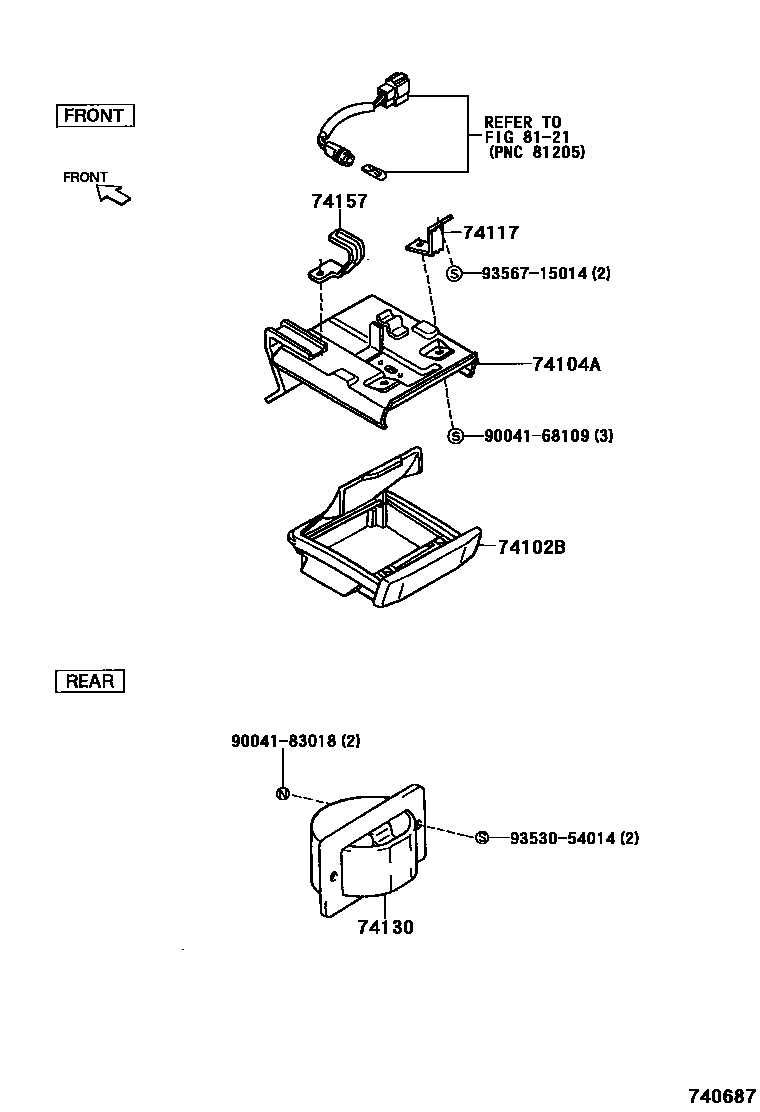

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-87203-01iJ100199905-199908

BLACK,TRIMS

main74102-87401-01iJ10#,122199909

BLACK,TRIMS

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-87207iJ10#,122199905

74117BRACKET, FRONT ASH RECEPTACLE MOUNTING

main74117-87401×2iJ10#,122199905

74130RECEPTACLE ASSY, REAR ASH

main74106-87201-53iJ10#,122199905-200011

DARK GRAY,TRIMS

main74106-87201-93iJ102,122200011

GRAY,TRIMS

74157BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH

main74157-87401iJ10#,122199905

8121INTERIOR LAMP

→ Go to FIG 81-21

9004168109

main90041-68109

9004183018

main90041-83018

9353054014

main93530-54014

9356715014

main93567-15014

10 parts on this diagram · 1 diagram in section
