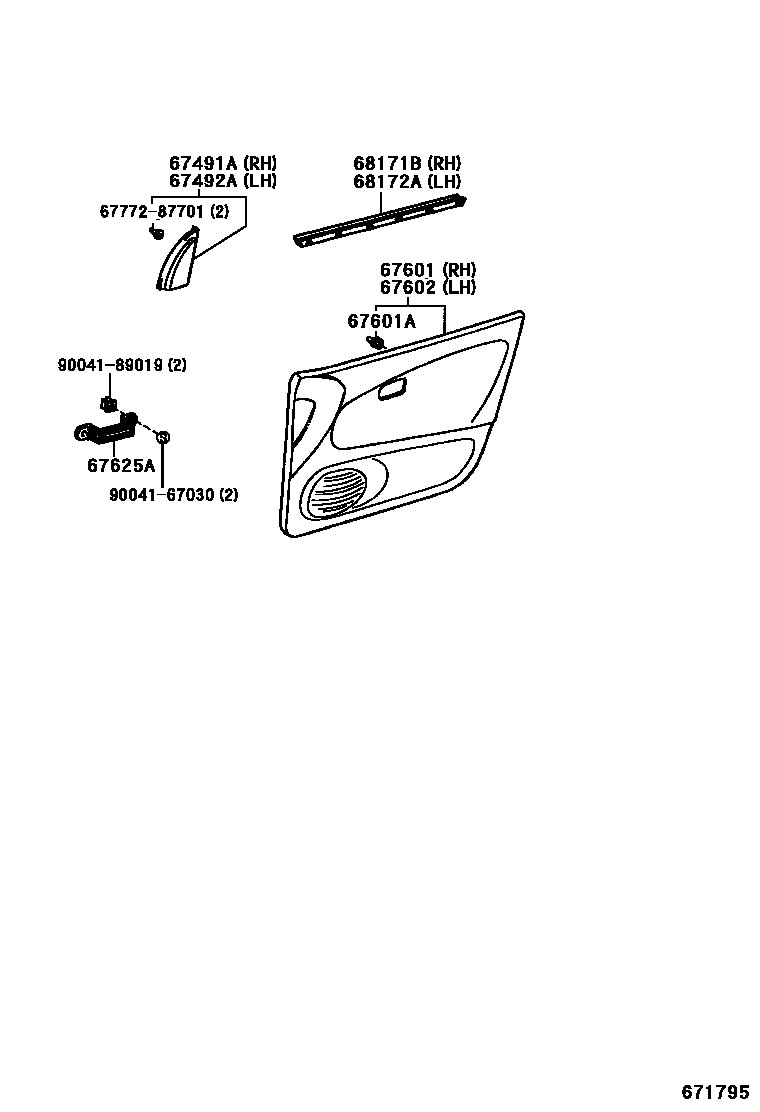

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-87401iJ10#,122199905

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-87401iJ10#,122199905

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67605-87408-03iJ100199905-200005

GRAY,TRIMS

main67605-87409-03iJ100..Q199905-200005

main67605-87414-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main67605-87415-03iJ102,122..Q..EFI; J102..TBO200008-200112

main67605-87420-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main67605-87421-03iJ102,122..Q..EFI; J102..TBO200112-200308

main67605-87427-03iJ102,122..EFI200308

GRAY,TRIMS

main67605-87428-03iJ102,122..4AT..Q..EFI; J102..TBO200308

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-87204×16iJ10#,122199905

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67606-87406-03iJ100199905-200005

GRAY,TRIMS

main67606-87407-03iJ100..Q199905-200005

main67606-87413-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main67606-87414-03iJ102,122..Q..EFI200005-200112

main67606-87419-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main67606-87420-03iJ102,122..Q..EFI; J102..TBO200112-200308

main67606-87426-03iJ102,122..EFI200308

GRAY,TRIMS

main67606-87427-03iJ102,122..4AT..Q..EFI; J102..TBO200308

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-87401×2iJ100199905-200005

main67625-87402iJ102,122200005

main67635-87401iJ102,122200005

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-87401iJ10#,122199905

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68171-87401iJ10#,122199905

6777287701WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87701

9004167030

main90041-67030

9004189019

main90041-89019

11 parts on this diagram · 5 diagrams in section
