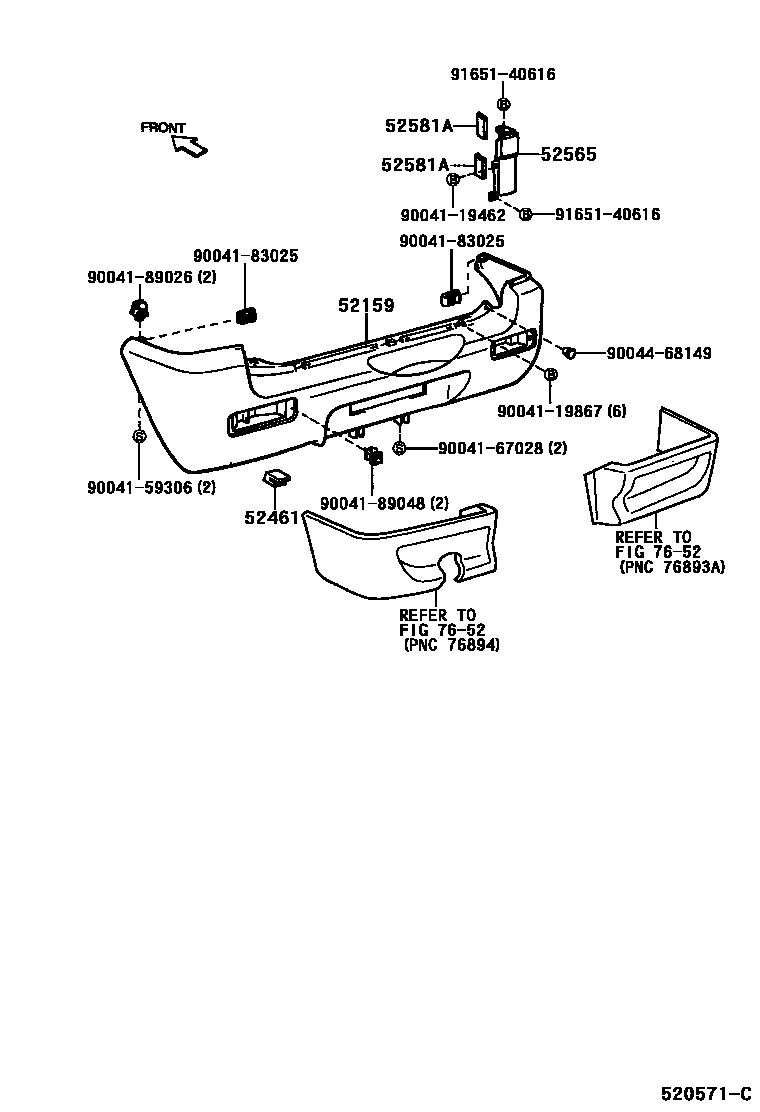

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-87402-01iJ10#,122..EFI199905-200111

BLACK M.,6A5

main52159-87402-02iJ100199905-200005

PURE RED,R19

main52159-87402-03iJ10#,122..EFI199905-200111

SILVER M.,S07

main52159-87402-04iJ100199905-200005

MARINE BLUE M.M.,B44

main52159-87402-08iJ100199905-200005

WHITE,W19

main52159-87402-12iJ102,122..EFI200005-200111

RED,R29

main52159-87402-14iJ102,122..EFI200005-200111

BLUE MICA M,B50

main52159-87402-22iJ102,122..EFI200005-200111

LIGHT ROSE M,T16

main52159-87407-01iJ100..Q199905-200005

main52159-87407-03iJ100..Q199905-200005

main52159-87407-08iJ100..Q199905-200005

main52159-87408-01iJ102,122..Q..EFI; J102..TBO200008-200111

main52159-87408-03iJ102,122..Q..EFI; J102..TBO200008-200111

main52159-87408-08iJ102,122..Q..EFI; J102..TBO200008-200111

main52159-87412-01iJ102,122..EFI200112

BLACK M.,6A5

main52159-87412-02iJ102,122..EFI200112

RED,R29

main52159-87412-03iJ102,122..EFI200112

SILVER M.,S07

main52159-87412-04iJ102,122..EFI200112

BLUE MICA M,B50

main52159-87412-05iJ102,122..EFI200112

LIGHT ROSE M,T16

main52159-87412-08iJ102,122..EFI200112

WHITE,W09

main52159-87416-01iJ102,122..Q..EFI; J102..TBO200112

main52159-87416-03iJ102,122..Q..EFI; J102..TBO200112

main52159-87416-08iJ102,122..Q..EFI; J102..TBO200112

52461PAD, REAR BUMPER, CENTER

main52461-87401iJ10#,122199905

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-87401iJ10#,122199905

52581APROTECTOR, REAR BUMPER FILLER

main52581-87401×2iJ10#,122199905

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

9004119462

main90041-19462

9004119867

main90041-19867

9004159306

main90041-59306

9004167028

main90041-67028

9004183025

main90041-83025

9004189026

main90041-89026

9004189048

main90041-89048

9004468149

main90044-68149

9165140616

main91651-40616

14 parts on this diagram · 1 diagram in section
