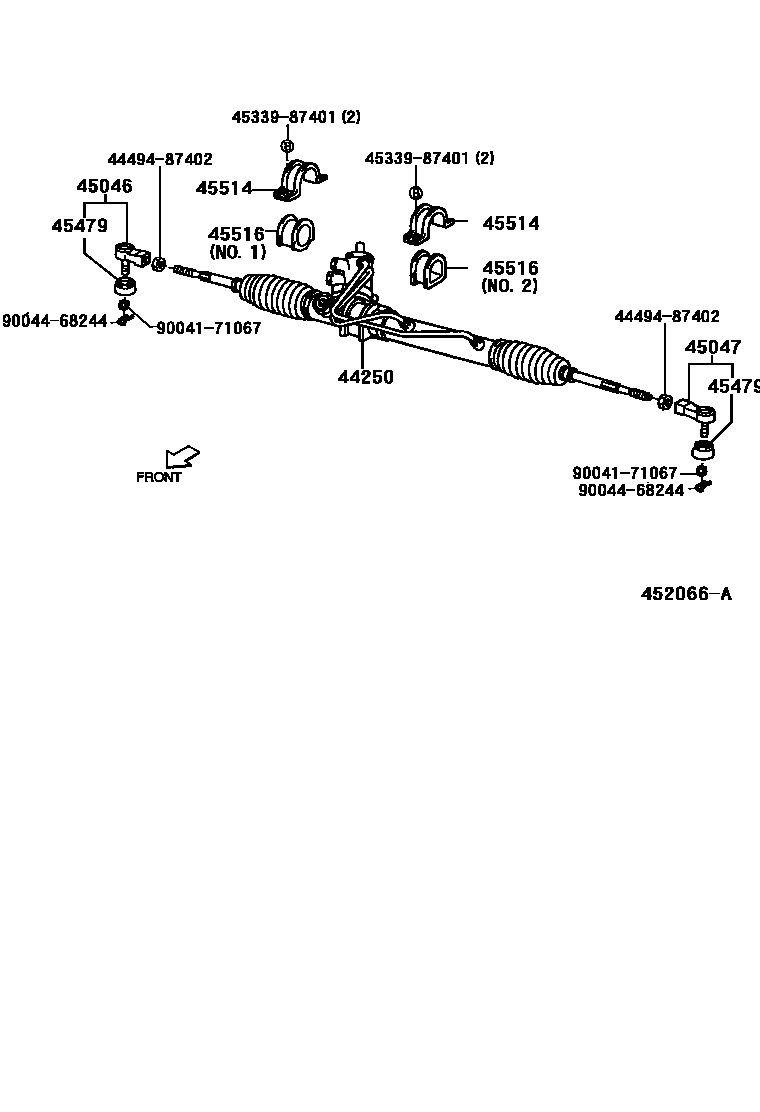

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44504-87404iJ10#,122199905-200112

45046END SUB-ASSY, TIE ROD, RH

main45046-87401iJ10#,122199905

45047END SUB-ASSY, TIE ROD, LH

main45046-87401iJ10#,122199905

45479SEAL, STEERING LINK JOINT DUST

main45479-87508×2iJ10#,122199905

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-87401×2iJ10#,122199905

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-87401iJ10#,122199905-200112

main45516-87402iJ10#,122199905-200112

4449487402

main44494-87402

4533987401BOLT, STEERING GEAR HOUSING

main45339-87401

9004171067

main90041-71067

9004468244

main90044-68244

10 parts on this diagram · 3 diagrams in section
