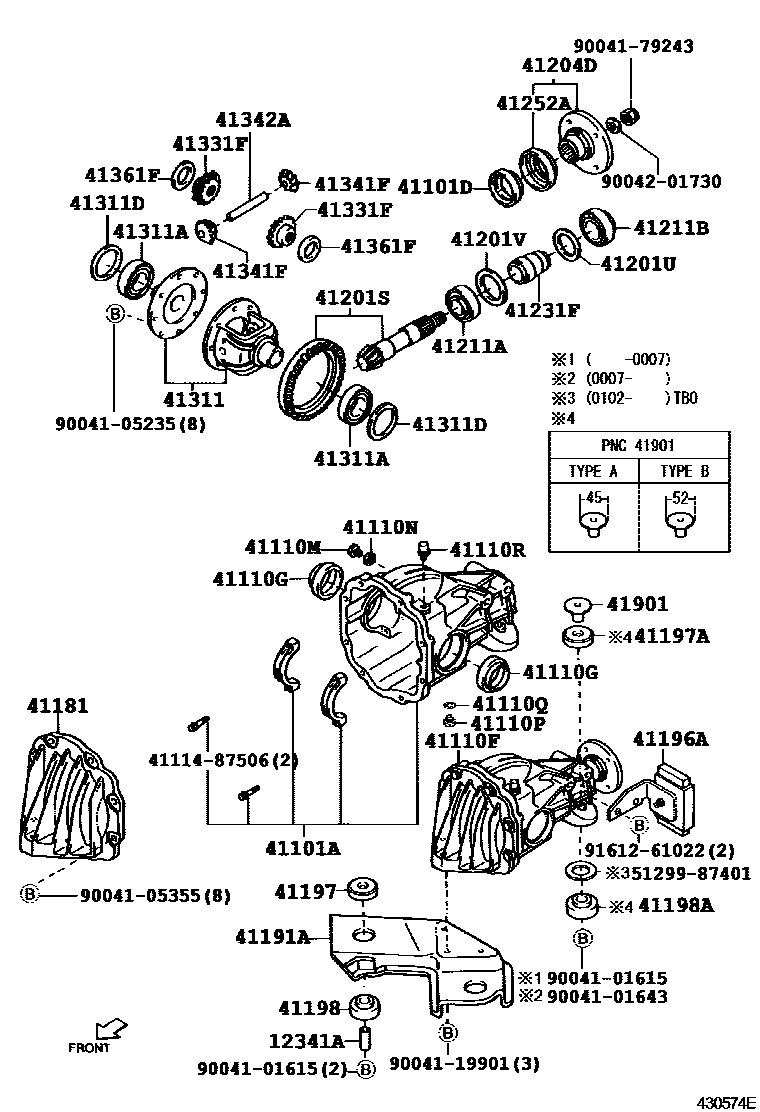

FRONT AXLE HOUSING & DIFFERENTIAL
12341ASPACER, FRONT DIFFERENTIAL MOUNTING
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41191ABRACKET, FRONT DIFFERENTIAL CARRIER SUPPORT
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
41197INSULATOR, FRONT DIFFERENTIAL MOUNTING UPPER, NO.1
41197AINSULATOR, FRONT DIFFERENTIAL MOUNTING UPPER, NO.2
41198INSULATOR, FRONT DIFFERENTIAL MOUNTING LOWER, NO.1
41198AINSULATOR, FRONT DIFFERENTIAL MOUNTING LOWER, NO.2
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41901SPACER, FRONT DIFFERENTIAL MOUNTING
4111487506BOLT, REAR DIFFERENTIAL BEARING CAP
main41114-87506
5129987401RETAINER, SPARE WHEEL
main51299-87401
9004101615
main90041-01615
9004101643
main90041-01643
9004105235
main90041-05235
9004105355
main90041-05355
9004119901
main90041-19901
9004179243
main90041-79243
9004201730
main90042-01730
9161261022
main91612-61022
43 parts on this diagram · 1 diagram in section
