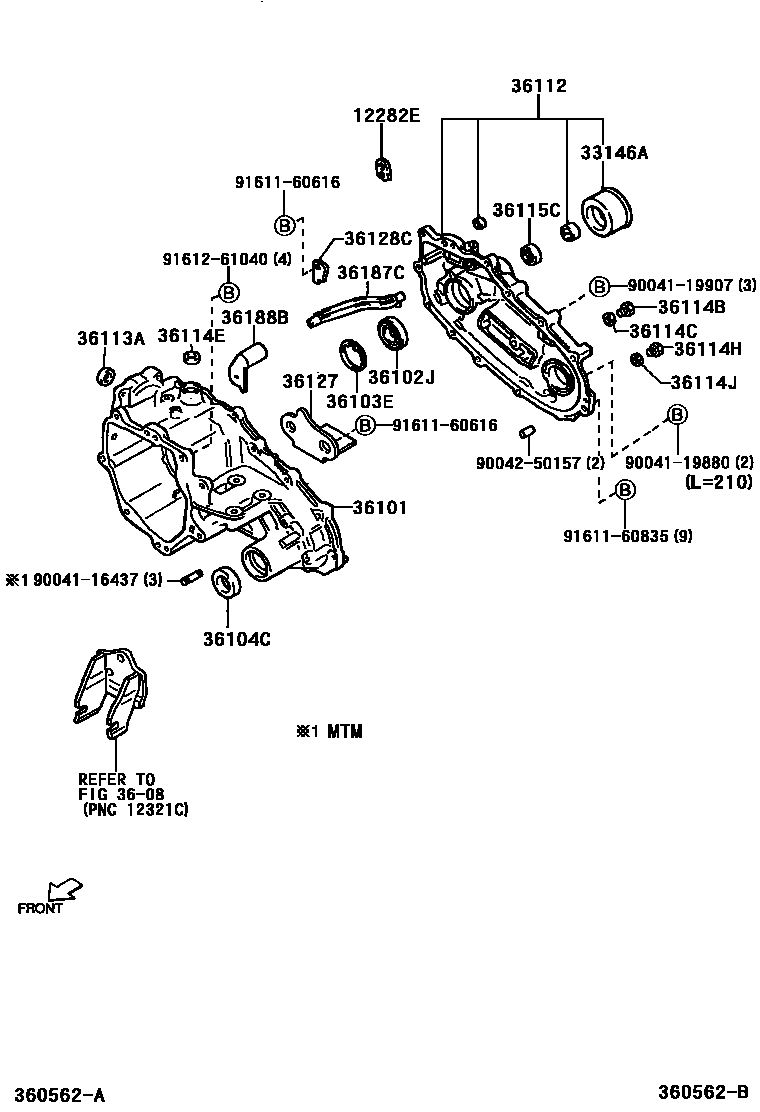

TRANSFER CASE & EXTENSION HOUSING

12282EHANGER, TRANSFER CASE

main12282-87501iK3V#,HCEJ..J10#199905

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-87401iJ100;J102..5F199905

main33146-87403iJ102..4AT..EFI200005

main33146-87404iJ102..TBO200008

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

36101CASE SUB-ASSY, TRANSFER

main36101-87401iJ10#..4AT199905-200412

main36101-87402iJ10#..5F199905-200412

main36103-87401iJ102..4AT200412

main36103-87402iJ102..5F200412

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main88364-87501iJ10#199905

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90045-21156iJ10#199905

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90043-11320iJ10#199905

36112CASE, TRANSFER, REAR

main36104-87401iJ10#..5F199905

main36104-87402iJ102..TBO200008

main36104-87403iJ102..4AT..EFI200005

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90043-11314iJ10#199905-200412

main90043-11362iJ102200412

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-16012iJ10#199905

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90044-30178iJ10#199905

36114ESEAL, OIL (FOR TRANSFER CASE LH)

main90043-13008iJ10#199905

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90043-41068iJ10#199905

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90044-30055iJ10#199905

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90043-11285iJ102..TBO200008

main90043-11309iJ10#..EFI199905

36127PLATE, TRANSFER OIL

main36127-87506iJ10#199905

36128CPLATE, TRANSFER OIL SUPPLY

main36128-87503iJ10#199905

36187CPIPE, TRANSFER OIL SUPPLY, RH

main36187-87502iJ10#199905

36188BPIPE, TRANSFER OIL SUPPLY, LH

main36188-87401iJ10#..4AT199905

main36188-87501iJ10#..5F199905-200405

main36188-B5010iJ102..5F200406

9004116437

main90041-16437

9004119880

main90041-19880

9004119907

main90041-19907

9004250157

main90042-50157

9161160616

main91611-60616

9161160835

main91611-60835

9161261040

main91612-61040

26 parts on this diagram · 1 diagram in section
