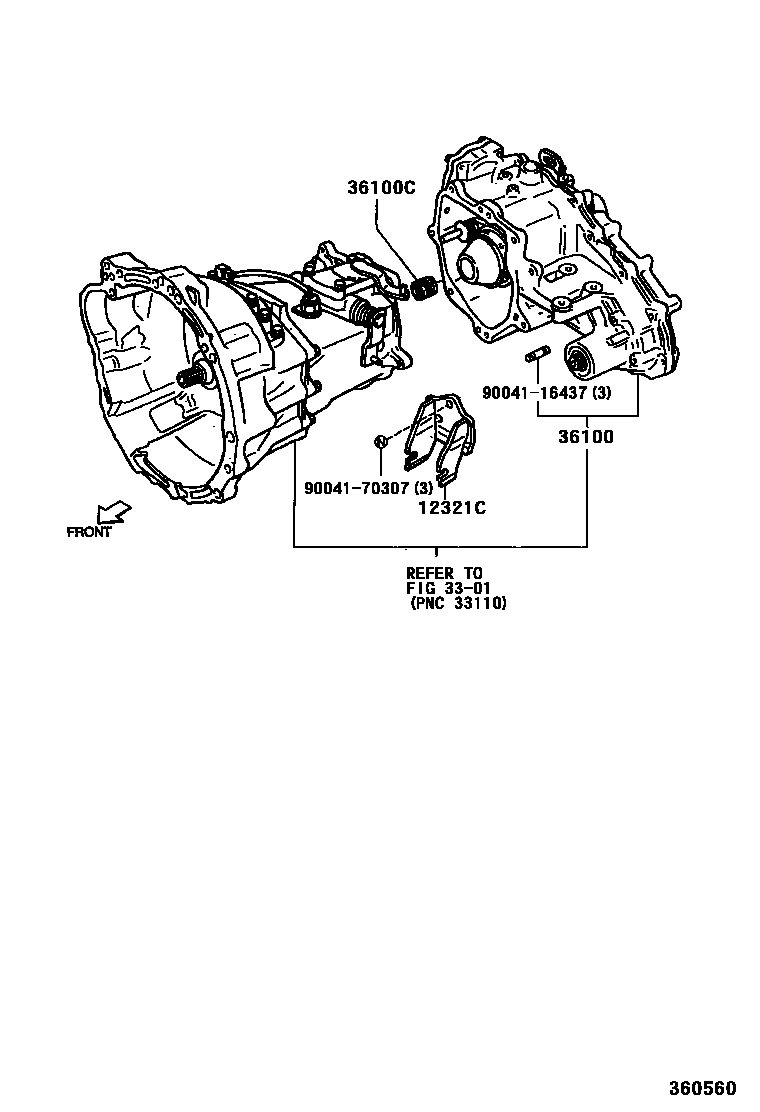

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1

12321CBRACKET, ENGINE MOUNTING, REAR

main12321-87402iHCEJ..J100199905-200005

main12321-87405iK3V#..J102200005

3301TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

→ Go to FIG 33-01

36100TRANSFER ASSY

main36110-87401iJ100..5F199905-200005

main36110-87403iJ100..4AT199905-200005

main36110-87408iJ102..4AT..EFI200005

main36110-87409iJ102..TBO200008

main36110-87411iJ102..5F200005

36100CBEARING, NEEDLE ROLLER(FOR TRANSFER)

main90043-64115iJ10#..5F199905

9004116437

main90041-16437

9004170307

main90041-70307

6 parts on this diagram · 2 diagrams in section
