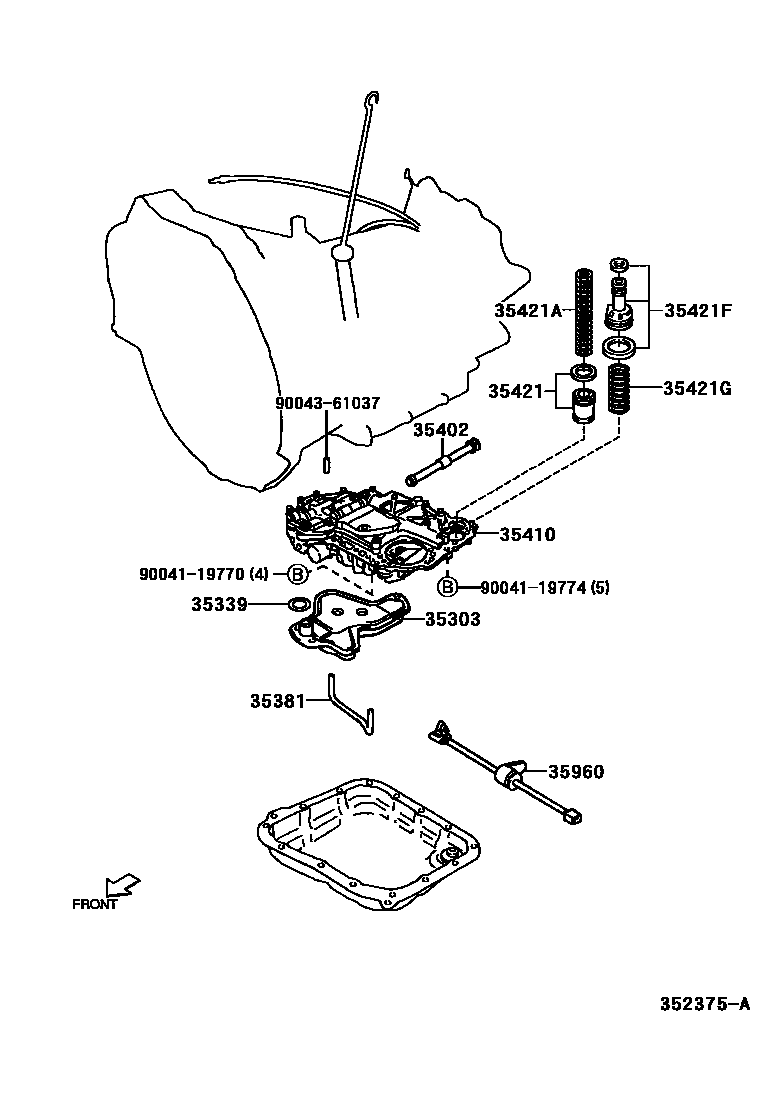

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1

35303STRAINER SUB-ASSY, OIL

main35303-87401iJ100..4AT199905-200005

main35303-97501iJ102,122..4AT200005

35339GASKET, OIL STRAINER

main96721-24020iJ100..4AT199905-200005

main96721-24021iJ102,122..4AT200005

35381TUBE, VALVE BODY

main35381-87402iJ100..4AT199905-200005

35402VALVE, MANUAL

main35402-97201iJ100..4AT199905-200005

35410BODY ASSY, TRANSMISSION VALVE

main35410-87404iJ100..4AT199905-200005

main35410-97206iJ102,122..4AT200005

35421PISTON, ACCUMULATOR, NO.1

main35440-87201iJ100..4AT199905-200005

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90045-01714iJ100..4AT199905-200005

35421FPISTON, ACCUMULATOR, NO.2

main35430-87201iJ100..4AT199905-200005

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90045-01715iJ100..4AT199905-200005

main90045-01801iJ102,122..4AT200005

35960WIRE, SOLENOID

main35960-87401iJ100..4AT199905-200005

main35960-97201iJ102,122..4AT200005-200009

main35960-97202iJ102,122..4AT200009-200010

main35960-97203iJ102,122..4AT200011

9004119770

main90041-19770

9004119774

main90041-19774

9004361037

main90043-61037

13 parts on this diagram · 2 diagrams in section
