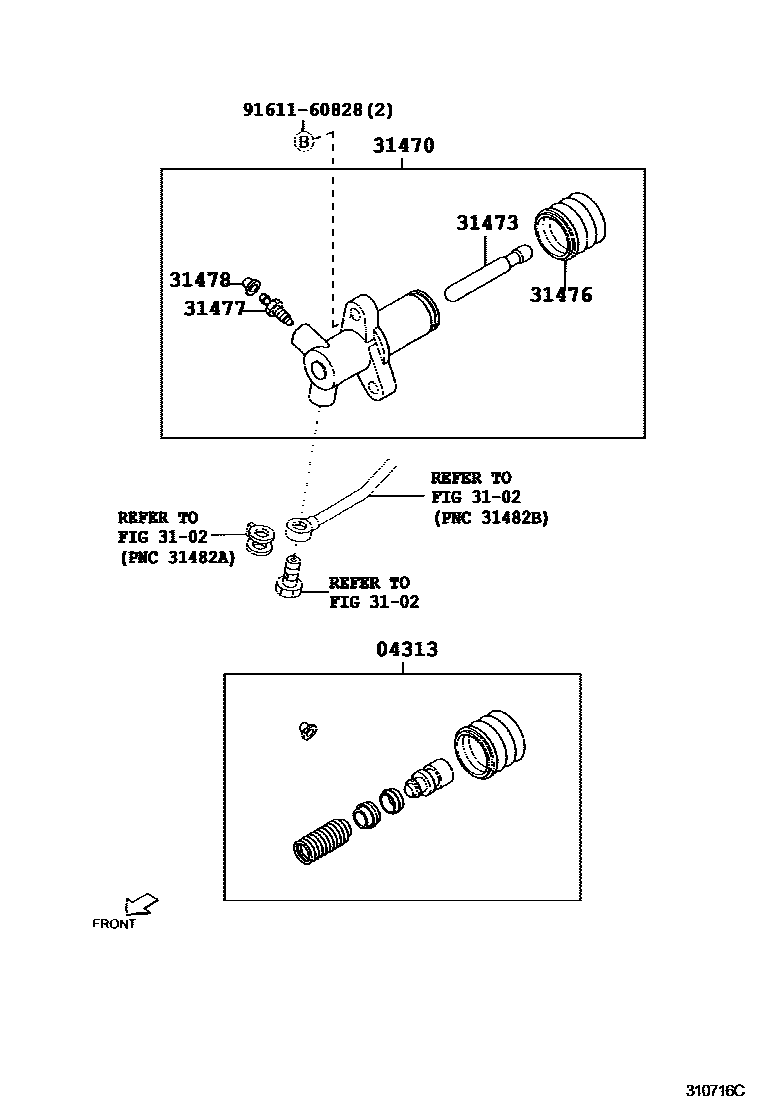

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-87401iJ102,122..5F200005

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-87401iJ102,122..5F200005

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60170iJ102,122..5F200005

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iJ102,122..5F200005

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJ102,122..5F200005

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJ102,122..5F200005

9161160828

main91611-60828

8 parts on this diagram · 1 diagram in section
