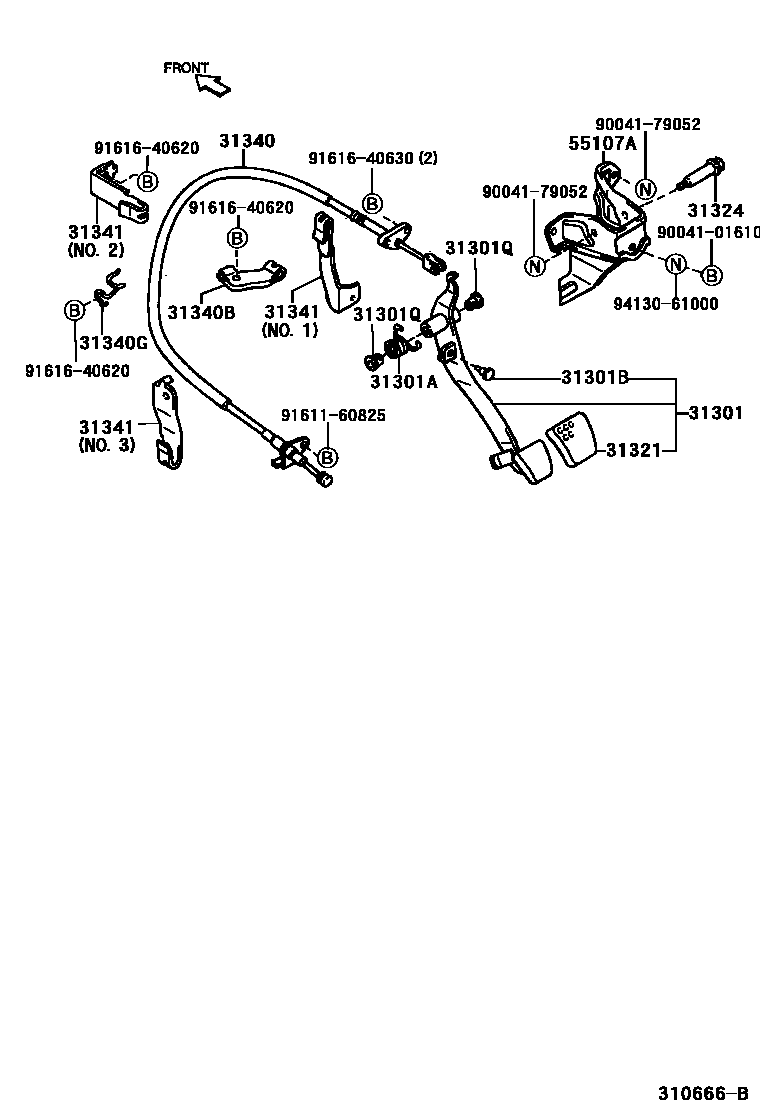

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-87406iJ100..5F199905-200005

main31310-87409iJ102,122..5F200005-200112

main31310-87415iJ102,122..5F200112

31301ASPRING(FOR CLUTCH PEDAL)

main47648-87401iJ100..5F199905-200005

main47648-87404iJ102,122..5F200005-200112

main47648-87405iJ102,122..5F200112

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90045-40158iJ100..5F199905-200005

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90043-86070×2iJ10#,122..5F199905

31321PAD, CLUTCH PEDAL

main31321-87701iJ10#,122..5F199905

31324SHAFT, CLUTCH PEDAL

main31324-87401iJ100..5F199905-200005

main31324-87403iJ102,122..5F200005

31340CABLE ASSY, CLUTCH RELEASE

main31340-87405iJ100..5F199905-200005

31340BCLAMP(FOR CLUTCH RELEASE CABLE)

main31341-87405iJ100..5F199905-200005

31340GCLIP(FOR CLUTCH RELEASE CABLE)

main31341-87406iJ100..5F199905-200005

31341BRACKET, CLUTCH CABLE

main31341-87401iJ100..5F199905-200005

main31341-87402iJ100..5F199905-200005

main31341-87407iJ100..5F199905-200005

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-87401iJ100..5F199905-200005

main55107-87403iJ102,122..5F200005-200112

main55107-87406iJ102,122..5F200112

9004101610

main90041-01610

9004179052

main90041-79052

9161160825

main91611-60825

9161640620

main91616-40620

9161640630

main91616-40630

9413061000

main94130-61000

17 parts on this diagram · 3 diagrams in section
