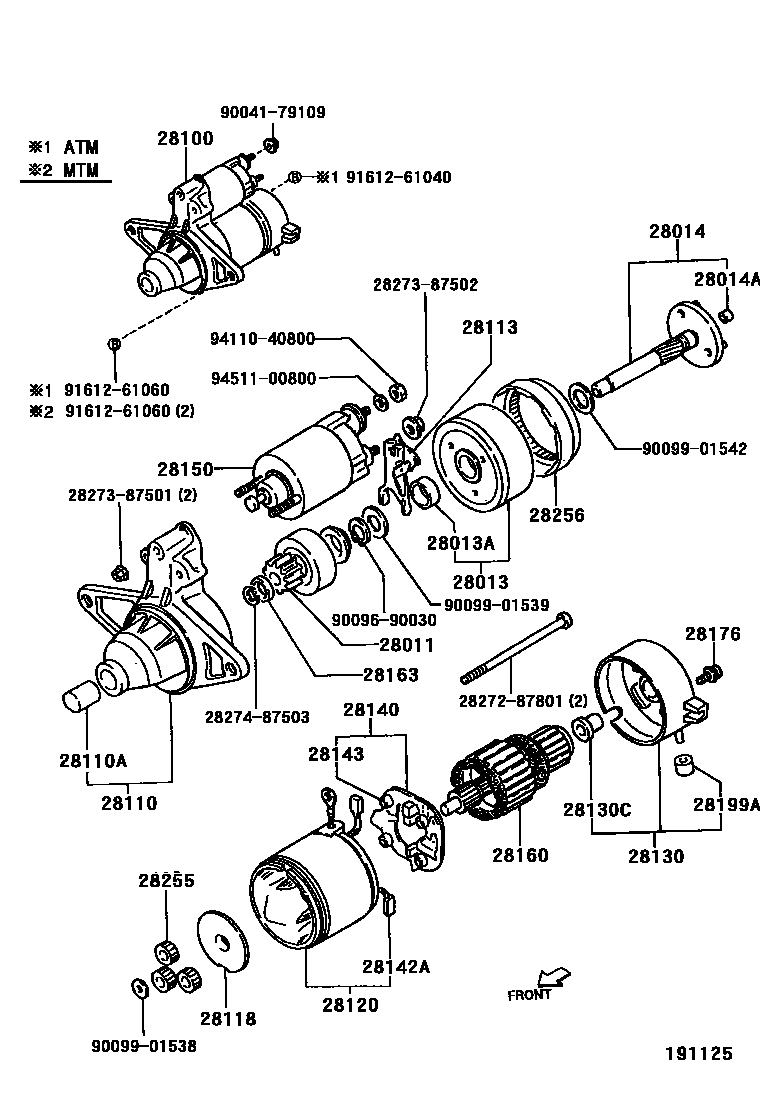

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 0.8KW
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
12V 0.8KW
12V 1.0KW
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
12V 0.8KW
28118PLATE(FOR STARTER YOKE)
28120YOKE ASSY, STARTER
12V 1.0KW
12V 1.0KW
12V 0.8KW
28130FRAME ASSY, STARTER COMMUTATOR END
12V 1.0KW
12V 0.8KW
28130CBEARING, STARTER FLANGE
12V 0.8KW
28140HOLDER ASSY, STARTER BRUSH
12V 0.8KW
28142ASTARTER KIT
12V 0.8KW
28143SPRING, STARTER BRUSH
12V 0.8KW
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
12V 0.8KW
12V 1.0KW
28163NUT OR COLLAR, PINION STOP, STARTER
12V 0.8KW
28176SCREW, STARTER
12V 1.0KW
28199APROTECTOR, DUST STARTER
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
2827287801
main28272-87801
2827387501
main28273-87501
2827387502
main28273-87502
2827487503SNAP RING, STARTER, NO.1
main28274-87503
9004179109
main90041-79109
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9161261040
main91612-61040
9161261060
main91612-61060
9411040800
main94110-40800
9451100800
main94511-00800
36 parts on this diagram · 3 diagrams in section
