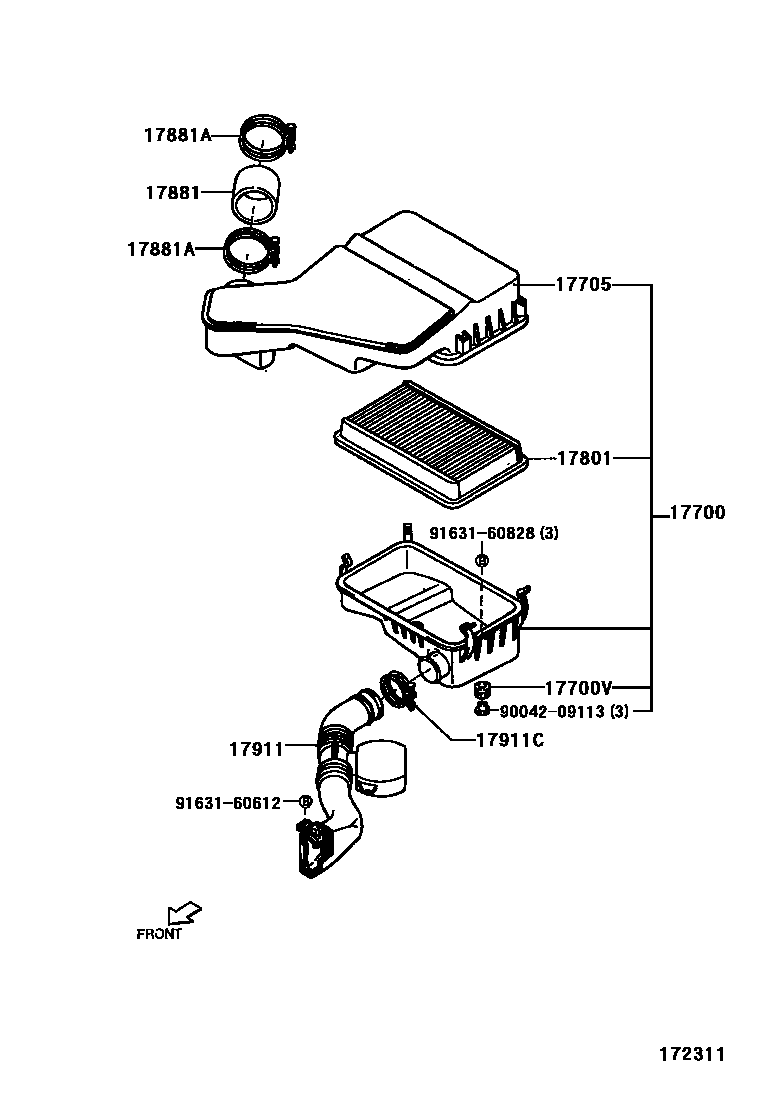

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-87401iHCEJ..J100199905-200005

main17700-87403iK3VE..J102,122..EFI200005-200512

main17700-87404iK3VE..J102..TBO200008-200512

17700VBUSH(FOR AIR CLEANER)

main90044-80489×3iHCEJ..J100199905-200005

17705CAP SUB-ASSY, AIR CLEANER

main17705-87401iHCEJ..J100199905-200005

main17705-87403iK3VE..J102,122..EFI200005-200512

main17705-87404iK3VE..J102..TBO200008-200512

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-87104iK3VE..J102..TBO200008-200512

main17801-87401iHCEJ..J100199905-200005

main17801-87402iK3VE..J102,122..EFI200005-200512

17881HOSE, AIR CLEANER, NO.1

main17881-87403iK3VE..J102,122..EFI200005-200512

main17881-87404iK3VE..J102..TBO200008-200512

main17881-87723iHCEJ..J100199905-200005

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90044-67356×2iHCEJ..J100199905-200005

main90044-67484iK3VE..J102..TBO200008-200512

main90044-68277iK3VE..J102..TBO200008-200512

17911DUCT, COOL AIR INTAKE, NO.1

main17963-87401iHCEJ..J100199905-200005

17911CCLAMP, COOL AIR INTAKE DUCT, NO.1

main96111-10690iHCEJ..J100199905-200005

9004209113

main90042-09113

9163160612

main91631-60612

9163160828

main91631-60828

11 parts on this diagram · 4 diagrams in section
