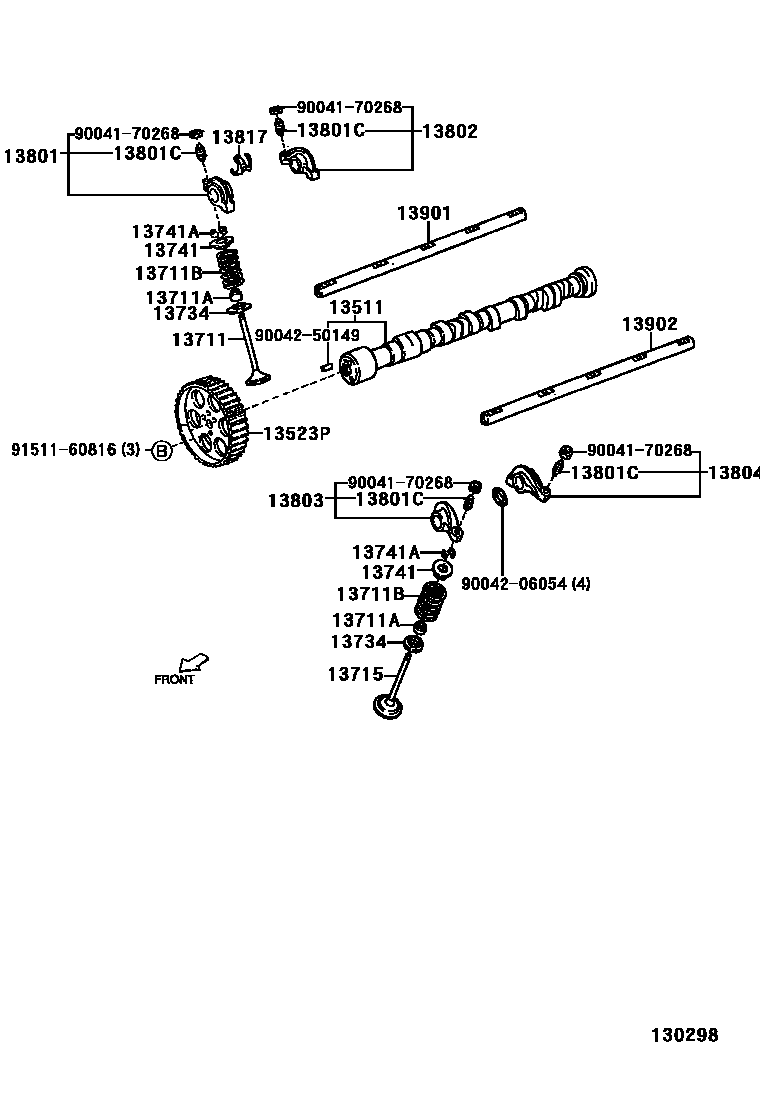

CAMSHAFT & VALVE
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801CSCREW, VALVE ADJUSTING
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13803ARM SUB-ASSY, VALVE ROCKER, NO.3
13804ARM SUB-ASSY, VALYE ROCKER, NO.4
13817SPACER, VALVE ROCKER ARM
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
9004170268
main90041-70268
9004206054
main90042-06054
9004250149
main90042-50149
9151160816
main91511-60816
22 parts on this diagram · 3 diagrams in section
