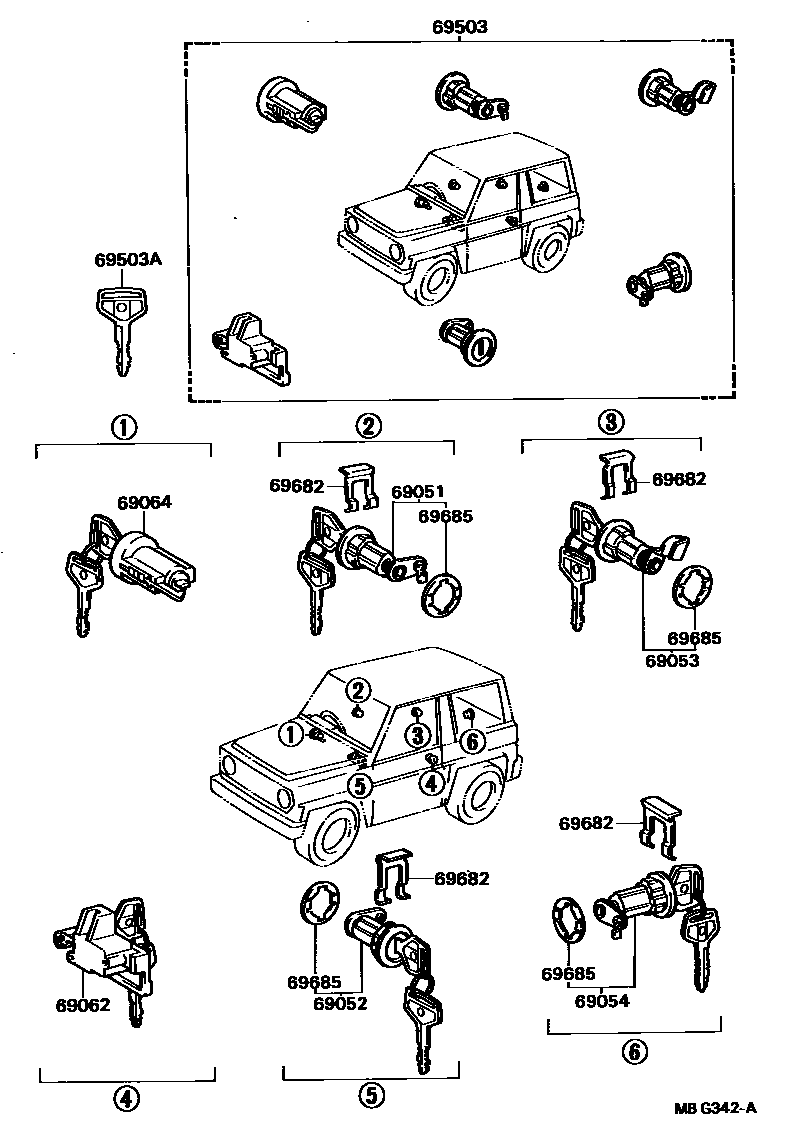

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87605iLD2#198405-199002

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87603iLD2#198405-199002

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-87603iLD2#198405-199002

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69051-87605iLD2#198405-199002

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-87603iLD20..TP198405-198911

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-87602iLD2#198405-199002

69503CYLINDER SET, LOCK

main69005-87607iLD2#..V,WG198405-199002

main69005-87608iLD20..TP198405-198911

69503AKEY, BLANK

main90999-00066iLD2#198405-199002

sub90999-00085

69682RETAINER, LOCK CYLINDER

main69682-87607iLD2#198602-199002

main69682-87701iLD2#198405-198602

sub69682-87607

69685PAD, LOCK CYLINDER

main69513-32010iLD2#198405-199002

10 parts on this diagram · 1 diagram in section
